TCG057VGLCCANN-GN00

Size:

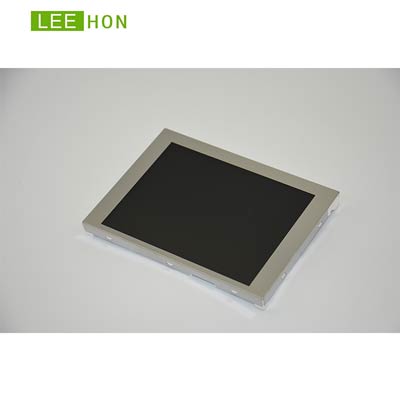

Kyocera 5.7 Inch 640x480 VGA LCD Panel TFT RGB Screen TCG057VGLCCANN-GN00 for industry

  • TCG057VGLCCANN-GN00
  • Module No:TCG057VGLCCANN-GN00
  • Brand:Kyocera
  • Size:5.7 inch
  • Resolution:640(RGB)×480 , VGA
  • Brightness:250 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:Parallel RGB (1 ch, 6-bit) , 40 pins
  • CR:500:1
  • Operating Temp.: -30 ~ +70 (°C)
  • Kyocera 5.7 inch tft lcd panel TCG057VGLCCANN-GN00 with 640(RGB)x480 VGA resolution, brightness 250 cd/m². This lcd display's working temperature is -30 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Industrial 5.7 Inch 640*480 VGA LCD Panel Original Kyocera 5.7" TFT LCD Screen TCG057VGLCCANN-GN00 with 250nits and RGB interface.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
