Electromagnetic Analyzer Screen Selection and Solution: AUO G101EVN01.0 Evaluation and Alternative Solution Proposal

2025-05-23 11:35

Report Issued By: Hangzhou LEEHON Technology Co.,Ltd.

I. Executive Summary

This report aims to provide customers in the industrial instrumentation sector, particularly for electromagnetic analyzer applications, with a comprehensive evaluation of the AU Optronics (AUO) G101EVN01.0 10.1-inch LCD screen and to propose superior alternative solutions. The client's core concerns are stable performance and long-term supply of the display screen.

Through in-depth analysis, while the AUO G101EVN01.0 possesses basic display characteristics suitable for industrial environments, it has missing or insufficient data regarding key long-term reliability indicators (such as backlight lifetime) and core anti-vibration and anti-shock specifications. More importantly, this model was launched relatively early, and the stability of its long-term supply faces significant uncertainty, posing a considerable risk for industrial equipment requiring long lifecycle support.

Given this, this report will focus on introducing new-generation industrial-grade display screens from leading manufacturers such as BOE, distributed by Hangzhou LEEHON Technology Co.,Ltd. These alternatives demonstrate clear advantages in brightness, operating temperature range, backlight lifetime, and design novelty, better ensuring the stable performance and supply chain security of the client's products throughout their lifecycle.

We preliminarily recommend considering models such as BOE EV101WXM-N10 as more reliable options and advise clients to carefully review the analysis in this report and consult in-depth with the professional team at Hangzhou LEEHON Technology to ultimately determine the display solution that best meets their electromagnetic analyzer needs.

II. Introduction: Stringent Requirements for Display Screens in Electromagnetic Analyzers

Electromagnetic analyzers, as precision measurement devices, impose far stricter standards on the selection of integrated display screens than consumer products, due to their application scenarios and functional characteristics. These requirements not only pertain to visual presentation but also directly impact the overall performance, reliability, and service life of the instrument.

Uniqueness of the Industrial Instrumentation Environment: Electromagnetic analyzers may be deployed in various environments such as factory floors, outdoor field sites, or standard laboratories. These environments are often accompanied by significant temperature fluctuations, airborne dust particles, and potential mechanical vibrations and shocks.^^ Therefore, the display screen must possess sufficient durability to ensure continuous and stable operation under complex working conditions.^^

Multi-dimensional Considerations for Performance Stability: For precision measuring instruments, the performance stability of the display screen is crucial, encompassing the following aspects:

• Consistency: Throughout its operational life, the display screen must accurately and consistently present measurement data and waveforms.
• Reliability: Core components (especially the backlight system) should have a high Mean Time Between Failures (MTBF), and the overall structural design must be robust to minimize failure rates.
• Long-term Performance: Not only must the initial performance meet standards, but the specifications must also remain stable over a service life of several years.

Environmental Tolerance:

• Wide Operating Temperature Range: Electromagnetic analyzers may be used in environments lacking strict temperature control, so the display screen must support a wide operating temperature range to adapt to deployment needs in different regions and seasons.^^
• Anti-vibration and Anti-shock: For portable or vehicle-mounted instruments, as well as instruments installed near large machinery, the display screen's resistance to vibration and shock is key to ensuring its structural integrity and normal functionality. The lack of clear vibration and shock specification parameters introduces undeniable risks to product design.^^
• Protection Rating: Although the display module itself usually does not have a high protection rating, its structural design should facilitate its integration by the customer into a complete machine casing with the appropriate dust and water resistance level (IP rating).^^

Electromagnetic Compatibility (EMC/EMI) – Core Consideration: Electromagnetic analyzers operate in complex electromagnetic environments, being both sensitive to external electromagnetic interference and potentially generating electromagnetic radiation themselves. Therefore, the EMC of the display screen is one of the core factors determining whether the instrument can operate accurately and stably.^^

• Electromagnetic Interference (EMI): The electromagnetic radiation generated by the display screen itself must be low enough to avoid interfering with the instrument's internal high-sensitivity measurement circuits and sensors, ensuring the purity of measurement results.^^ If the display screen becomes an EMI radiation source, the noise signals it generates could be captured by the instrument, leading to reading errors or a deteriorated signal-to-noise ratio.** **
• Electromagnetic Susceptibility (EMS): The display screen must be able to resist interference from electromagnetic fields generated by other internal components of the instrument or the external environment, maintaining normal operation and avoiding phenomena such as flickering, image distortion, or freezing.^^ When the instrument is analyzing strong electromagnetic fields, if the display screen's own immunity is insufficient, its display function may be affected or even damaged.** **
• Relevant Standards: Industrial equipment typically needs to comply with specific EMC standards, such as EN55011 for Industrial, Scientific, and Medical (ISM) equipment, or US FCC Part 15/18.^^ As a key component, the display screen's EMC performance directly affects the overall compliance of the machine. For electromagnetic analyzers, the EMC/EMI performance of the display screen is not a general requirement but a fundamental prerequisite for ensuring its core function – the precise measurement of electromagnetic parameters. If the display screen has defects in this regard, it could directly lead to instrument measurement failure or inaccurate results.** **

Readability and Visual Performance:

• Resolution and Clarity: For a 10.1-inch screen, a resolution like 1280x800 (WXGA) can clearly display complex spectrum graphs, waveform details, and various parameter data.^^
• Brightness and Contrast: It must ensure clear readability of screen content under different ambient light conditions. For instruments that may be used outdoors or in strong light conditions, higher brightness or displays with sunlight-readable features should be considered.^^
• Viewing Angle: Using wide-angle technologies such as MVA or IPS can ensure that operators can accurately observe screen information from different angles and positions, improving the instrument's operational flexibility.^^

Long-Term Supply and Lifecycle Management: Industrial equipment typically has a long service life and market lifecycle. As a core component, the display screen supplier's long-term supply commitment and clear End-of-Life (EOL) policy are crucial to avoid costly complete machine redesigns due to component discontinuation.^^

Human-Machine Interface: Although the G101EVN01.0 that the customer is interested in is a non-touch screen, in modern industrial instrument design, touch screens (especially capacitive ones) are increasingly popular due to their intuitive and convenient operation, particularly in scenarios where operators may wear gloves.^^ When evaluating alternative solutions, touch functionality can be considered as a potential value-added feature. The display screen needs to clearly and efficiently present complex graphical and numerical information commonly found in electromagnetic analysis.^^

III. In-depth Analysis of AU Optronics (AUO) G101EVN01.0

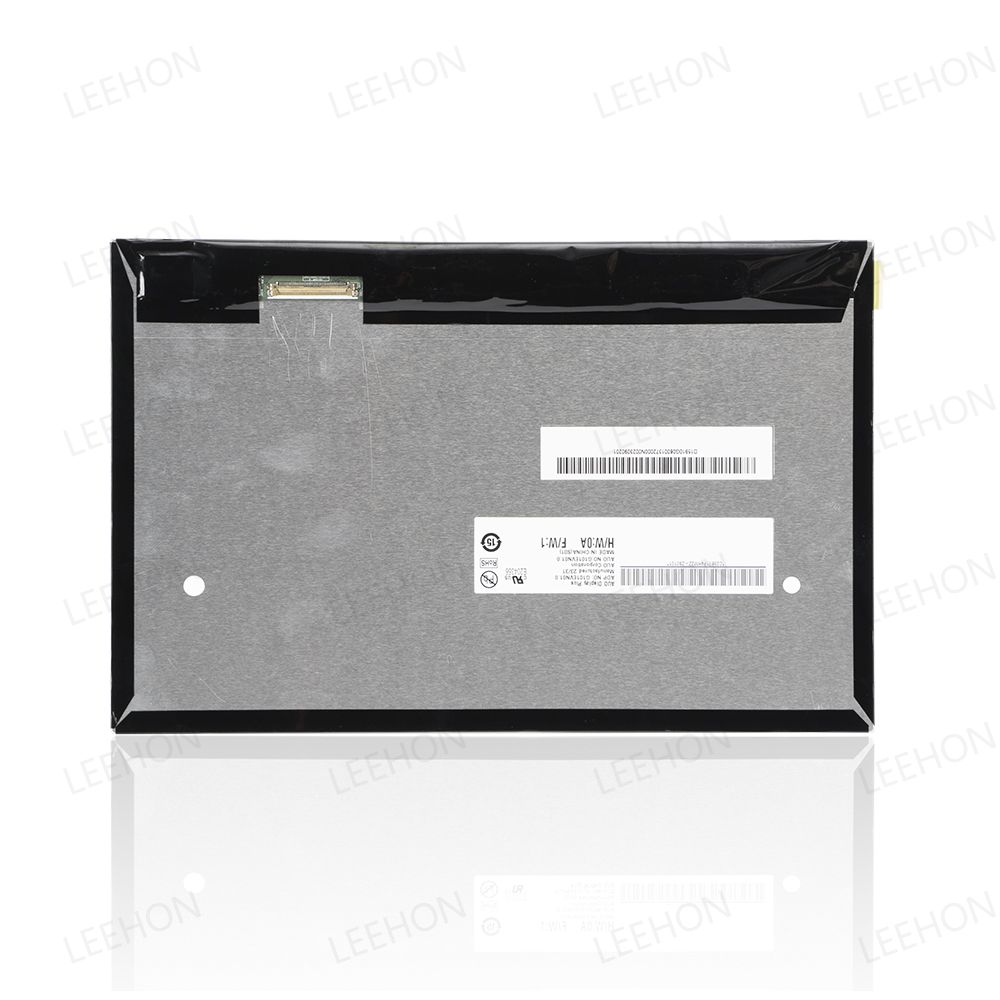

The AUO G101EVN01.0 is a 10.1-inch MVA-type TFT-LCD module with a WXGA (1280x800) resolution, primarily targeting industrial applications.

Detailed Specifications (Compiled from ^^):

• Display Size: 10.1 inches
• Resolution: 1280x800 pixels (WXGA), 149 PPI
• Panel Type: MVA (Multi-domain Vertical Alignment), Normally Black, Transmissive
• Brightness: 300 cd/m² (Typical)
• Contrast Ratio: 1300:1 (Typical)
• Viewing Angle: 170°(H)/170°(V) or 85/85/85/85 (CR≥10)
• Number of Colors: 262K (6-bit)
• Interface Type: LVDS (1 channel, 6-bit), 40-pin connector (JAE HD1S040HA1 ^^)** **
• Backlight Type: WLED, built-in LED driver
• Backlight Lifetime (MTBF): 15,000 hours (Typical) ^^
• Operating Temperature: -20°C to +60°C (Most sources agree ^^; ^^ mentions 0 to +60°C)** **
• Storage Temperature: -30°C to +70°C ^^
• Surface Treatment: Hard coating (3H), Anti-reflection treatment ^^
• Panel Power Consumption (Logic): Approx. 0.56W - 0.8W ^^
• Backlight System Power Consumption: 2.6W ^^ / Total typical power consumption 3.4W ^^
• Logic Input Voltage: 3.3V (Typical)
• Outline Dimensions: 229.46 x 149.2 x 4.96 mm ^^
• Weight: 187g (Typical/Max) ^^
• Touch Function: None ^^

Performance and Applicability Assessment for Electromagnetic Analyzers:

• Visual Quality: MVA technology provides wide viewing angles and good contrast, suitable for displaying complex test data and graphics. A brightness of 300 cd/m² is sufficient for most indoor industrial environments but may be inadequate in strong ambient light or outdoor conditions.
• Operating Temperature: The -20°C to +60°C operating temperature range meets the needs of many standard industrial applications. However, some newer alternative models offer wider temperature ranges, giving devices greater environmental adaptability.
• Backlight Lifetime: A backlight lifetime of 15,000 hours is a significant limitation for instruments expected to have a long service life or require long periods of continuous operation. This equates to less than 1.8 years of 24/7 continuous operation before its brightness may decay to half its initial value. This relatively short backlight lifetime directly impacts the long-term "performance stability" of the instrument. If the backlight or the entire display needs premature replacement, it will undoubtedly increase the product's Total Cost of Ownership (TCO). This is particularly critical given the customer's focus on stable performance. For precision instruments expected to be used for many years, a 15,000-hour backlight could be the first major component to show significant aging, affecting user experience and potentially leading to premature repair needs.
• Vibration and Shock Resistance:
  • Critical Data Missing: Multiple sources ^^ indicate that the vibration specification parameters for G101EVN01.0 are not provided (marked as "-") or are missing. No clear shock resistance data could be found in the available documentation.** **
  • Potential Impact: Using this display screen in any environment that may subject it to mechanical stress carries reliability risks in the absence of manufacturer-guaranteed vibration and shock specifications. Electromagnetic analyzers, especially portable or field-deployed types, have explicit requirements for robustness.
  • This lack of data is a major drawback for an industrial-grade component and a significant potential hazard in the customer's application. This contrasts sharply with some alternative products that explicitly provide these specifications (e.g., Innolux G101ICE series can withstand 1.5G vibration ^^). Industrial instruments often face mechanical stress, and vibration or shock can lead to display failure (e.g., connection issues, physical damage). Due to the lack of official vibration/shock data for the AUO G101EVN01.0 in public information, customers would have to assume risks, conduct costly self-verification tests, or choose panels with clear ruggedness specifications, which undoubtedly weakens the assurance of its "stable performance."** **
• EMC/EMI Characteristics: No specific EMC/EMI compliance information or related shielding design features for the G101EVN01.0 are mentioned in the available public documentation. Considering the extreme sensitivity of electromagnetic analyzers to EMC/EMI, this lack of information is another issue requiring high attention. The customer would need to independently ensure that this display screen or its integrated solution can meet stringent electromagnetic compatibility standards.

Applicability Summary for Electromagnetic Analyzers:

• Potential Advantages: Standard WXGA resolution, wide viewing angles from MVA technology.
• Significant Concerns:
  • Relatively low backlight MTBF (15,000 hours).
  • Severe lack of official anti-vibration and anti-shock specification data.
  • Lack of specific EMC/EMI compliance data.
  • Extremely high long-term supply risk due to the product's age.
• Conclusion: Based on currently available public data, the AUO G101EVN01.0 poses significant risks when used in new electromagnetic analyzer designs, especially concerning long-term performance stability and supply assurance.

IV. Alternative Display Solutions Recommended by Hangzhou LEEHON Technology Co.,Ltd.

Introduction to Hangzhou LEEHON Technology Co.,Ltd. (LEEHON): Hangzhou LEEHON Technology is a leading authorized distributor of LCD modules, having established solid cooperative relationships with major LCD manufacturers such as BOE, AUO, Kyocera, Innolux, Tianma, and IVO.^^ This qualification ensures that we can provide customers with original authentic products, direct technical support from the original factory, and reliable supply chain information. Founded in 2009, the company specializes in the supply of industrial-grade (GD), automotive-grade (AV), and general-purpose (PID) display products, with sizes ranging from 2.5 to over 43 inches.^^ LEEHON Technology is committed to providing original factory quality assurance, excellent after-sales service, competitive prices, and can assist customers in solving technical problems.^^ We can offer total display solutions including TFT LCD screens, touch screens, driver boards, cables, and open-frame structures.^^

Key Recommendation: BOE Industrial Grade Display Screens – A More Powerful Alternative

• BOE's Advantages: As a world-leading display panel manufacturer, BOE offers a wide range of industrial-grade display screens known for their high reliability, technological innovation, and long-term commitment to the industrial market. This means their newer models have better prospects for long-term supply.
• Recommended BOE Model (Example): EV101WXM-N10

  • Overview: This is a 10.1-inch ADS (Advanced Super Dimension Switch, a technology with performance similar to IPS) TFT-LCD, WXGA (1280x800) resolution, designed specifically for industrial and medical applications [^^, ^^, ^^2, ^^9, ^^].** **

  • Key Specifications (Sourced from [^^, ^^, ^^2, ^^9, ^^]):

    • Display Size: 10.1 inches
    • Resolution: 1280x800 pixels (WXGA), 149 PPI
    • Panel Type: ADS, Normally Black, Transmissive
    • Brightness: 400 cd/m² (Typical)
    • Contrast Ratio: 900:1 (Typical)
    • Viewing Angle: 85/85/85/85 (Typical) (CR≥10)
    • Number of Colors: 16.7M (6-bit + Hi-FRC or 8-bit)
    • Interface Type: LVDS (1 channel, 8-bit), 40-pin connector
    • Backlight Type: WLED, with LED driver
    • Backlight Lifetime (MTBF): 30,000 hours (Typical) [^^, ^^]** **
    • Operating Temperature: -20°C to +70°C [^^, ^^, ^^2, ^^9, ^^]** **
    • Storage Temperature: -30°C to +70°C (Some sources indicate EV101WXM-N10 storage temperature is -30~70°C, which is fairly consistent)
    • Power Consumption: Approx. 4.2W (Max) ^^
    • Logic Input Voltage: 3.3V (Typical)
    • Outline Dimensions: 228.6 x 149.2 x 6.0 mm (Typical thickness)2, ^^9, ^^][^^]** **
    • Weight: 175g ±20g2, ^^9, ^^]** **
    • Touch Function: None (LEEHON Technology can match capacitive or resistive touch screens as needed ^^)** **
    • Datasheet Release Date: Rev.0 version released on June 20, 2020, much newer than AUO G101EVN01.0.

  • Performance Advantages over AUO G101EVN01.0:

    • Higher Brightness: 400 nits vs. 300 nits (better visual effect).
    • Wider Operating Temperature: Upper limit up to +70°C vs. +60°C (stronger environmental tolerance).
    • Double Backlight Lifetime: 30,000 hours vs. 15,000 hours (significantly improved long-term performance and reliability).
    • Newer Design: 2020 model vs. 2013-2016 model (better long-term supply prospects).

  • EV101WXM-N10 Vibration, Shock, and EMC Data:

    • These parameters were not explicitly found in the currently provided materials.
    • Important Note: Hangzhou LEEHON Technology, as an authorized distributor of BOE ^^, has direct channels to obtain complete datasheets and specific reliability test data (including vibration, shock, EMC compliance reports) from BOE. This is a critical step for a comprehensive evaluation of this model. Typically, BOE's industrial-grade products include such testing. The BOE EV101WXM-N10 performs well in major specifications; its main current information gap is the lack of specific data on vibration, shock, and EMC in public information. As an authorized distributor, LEEHON Technology is capable of and should obtain this missing critical data for the customer to provide a complete evaluation basis, which is itself a value-added service provided by LEEHON Technology.** **

  • Long-Term Supply (BOE EV101WXM-N10): As a newer model launched by a major manufacturer like BOE in 2020, the EV101WXM-N10 offers far better long-term supply assurance than the older AUO panel. LEEHON Technology can further confirm BOE's typical lifecycle policy for such industrial panels with the customer.

Other Feasible Alternative Solutions in LEEHON Technology's Product Portfolio:

• Innolux G101ICE-L01 / G101ICE-LH1:
  • Common Features: 10.1-inch, 1280x800 resolution, IPS/AAS technology (wide viewing angle), LVDS interface, ​50,000 hours backlight lifetime​, **anti-vibration specification: 1.5G (14.7 m/s²)**1, ^^7, ^^].** **
  • G101ICE-L01: Brightness 500 nits, operating temperature -20~70°C.^^
  • G101ICE-LH1: Brightness 500 nits, operating temperature -30~80°C.
  • The Innolux G101ICE series, especially the LH1 model, performs excellently in terms of brightness, extremely wide operating temperature range, ultra-long backlight lifetime, and the crucial ​explicit anti-vibration specification​, making it a strong contender for industrial instruments. Its 1.5G anti-vibration rating is tangible reliability data often missing from basic datasheets. Customers need stable performance and long-term supply; the Innolux G101ICE-LH1 offers a 50,000-hour backlight lifetime (far exceeding AUO's 15,000 hours and also better than BOE EV101WXM-N10's 30,000 hours), an operating temperature of -30~80°C (wider than AUO and BOE ranges), and a 1.5G vibration specification. This vibration specification directly compensates for the lack of this data in the AUO model and the current BOE model. If LEEHON Technology can effectively supply this model, it would be a highly attractive alternative.
• Tianma NL12880BC16-02F:
  • Specifications: 10.1-inch, 1280x800 resolution, SFT (IPS-like technology), LVDS interface, ​brightness up to 1000 nits​, ​operating temperature -40~85°C​, ​backlight lifetime up to 70,000 hours​, official PDF datasheet notes "Anti-vibration design"5, ^^].** **
  • This Tianma model performs exceptionally well in almost all key industrial parameters such as brightness, operating temperature range, and backlight lifetime. The "Anti-vibration design" description comes from the official datasheet ^^ and has considerable credibility; obtaining specific G-value tolerance data would be even better. Its extremely wide operating temperature range (-40 to +85°C) allows it to adapt to the most demanding application environments. If the application environment is particularly harsh or requires very high brightness, and the cost is acceptable, this could be one of the best technical choices.** **
• Note on other Tianma models P1010WXF1MA01 and P1010WXF1MB10: These two models are currently listed as "in development" ^^ and are therefore not suitable for immediate selection, but they indicate Tianma's continued investment in this specification area.** **

Preliminary Comparison Table Suggestion (Place at the end of this section or the beginning of the next): The following table briefly compares the key differentiating features of BOE EV101WXM-N10, Innolux G101ICE-LH1, and Tianma NL12880BC16-02F with AUO G101EVN01.0. The focus is on brightness, operating temperature, backlight MTBF, anti-vibration specifications (if available), and datasheet/product launch year. This table aims to quickly demonstrate why these alternatives are recommended and reflects LEEHON Technology's ability to offer superior choices.

Feature	AUO G101EVN01.0	BOE EV101WXM-N10	Innolux G101ICE-LH1	Tianma NL12880BC16-02F
Brightness (cd/m²)	300	400	500	1000
Operating Temp. (°C)	-20 ~ +60	-20 ~ +70	-30 ~ +80	-40 ~ +85
Backlight MTBF (hours)	15,000	30,000	50,000	70,000
Anti-vibration Spec.	Not Provided	OEM Confirmation Needed	1.5G (14.7 m/s²)	Anti-vibration Design (Specifics Needed)
Design Year/Datasheet	2013-2016	2020	Newer (LH1)	Newer

导出到 Google 表格

V. Comparative Analysis and Selection Recommendations

This section aims to guide the customer in making an informed decision through clear, data-driven comparisons, and to highlight the advantages of purchasing recommended solutions through Hangzhou LEEHON Technology.

Table 1: Comprehensive Specification Comparison of AUO G101EVN01.0 and Key Alternative Models

Parameter	AUO G101EVN01.0	BOE EV101WXM-N10	Innolux G101ICE-LH1	Tianma NL12880BC16-02F
Manufacturer	AUO	BOE	Innolux	Tianma
Model	G101EVN01.0	EV101WXM-N10	G101ICE-LH1	NL12880BC16-02F
Size/Resolution	10.1”, 1280x800, 149 PPI	10.1”, 1280x800, 149 PPI	10.1”, 1280x800, 149 PPI	10.1”, 1280x800, 149 PPI
Panel Technology	MVA	ADS	AAS	SFT
Brightness (cd/m²)	300	400	500	1000
Contrast Ratio	1300:1	900:1	800:1	800:1
Viewing Angle (H/V, CR≥10)	85/85/85/85	85/85/85/85	88/88/88/88	88/88/88/88
Color Depth/Gamut (NTSC %)	262K / 45% NTSC^^	16.7M / 50% NTSC	262K/16.7M / 73% NTSC	16.7M/262K / 50% NTSC
Operating Temp. (°C)	-20 ~ +60	-20 ~ +70	-30 ~ +80	-40 ~ +85
Storage Temp. (°C)	-30 ~ +70	-30 ~ +70	-40 ~ +85	-40 ~ +85
Backlight Type/Lifetime (hrs)	WLED / 15,000	WLED / 30,000	WLED / 50,000	WLED / 70,000
Panel MTBF (hours)	Not Provided	OEM Confirmation Needed	OEM Confirmation Needed	OEM Confirmation Needed
Anti-vibration Spec.	Not Provided ^^	OEM Confirmation Needed	1.5G (14.7 m/s²) ^^	Anti-vibration Design(Specifics Needed)^^
Anti-shock Spec.	Not Provided	OEM Confirmation Needed	OEM Confirmation Needed	OEM Confirmation Needed
Interface Type	LVDS (1ch, 6-bit)	LVDS (1ch, 8-bit)	LVDS (1ch, 6/8-bit)	LVDS (1ch, 6/8-bit)
Power Consumption (Typ/Max)	~3.4W (Typ)^^	~4.2W (Max)^^	6.0W (Typ)^^	6.7W (Typ)^^
Outline Dimensions (mm)	229.46 x 149.2 x 4.96	228.6 x 149.2 x 6.0	230.7 x 152.55 x 6.5	235.4 x 153.8 x 12.1 (Max 12.6)
Weight (g)	187 (Max)	175±20	300/315 (Typ/Max)^^	400 (Typ)
Surface Treatment	Hard Coating(3H), Reflectivity 1.5% Max	ADS Standard Treatment	Anti-glare, Hard Coating(3H)	Anti-glare
Special Features	Built-in LED Driver	Built-in LED Driver	Built-in LED Driver, 180° Image Flip	-
Datasheet/Launch Year	2013-2016	2020	Newer(G101ICE-LH1)	Newer
Long-Term Supply Indicator	High Risk	Low-Medium Risk (Newer Model)	Low-Medium Risk (Industrial Model)	Low-Medium Risk (Industrial Model)

Data Sources: [^^, S_R11, S_R12, S_R14, S_R16, S_R17, S_R19, S_R24, S_R25, S_R26, S_R29, S_R30, S_R31, S_R32, S_R33, S_R34, S_R35, S_R39, S_R41, S_R42, S_R43, S_R44, S_R46, S_R47, S_R49, S_R50, S_R51, S_R52, S_R53, S_R54, S_R55, S_R58, S_R59, S_R60, S_R62, S_R65, S_R66, S_R67, S_R69, S_R70, S_R71, S_R72, S_R75, S_R76, S_R77, S_R78, S_R81, S_R82, S_R84, S_R85, S_R88, S_R89, S_R90, S_R91, S_R92, S_R93, S_R95, S_R98, S_R99, ^^0, ^^2, ^^3, ^^5, ^^7, ^^8, ^^9, ^^]​This table is the cornerstone of data-driven analysis. It allows for direct, objective comparison of all key parameters. Highlighting missing data (especially the lack of vibration/shock data for AUO G101EVN01.0 and its product aging issues) will naturally guide customers towards more robust and sustainable options. The "Datasheet/Launch Year" and "Long-Term Supply Indicator" columns directly address the customer's core concerns.

Chart 1: Backlight Lifetime (MTBF) Comparison (Bar Chart) This chart will visually display the backlight lifetime of each model:

• AUO G101EVN01.0: 15,000 hours
• BOE EV101WXM-N10: 30,000 hours
• Innolux G101ICE-LH1/L01: 50,000 hours
• Tianma NL12880BC16-02F: 70,000 hours (Chart omitted, text description provided instead) This chart will clearly show the significant advantage of alternative models in terms of expected operational lifespan.

Chart 2: Operating Temperature Range Comparison (Bar Chart) This chart will show the minimum and maximum operating temperatures for each model:

• AUO G101EVN01.0: -20°C to +60°C
• BOE EV101WXM-N10: -20°C to +70°C
• Innolux G101ICE-LH1: -30°C to +80°C
• Tianma NL12880BC16-02F: -40°C to +85°C (Chart omitted, text description provided instead) This chart will visually demonstrate the enhanced environmental tolerance of alternatives like Tianma and Innolux G101ICE-LH1.

Discussion and Interpretation:

• Performance Stability: Analyze the performance of each model in terms of backlight lifetime, operating temperature range, and (if available) anti-vibration/shock capabilities. AUO G101EVN01.0 likely scores lowest in this assessment due to its 15,000-hour backlight lifetime and lack of vibration/shock data. Tianma and Innolux models perform best.
• Long-Term Supply: Evaluate based on product launch date, manufacturer's typical industrial product support policies, and LEEHON Technology's experience as a distributor. AUO G101EVN01.0 carries a high risk. BOE, Innolux, and Tianma (for their newer industrial models) offer better assurance.
• EMC/EMI Considerations for Alternatives: While specific EMC data for alternatives may also require confirmation via full datasheets, newer designs generally consider EMC issues more thoroughly. LEEHON Technology should commit to providing this data for the recommended BOE model.
• Cost-Effectiveness (Qualitative Analysis): Although this report does not cover specific pricing, a qualitative discussion can be held, e.g., "Superior performance may come with a higher unit cost, but the Total Cost of Ownership might be lower due to longer service life and higher reliability."

Itemized Response to Customer's Specific Concerns: Systematically review each panel's performance regarding "performance stability" and "long-term supply," and summarize the assessment results.

Selection Recommendations:

• Primary Recommendation:​​BOE EV101WXM-N10​. This is contingent on Hangzhou LEEHON Technology obtaining and providing the customer with complete reliability data (vibration, shock, EMC) from the original manufacturer. Its advantages lie in its balanced strong specifications, newer design, BOE's market position, and convenient supply and support through LEEHON Technology.
• Alternative Recommendations:
  • Innolux G101ICE-LH1 (or L01): Its excellent operating temperature range, backlight lifetime, and explicitly stated anti-vibration specification make it a very strong and reliable choice.
  • Tianma NL12880BC16-02F: If budget allows and the application environment is extremely harsh or requires very high brightness, this model is a top-tier performance option.
• Clear Recommendation Regarding AUO G101EVN01.0:​Not recommended for new, long-lifecycle product designs, primarily due to its product aging, limited backlight MTBF, lack of critical reliability data, and high risk of discontinuation.

This recommendation is not a simple assertion that "BOE is the best choice" but a carefully weighed conclusion. If BOE's vibration/shock data cannot be immediately provided, the Innolux model with a known 1.5G vibration specification might become a more prudent initial or final recommendation, especially if the equipment has high ruggedness requirements. The core strategy is to guide the customer, through Hangzhou LEEHON Technology, to select a solution with superior performance and more assured supply. The AUO G101EVN01.0 is unsuitable for new industrial product designs with high requirements for stability and long-term supply due to its numerous uncertainties in these aspects. The BOE EV101WXM-N10 shows significant improvements in key parameters (brightness, operating temperature, backlight lifetime, design year); its main current drawback is the lack of vibration and shock data in public information. The Innolux G101ICE-LH1/L01 not only has excellent specifications but also provides clear vibration parameters, making it highly attractive from a reliability perspective. The Tianma NL12880BC16-02F offers top-tier performance but may be more costly or offer excessive performance. Therefore, the BOE model is primarily recommended, ​provided LEEHON Technology can quickly supplement its reliability data​. If not, or if the customer has extremely high ruggedness requirements and data acquisition is slow, the Innolux model will be a strong contender. This positioning also highlights LEEHON Technology's value as a solution provider, not just a product seller.

VI. Hangzhou LEEHON Technology Co.,Ltd.: Your Industrial Display Solution Partner

LEEHON Technology's Value Proposition Overview:

• Authorized Distributor Qualification: Emphasize official authorized partnerships with mainstream manufacturers like BOE, AUO, Kyocera, Innolux, Tianma, and IVO.^^ This means customers can obtain original authentic products, favorable prices, direct technical support from the original factory, and early information on product roadmaps and EOL warnings.** **
• Professional Experience in Industrial Displays: Highlight LEEHON Technology's profound accumulation in the industrial grade (GD) display product field since its establishment in 2009.^^
• Technical Support and Solution Provision Capability: LEEHON Technology can assist customers in selecting the optimal display solution, provide datasheets, and help solve technical problems during integration. We can offer a "TFT LCD Screen + Touch Screen + Controller Board + Cables + Open Frame" total display solution.^^
• Commitment to Long-Term Supply: Explain how LEEHON Technology works with manufacturers to ensure customer supply continuity by recommending newer products with long lifecycles.
• Customer Service: Refer to "superior after-sales service" and "experienced staff ready to help you solve your problems anytime".^^

Focus on BOE Partnership: Reiterate LEEHON Technology's close cooperation with BOE, ensuring reliable procurement channels and support services for BOE's extensive portfolio of industrial display products. Emphasize BOE's commitment to R&D, quality control, and the industrial market as reasons for LEEHON Technology's focus on promoting its products.

Customization Service Capability: LEEHON Technology can provide services such as optical bonding, touch screen integration, custom cables, or firmware adjustments.^^

Contact Information:
Hangzhou LEEHON Technology Co.,Ltd. Address: Rm801, Unit 2, Building 10, Sheng'ao Mingzuo, Qiuqiao Rd, Wuchang Street, Yuhang District, Hangzhou Zhejiang province, 310023 ^^ (Alternative Address: Rm B4022 Golden Bull Building, Xixi software Park, No.8 Gaoshun Road, Yuhang district, Hangzhou, Zhejiang )

TEL/WeChat: 0571-86684288, 15906639973

Email: info@leehon.com/celia@leehon.com

Websites: https://www.lhlcdpanel.com/, https://www.lcd-panel.cn/

This section aims to clearly convey that the report has identified superior display options, and the customer needs a reliable supplier to access these options. LEEHON Technology, with its authorized partnerships with several mainstream brands (especially BOE), provides assurance of genuine products and support. LEEHON Technology's experience and value-added services (such as providing total solutions) further enhance its attractiveness. This section consolidates LEEHON Technology's role as a trustworthy advisor and supplier.

VII. Conclusion and Recommended Next Steps

Review of Core Findings: The analysis in this report indicates that while the AUO G101EVN01.0 meets basic industrial requirements in terms of resolution and viewing angles, its shorter backlight lifetime (15,000 hours), lack of clear anti-vibration and anti-shock specification data, and significant risk of discontinuation due to its age (2013-2016 design) make it unsuitable as the primary display solution for the customer's new electromagnetic analyzer. This is particularly true considering the customer's high focus on "performance stability" and "long-term supply."

Final Selection Recommendation: We strongly recommend that the customer consider the alternative models proposed in this report, which offer superior performance in key indicators and supply stability:

1. Primary Recommendation: BOE EV101WXM-N10. This model boasts higher brightness (400 nits), a wider operating temperature range (-20~+70°C), a backlight lifetime of up to 30,000 hours, and a more modern design (2020). Hangzhou LEEHON Technology will actively obtain and provide its complete official reliability test data (including vibration, shock, and EMC compliance certification) from BOE for the customer's final evaluation.
2. Strong Alternative: Innolux G101ICE-LH1. This model features 500 nits brightness, an excellent operating temperature of -30~+80°C, a backlight lifetime of up to 50,000 hours, and has explicitly provided a 1.5G anti-vibration specification, making it an ideal choice for pursuing high reliability and adaptability to harsh environments.
3. High-Performance Option: Tianma NL12880BC16-02F. If budget allows and the application scenario has extreme requirements for brightness (1000 nits) and temperature tolerance (-40~+85°C), this model with a 70,000-hour backlight lifetime and "anti-vibration design" is worth considering.

Hangzhou LEEHON Technology's Value Commitment: As an authorized distributor for the aforementioned brands (including BOE, Innolux, Tianma), Hangzhou LEEHON Technology Co.,Ltd. not only ensures the supply of original authentic recommended models at competitive prices but also provides comprehensive technical support, customization services, and reliable long-term after-sales support, fully assisting customers in selecting and successfully integrating the most suitable display solution for their electromagnetic analyzers.

Recommended Next Steps: To advance the selection process, we recommend:

1. Arrange a detailed meeting with the technical team of Hangzhou LEEHON Technology Co.,Ltd. to discuss the analysis results of this report in depth, and further clarify the specific application requirements and environmental conditions of your company's electromagnetic analyzer.
2. Have Hangzhou LEEHON Technology provide the complete official datasheets for the above-recommended models (especially BOE EV101WXM-N10), including detailed vibration, shock, and EMC test data.
3. Arrange for samples for evaluation and testing as needed.
4. Discuss long-term supply agreements and technical support details.

Hangzhou LEEHON Technology looks forward to closely cooperating with your company to jointly create an excellent display experience and reliable performance assurance for your electromagnetic analyzer.

If you are interested in our industrial LCD screens or want to learn more about how to choose the most suitable brightness parameters based on your specific applications, we welcome you to contact us at any time. Our expert team will provide you with professional consultation and support to help you find the most suitable industrial display solution for your needs.

Please contact us through the following methods to start your journey to a customized solution:

Visit our official website: [www.lhlcdpanel.com]

Send an email to: [celia@leehon.com]

Call us at: [0086-15906639973]

We look forward to working with you to bring you greater value.
