G065VN01 V2

Your location: Home > Products > AUO > 6.5" >
  • Module No:G065VN01 V2
  • Brand:AUO
  • Size:6.5 inch
  • Resolution:640(RGB)×480 , VGA
  • Brightness:800 cd/m²
  • Viewing angle:80/80/70/70(CR≥10)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:600:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G065VN01 V2
    Screen Size 6.5 inch
    Pixel Number 640(RGB)×480 , VGA

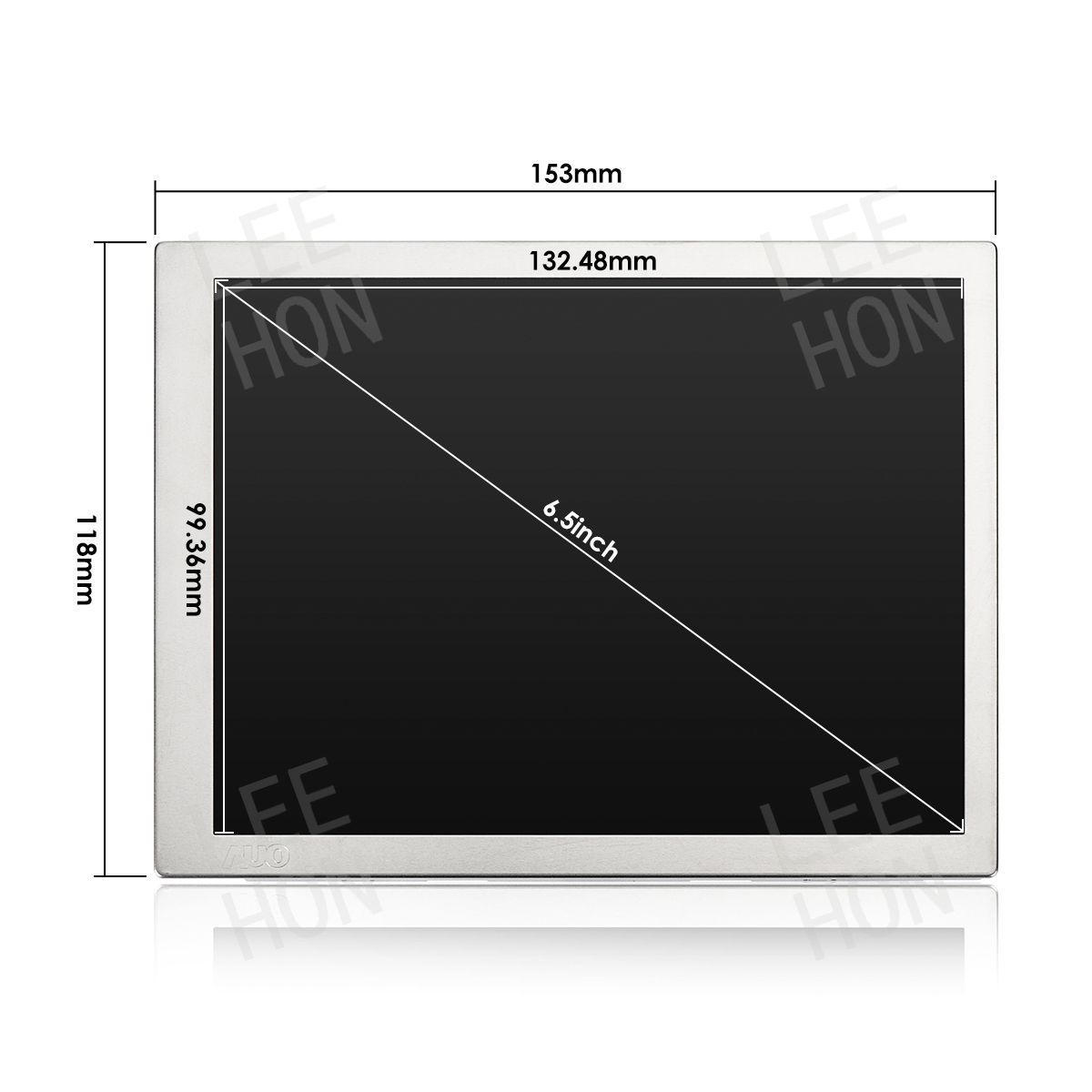

    Active Area(mm) 132.48(H) × 99.36(V)
    Outline(mm) 153(H) × 118(V) × 11.2(D)
    Bezel Area(mm) 135.9(H) × 102.8(V)
    Treatment Anti-glare , Hard coating (3H)
    Luminance 800 cd/m² (Typ.)
    Contrast Ratio 600 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/70 (CR≥10) Left / Right/UP /Down
    Response 15/10 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white , Transmissive
    Color Depth 262K/16.2M , 55% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 170g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -30 ~ +80 (°C)
    Package AUO original package;
    80 pcs/carton
    G065VN01 V2
    G065VN01 V2
    /uploads/productimage/AUO/G065VN01 V2
    /uploads/productimage/AUO/G065VN01 V2
    G065VN01 V2
    G065VN01 V2


  • AUO 6.5 inch tft lcd panel G065VN01 V2 with 640x480 VGA resolution, brightness 800 cd/m². This lcd display's working temperature is -30 ~ +80 (°C)  and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use and outdoor highlight.

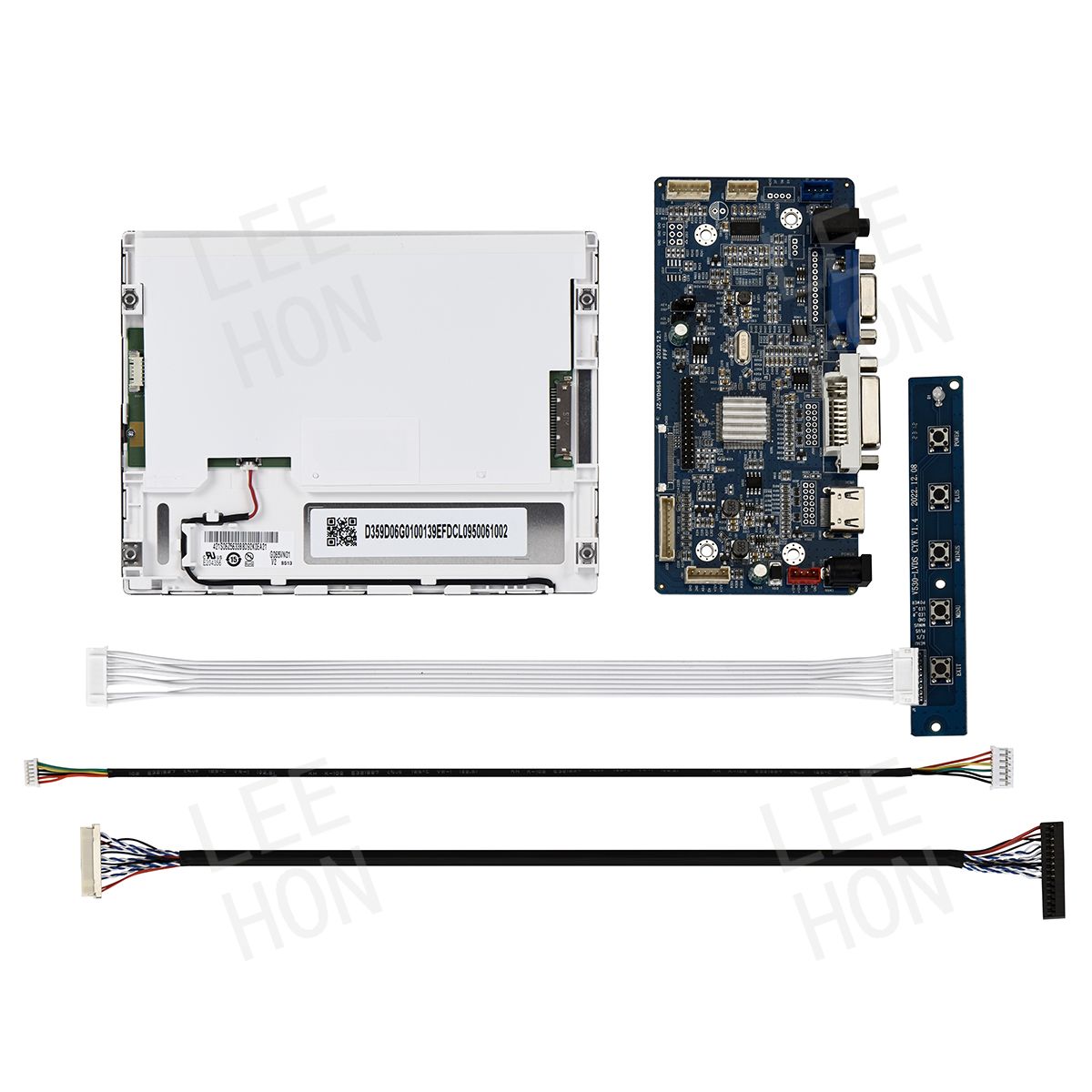

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Sunlight Readable 6.5 Inch 640x480 VGA LCD Panel Original AUO TFT LCD Display For Industry and Outdoor Highlight G065VN01 V2 with 800nits High Brightness and 20 pins LVDS.

    AUO



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
