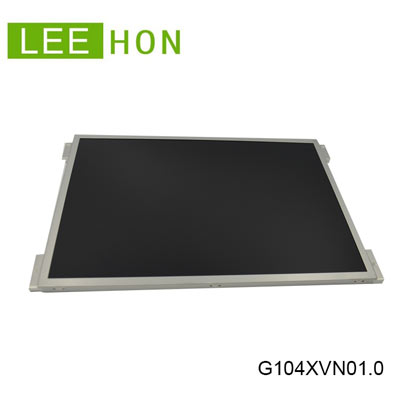

G104XVN01.0

Manufacturer

AUO

Model Name

G104XVN01.0

Screen Size

10.4

Pixel Number

1024(RGB)×768   [XGA]

Active Area(mm)

210.4×157.8 mm (H×V)

Outline(mm）

238.6×175.8×7 mm (H×V×D)

Bezel Area(mm)

215.4×161.8 mm (H×V)

Treatment

Hard coating

Luminance

470 cd/m² (Typ.)

Contrast Ratio

3000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89(CR≥10)

Left/Right/UP/Down

Response

25 (Typ.)(Tr+Td) ms

Work Mode

AMVA, Normally black, Transmissive

Color Depth

262K/16.2M , 60% NTSC

Backlight

50K hours,with LED Driver

Net Weight

295g (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch, 6/8bit) , 30 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C

Operating Temp.: -30 ~80 °C

Package

40 pcs/ carton
