G121XN01 V0

Your location: Home > Products > AUO > 12.1" >
  • Module No:G121XN01 V0
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:500 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:700 : 1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G121XN01 V0
    Screen Size 12.1 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 245.76 × 184.32 (H×V)
    Outline(mm) 279 × 209 × 9 (H×V×D)
    Bezel Area(mm) 250.8 × 189.4 (H×V)
    Treatment Hard coating (3H)
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (CR≥10)
    Left/Right/UP/Down
    Response 25/10 (Typ.)(Tr+Td) ms
    Work Mode TN , Normally white , Transmissive
    Color Depth 262K/16.2M , 70% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 495g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package AUO original package;
    20 pcs/ carton;
    weight : 14.8Kgs;
    size : 570(L) x 320(W) x 420(H)mm
    AUO

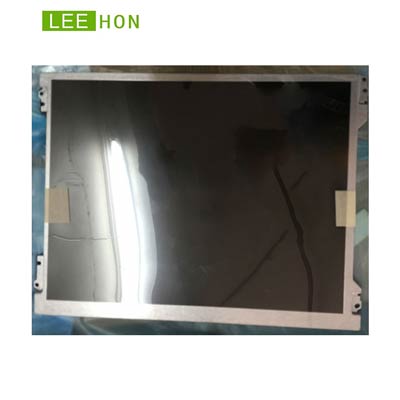

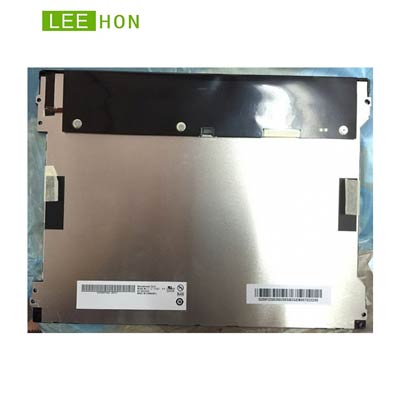

  • AUO 12.1 inch tft lcd panel G121XN01 V0 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for Industrial use(wide application).
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 12.1 Inch 1024*768 XGA LCD Panel Original AUO TFT LCD Wide Temperature Range Display G121XN01 V0 with 500nits, LVDS 20pins and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
