G121XTN01.0

Your location: Home > Products > AUO > 12.1" >
  • G121XTN01.0
  • Module No:G121XTN01.0
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:1024*768
  • Brightness:500 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)(CR≥10)
  • Interface:20 pins LVDS (1 ch, 6/8-bit)
  • CR:700:1
  • Operating Temp.: -30 ~ 85°C
  • Parameters
  • Description
  •

    Manufacturer

    AUO

    Model Name

    G121XTN01.0

    Screen Size

    12.1

    Pixel Number

    1024×768 , XGA

    Active Area(mm)

    245.76×184.32 mm (H×V)

    Outline(mm)

    279×209×9 mm (H×V×D)

    Bezel Area(mm)

    245.76×184.32 mm

    Treatment

    Hard coating

    Luminance

    500 cd/m² (Typ.)

    Contrast Ratio

    700 : 1 (Typ.) (TM)

    Viewing Angle

    80/80/80/80(CR≥10)

    Left/Right/UP/Down

    Response

    25 (Typ.)(Tr+Td) ms

    Work Mode

    MVA, Normally black, Transmissive

    Color Depth

    262K , 72% NTSC

    Backlight

    50K hours,without LED Driver

    Net Weight

    495g (Typ.)

    Touchscreen

    without

    Signal Type/interface Type

    LVDS (1 ch, 6/8-bit) , 40 pins

    Voltage Supply

    3.3V (Typ./Max.)

    Max. Ratings

    Storage Temp.: -30 ~85 °C

    Operating Temp.: -30 ~85 °C

    Package

    20 pcs/ carton

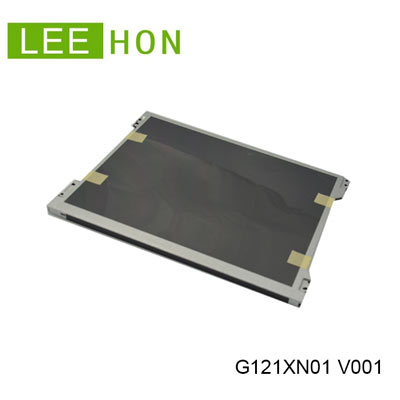

  • AUO 12.1 inch LCD screen G121XTN01.0, with 500 luminance and -30-85°C operating temp.
    G121XTN01.0 has standard 1024*768 resolution,it also has full-view angle.
    This screen has 50000 hours lifetime of backlight , can support long term opertating.
