G150XTN03.5

Your location: Home > Products > AUO > 15.0" >
  • G150XTN03.5
  • Module No:G150XTN03.5
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024*768
  • Brightness:350 cd/m²
  • Viewing angle:80/80/70/80
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:800 : 1
  • Operating Temp.: 0 ~ 65 °C
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G150XTN03.5
    Screen Size 15
    Pixel Number 1024(RGB)×768   [XGA]
    Active Area(mm) 304.128 × 228.096mm (H×V)
    Outline(mm) 326.5 × 253.5 × 10mm(H×V×D)
    Bezel Area(mm) 313.55 × 237.25 mm (H×V)
    Treatment Hard coating (3H)
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/80(CR≥10)
    Left/Right/UP/Down
    Response 5.7/2.3 (Typ.)(Tr+Td) ms
    Work Mode TN, Normally white,Transmissive
    Color Depth 262K/16.2M , 60% NTSC
    Backlight 50K hours,with LED Driver
    Net Weight 500g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
    Voltage Supply 3.3V (Typ./Max.)
    Max. Ratings Storage Temp.: 0 ~ 65 °C
    Operating Temp.: -20 ~65°C
    Package 15 pcs/ carton

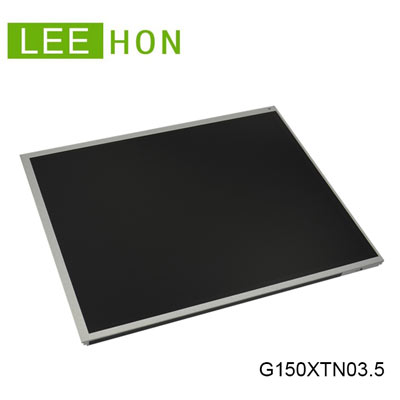

  • AUO 15 inch LCD screen G150XTN03.5, with 350 luminance and 0-65°C operating temp.
    G150XTN03.5 has standard 1024*768 resolution.This screen has 50000 hours lifetime of backlight , can support long term opertating.
    G150XTN03.5 is often used in monitors.
