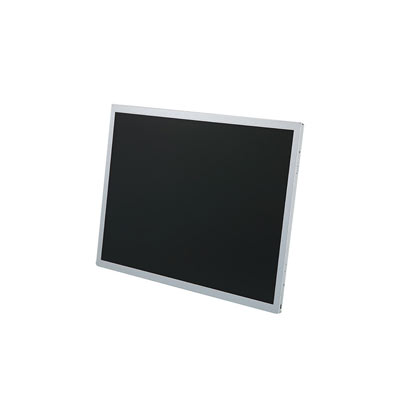

G150XTN06.B

Your location: Home > Products > AUO > 15.0" >
  • G150XTN06.B
  • Module No:G150XTN06.B
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024*768
  • Brightness:800 cd/m²
  • Viewing angle:80/80/70/80
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:800 : 1
  • Operating Temp.: -30-70℃
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G150XTN06.B
    Screen Size 15
    Pixel Number 1024(RGB)×768  [XGA]
    Active Area(mm) 304.128 × 228.096mm (H×V)
    Outline(mm) 326.5 × 253.5 × 10  mm(H×V×D)
    Bezel Area(mm) 311.9 × 236.85  mm(H×V)
    Treatment Anti-glare, Hardness 3H
    Luminance 800 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/80(CR≥10)
    Left/Right/UP/Down
    Response 5.7/2.3 (Typ.)(Tr+Td) ms
    Work Mode TN, Normally white,Transmissive
    Color Depth 262K/16.2M , 60% NTSC
    Backlight 50K hours,with LED Driver
    Net Weight 1kg (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
    Voltage Supply 3.3V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ 70 °C
    Operating Temp.: -30 ~70°C
    Package 14 pcs/ carton

  • AUO 15 inch lcd screen  G150XTN06.B with 1024x768 resolution and high brightness 800nits special for outdoor.
    Very good view  in any angle , super lower work temperature  -30 ~70°C  meet the outdoor requirements.
    Stable supply , support sample for approval
