G150XTN06.0

Your location: Home > Products > AUO > 15.0" >
  • Module No:G150XTN06.0
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:450 cd/m²
  • Viewing angle:80/80/70/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:800:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G150XTN06.0
    Screen Size 15 inch
    Pixel Number 1024(RGB)×768 , XGA

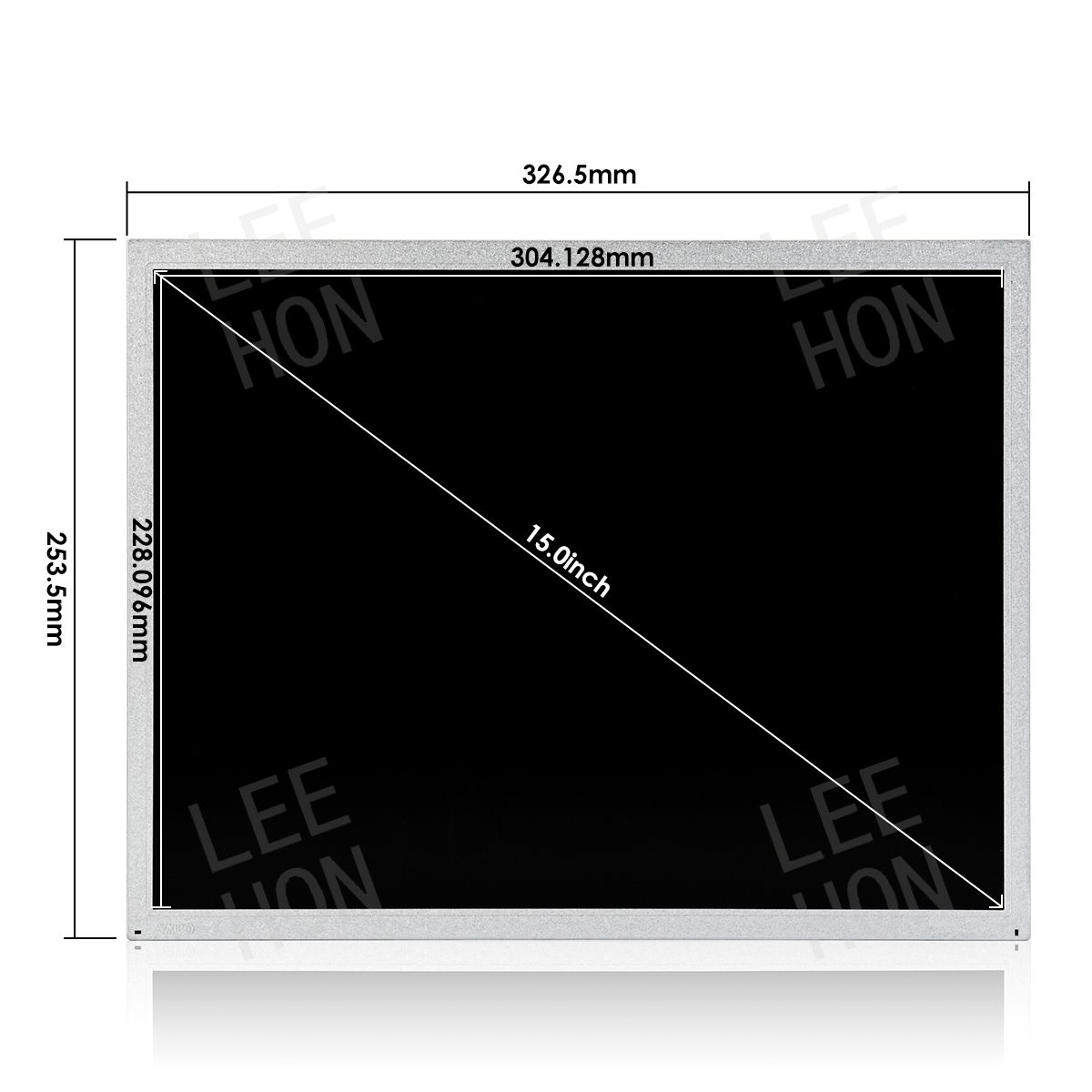

    Active Area(mm) 307.4 x 231.3 (H×V)
    Outline(mm) 326.5 x 253.5 x 12.5 (H×V×D)
    Bezel Area(mm) 307.4 x 231.3 (H×V)
    Treatment Anti-glare
    Luminance 450 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/80 (CR≥10)
    Left/Right/UP/Down
    Response 5.7/2.3 (Typ.)(Tr+Td) ms
    Work Mode TN , Normally white ,Transmissive
    Color Depth 262K/16.2M , 60% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 1.00Kgs (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package AUO Original package;
    15 pcs/ carton;
    weight : 18.5Kgs;
    size : 434(L) x 380(W) x 353(H)mm
    G150XTN06.0
    G150XTN06.0
    G150XTN06.0
    G150XTN06.0
    G150XTN06.0
    G150XTN06.0

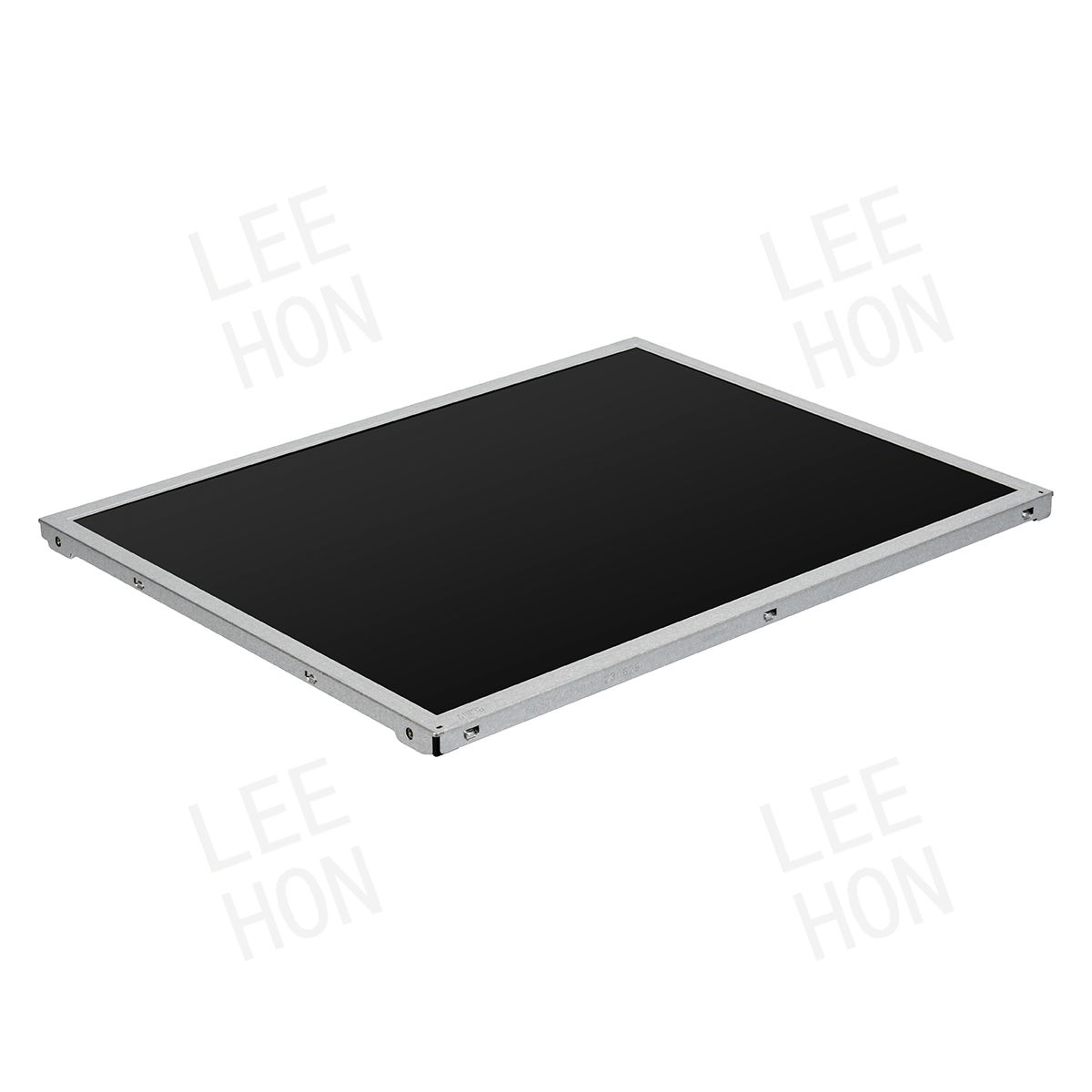

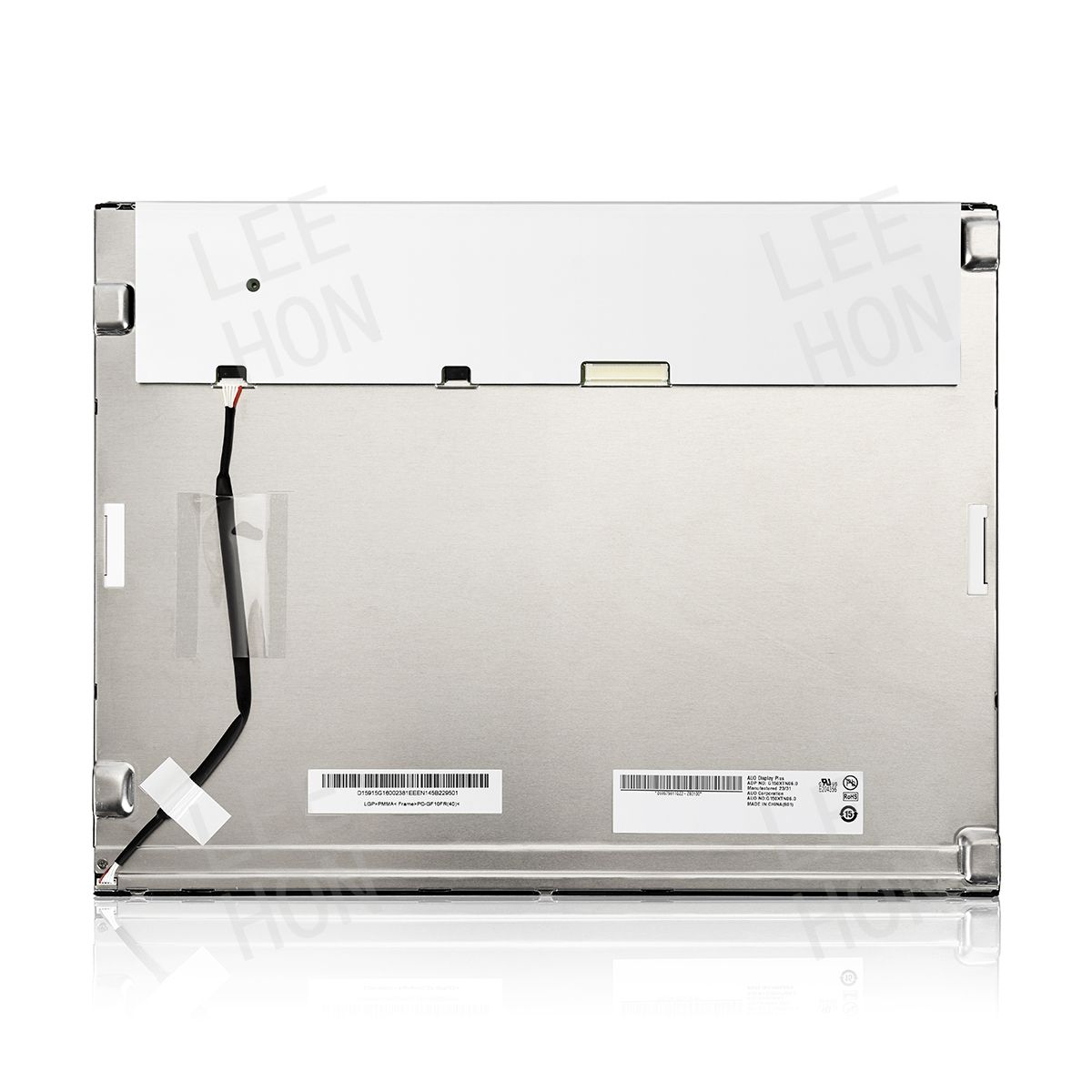

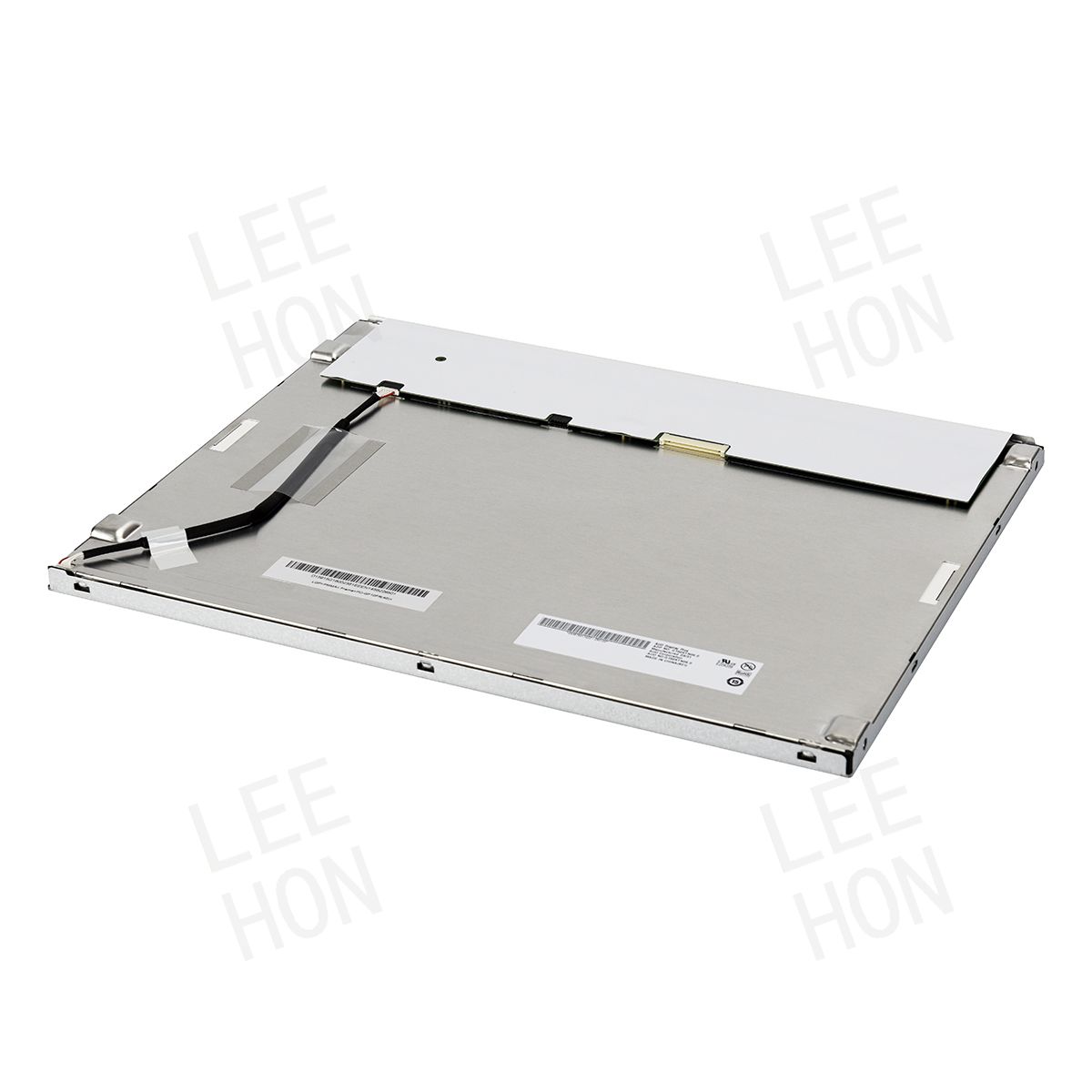

  • AUO 15 inch tft lcd panel G150XTN06.0 with 1024(RGB)x768 XGA resolution, brightness 450 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

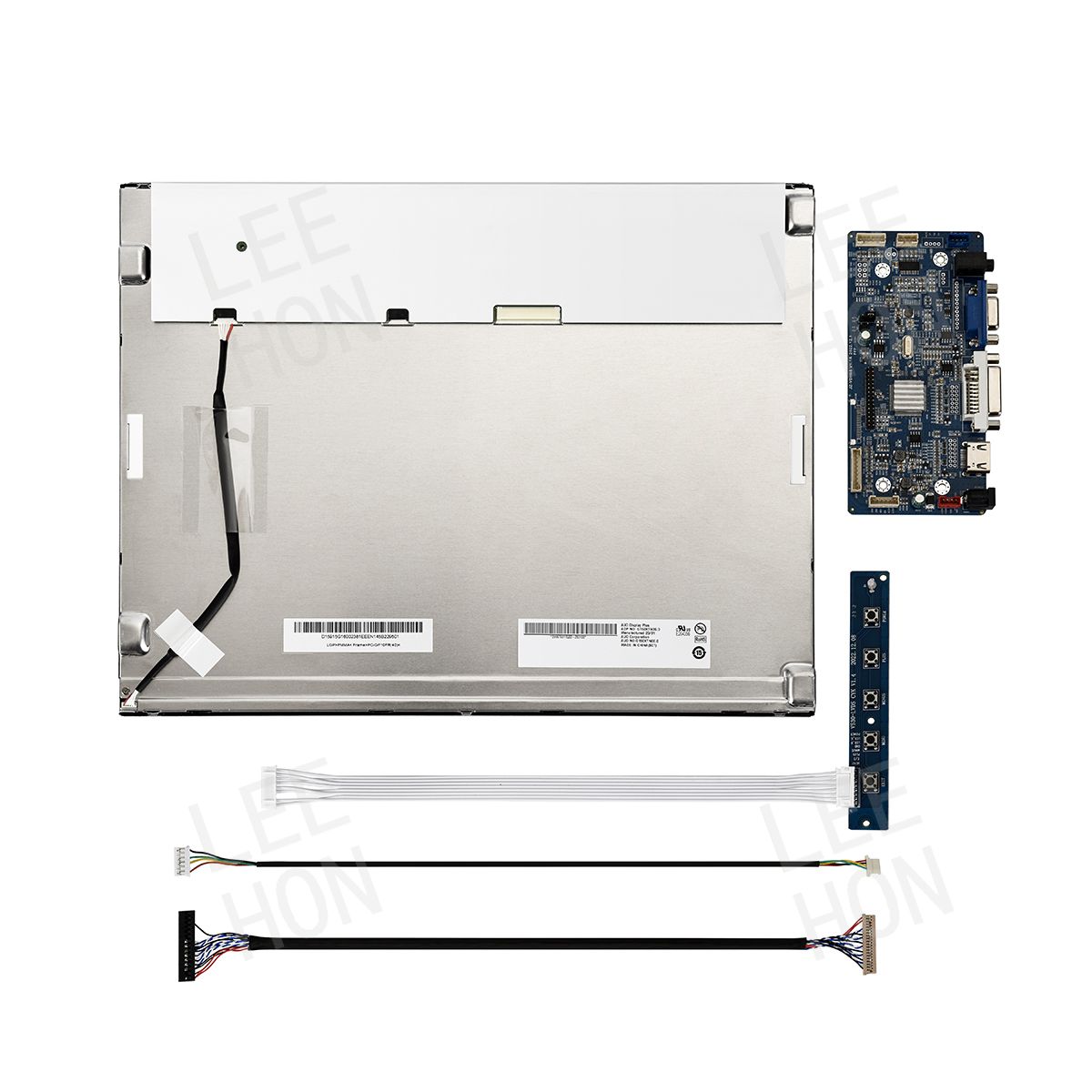

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 15 Inch 1024*768 XGA LCD Panel Original AUO 15" TFT LCD Display G150XTN06.0 with 450nits, 20 pins LVDS and Driver board.

    auo

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
