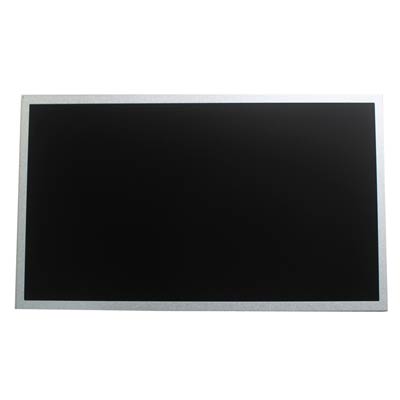

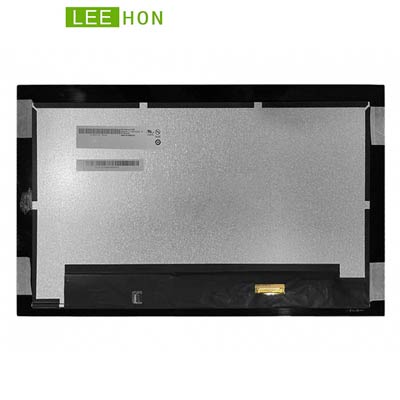

G156HAB02.4

Your location: Home > Products > AUO > 15.6" >
  • Module No:G156HAB02.4
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:eDP (2 Lanes) , eDP1.2 , 40 pins
  • CR:800:1
  • Operating Temp.: 0 ~ +50 (℃)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G156HAB02.4
    Screen Size 15.6 inch
    Pixel Number 1920(RGB)×1080  , FHD
    Active Area(mm) 344.16(H) x 193.59(V)
    Outline(mm) 361.2(H) x 227.2(V) x 8.0(D)
    Pixel Pitch(mm)
    0.17925 x 0.17925
    Treatment HC
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89
    Response 25 (Typ.)(Tr/Td) ms
    Work Mode AHVA, Normally black, Transmissive
    Color Depth 16.2M , 45% NTSC
    Backlight WLED, 50K hours, with LED Driver
    Net Weight 860g
    Touchscreen On-Cell Touch
    Signal Type/interface Type eDP (2 Lanes) , eDP1.2 , 40 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -20 ~ +60(°C)
    Operating Temp.: 0 ~ +50(°C)
    Package AUO Original Package;
    16 pcs/ctn;
    weight : 14.0kgs;
    size : 508mm(H) x 408mm(W) x 279mm(H).
    AUO
  • AUO 15.6 inch tft lcd panel G156HAB02.4 with 1920x1080 Full HD resolution , brightness 400 cd/m².This lcd display is working temperature is 0 ~ +50(°C) and its storage temperature is  -20 ~ +60(°C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Industrial AUO 15.6 inch 1920x1080 Full HD IPS TFT LCD Display G156HAB02.4 with 400 nits and 40 pin  eDP cables.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
