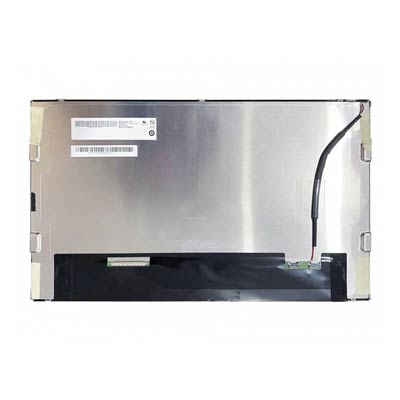

G156HAN02.1

Your location: Home > Products > AUO > 15.6" >
  • Module No:G156HAN02.1
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8bit) , 30 pins
  • CR:1000 : 1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G156HAN02.1
    Screen Size 15.6 inch
    Pixel Number 1920(RGB)×1080 , FHD
    Active Area(mm) 344.16×193.59 (H×V)
    Outline(mm) 363.8×215.9 ×9.3 (H×V)
    Bezel Area(mm) 347.06 × 196.49 (H×V)
    Treatment Hard coating (3H)
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (CR≥10)
    Left/Right/UP/Down
    Response 25 (Typ.)(Tr+Td) ms
    Work Mode AHVA , Normally black , Transmissive
    Color Depth 16.7M , 99% sRGB
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 660g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -20 ~ +70 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package AUO Original package;
    11 pcs/ carton;
    weight : 16.3Kgs;
    size : 443(L) x 365(W) x 299(H)mm
    AUO
  • AUO 15.6 inch tft lcd ips panel G156HAN02.1 with 1920(RGB)x1080 Full HD resolution, brightness 500 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial and medical imaging use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 15.6 Inch 1920*1080 HD LCD Panel Original AUO TFT LCD IPS Display For Medical imaging G156HAN02.1 with 500nits and 30 pins LVDS.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
