G156XTN01.2

Your location: Home > Products > AUO > 15.6" >
  • Module No:G156XTN01.2
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1366(RGB)×768 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:85/85/70/80
  • Interface:eDP (1 Lane) , eDP1.2 , 30 pins
  • CR:800 : 1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G156XTN01.2
    Screen Size 15.6 inch
    Pixel Number 1366(RGB)×768 , WXGA
    Active Area(mm) 344.232 × 193.536 (H×V)
    Outline(mm) 363.8 × 215.9 ×9.07 (H×V×D)
    Pixel Pitch(mm) 0.252 × 0.252 (H×V)
    Treatment
    Anti-Glare, 3H
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 85/85/70/80 (CR≥10) Left / Right/UP /Down
    Response time 10 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 16.7M , 62% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 860g
    Touchscreen without
    Signal Type/interface Type eDP (1 Lane) , eDP1.2 , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package AUO Original package;
    16 pcs/ctn;
    weight : 15.3Kgs;
    Size : 450(H) x 375(W) x 319(H)mm
    AUO

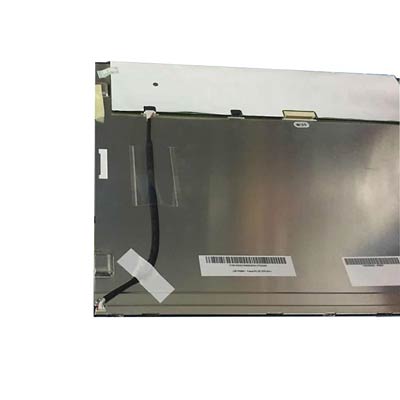

  • AUO 15.6 inch tft lcd panel G156XTN01.2 with 1366(RGB)x768 WXGA resolution, brightness 400 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial and medical imaging use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and eDP cables.
    Industrial 15.6 Inch 1366*768 WXGA LCD Panel Original AUO TFT LCD Display G156XTN01.2 with 400nits, eDP 30 pins And Driver board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
