G170EG01 V1

Your location: Home > Products > AUO > 17.0" >
  • G170EG01 V1
  • Module No:G170EG01 V1
  • Brand:AUO
  • Size:17 inch
  • Resolution:1280*1024
  • Brightness:350 cd/m²
  • Viewing angle:80/80/60/80
  • Interface:LVDS (2 ch, 8-bit) 30 pins
  • CR:800 : 1
  • Operating Temp.: -30 ~ 85 °C
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G170EG01 V1
    Screen Size 17
    Pixel Number 1280(RGB)×1024   [SXGA]

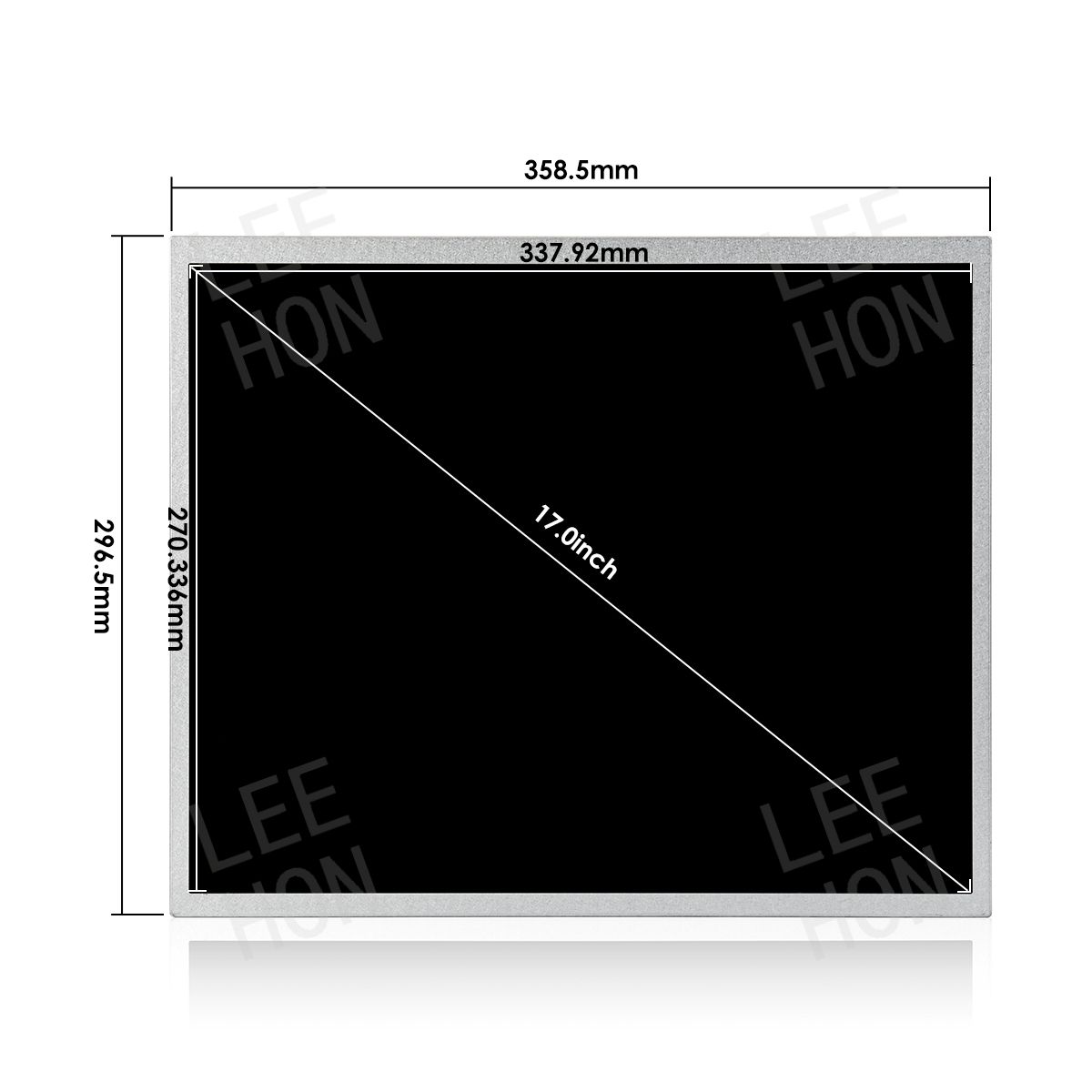

    Active Area(mm) 337.92 × 270.336 mm (H×V)
    Outline(mm) 358.5 × 296.5 × 18 mm(H×V×D)
    Bezel Area(mm) 341.6 × 274.0 mm (H×V)
    Treatment Hard coating (3H)
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/60/80(CR≥10)
    Left/Right/UP/Down
    Response 20/10 (Typ.)(Tr+Td) ms
    Work Mode TN, Normally white,Transmissive
    Color Depth 16.7M , 72% NTSC
    Backlight 50K hours,with LED Driver
    Net Weight 1.35Kgs (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit)   30 pins
    Voltage Supply 3.3V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ 85 °C
    Operating Temp.: -30 ~85°C
    Package 8 pcs/ carton
  • AUO 17 inch LCD screen G170EG01 V1, with 350 luminance and -30-85°C operating temp.
    G170EG01 V1 has standard 1280*1024  resolution.This screen has 50000 hours lifetime of backlight , can support long term opertating.
    G170EG01 V1 is often used in outdoor monitors.
