| Manufacturer | AUO |

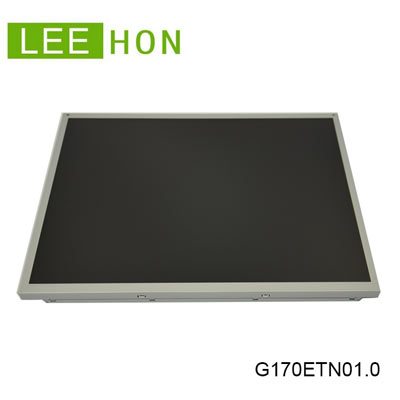

| Model Name | G170ETN01.0 |
| Screen Size | 17 |
| Pixel Number | 1280(RGB)×1024 [SXGA] |
| Active Area(mm) | 337.92×270.336 mm (H×V) |
| Outline(mm） | 358.5× 296.5× 18 mm(H×V×D) |
| Bezel Area(mm) | 337.92× 270.336 mm (H×V) |
| Treatment | Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle |
85/85/80/80 (CR≥10) Left/Right/UP/Down |
| Response | 3.5/1.5 (Typ.)(Tr+Td) ms |
| Work Mode | TN, Normally white，Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | 50K hours,with LED Driver |
| Net Weight | 1.3Kgs (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Voltage Supply | 3.3V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: 0 ~ 50 °C Operating Temp.: -20~60°C |
| Package | 8 pcs/ carton |
