G057QTN01.4

Your location: Home > Products > AUO > 5.7" >
  • Module No:G057QTN01.4
  • Brand:AUO
  • Size:5.7 inch
  • Resolution:320(RGB)×240 , QVGA
  • Brightness:500 cd/m²
  • Viewing angle:80/80/70/70 (Typ.)
  • Interface:CMOS (1 ch, 6-bit) , 33 pins
  • CR:700:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G057QTN01.4
    Screen Size 5.7 inch
    Pixel Number 320(RGB)×240 , QVGA
    Active Area(mm) 115.2 x 86.4 (H×V)
    Outline(mm) 144 x 104.6 x 8.8 (H×V×D)
    Pixel Pitch(mm) 0.36 x 0.36 (H×V)
    Treatment
    Anti-Glare, Hardness 3H
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/70(CR≥10) Left / Right/UP /Down
    Response time 15/10 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 262K , 50% NTSC
    Backlight WLE, 75K hours, with LED Driver
    Net Weight 165g
    Touchscreen without
    Signal Type/interface Type CMOS (1 ch, 6-bit) , 33 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package AUO Original package;
    48 pcs/ctn;
    size : 528(L) x 348(W) x 265(H) mm
    AUO

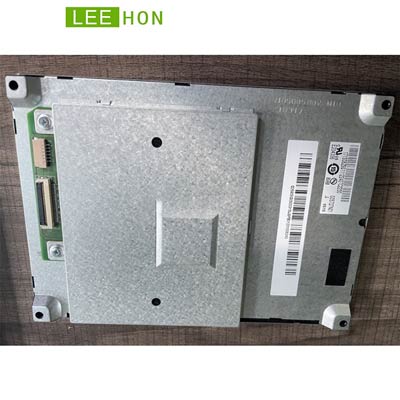

  • AUO 5.7 inch tft lcd panel G057QTN01.4 with 320(RGB)x240 QVGA resolution, brightness 500 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is  - 30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Aso we have matched HDMI driver board.
    Industrial 5.7 inch 320x240 QVGA LCD Screen Original Auo TFT LCD Panel G057QTN01.4 With 500nits, CMOS interface and Driver board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
