G070VW01 V0

Your location: Home > Products > AUO > 7.0" >

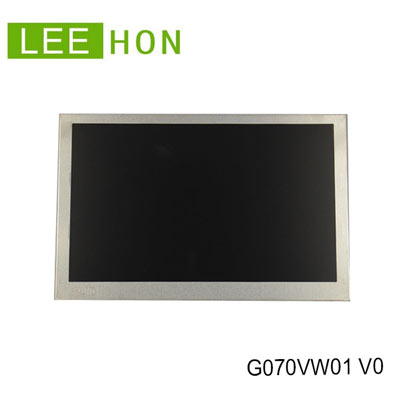

  • G070VW01 V0
  • Module No:G070VW01 V0
  • Brand:AUO
  • Size:7 inch
  • Resolution:800*480
  • Brightness:400cd/m²
  • Viewing angle:80/80/80/80 CR≥10)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:750:1
  • Operating Temp.: -30 ~ 85 °C
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G070VW01 V0
    Screen Size 7
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 152.4×91.44 mm (H×V)
    Outline(mm) 170×111×8mm (H×V×D)
    Bezel Area(mm) 155.2×94.24mm (H×V)
    Treatment Anti-glare, Hard coating (3H)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 750 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
    Response 20/10 (Typ.)(Tr/Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 262K , 60% (CIE1931)
    Backlight 50K hours,with LED Driver
    Net Weight 165/175g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply 3.3V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ 85 °C
    Operating Temp.: -30 ~85 °C
    Package 60 pcs/ carton
  •  AUO 7inch LCD screen G070VW01 V0, with 400 luminance and -30-85 operating temp.
    G070VW01 V0 has standard 800*480 resolution,it also has almost full-view angle.
    This screen has 50000 hours lifetime of backlight , can support long term opertating.
    G070VW01 V0 has good reliability ,often be used in industial facilities.
