| Manufacturer | INNOLUX |
| Model Name | G057VCE-TH1 |
| Screen Size | 5.7 inch |
| Pixel Number | 640(RGB)×480 , VGA |
| Active Area(mm) | 115.2 x 86.4 (H×V) |
| Outline(mm） | 144.0 x 104.6 x 12.3 (H×V×D) |
| Pixel Pitch(mm) | 0.18 x 0.18 (H×V) |
| Treatment | Hoad Coating (3H) , Anti-Glare |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88(CR≥10) Left / Right/UP /Down |
| Response time | 13/12 (Typ.)(Tr/Td) ms |
| Display Mode | VA , Normally black , Transmissive |
| Color Depth | 262K , 74% DCI-P3 |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | Parallel RGB (1 ch, 6-bit) , 40 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -40 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package | Innolux Original package; 60 pcs/ctn; weight : 11.65Kgs; size : 500(L) x 400(W) x 330(H)mm |

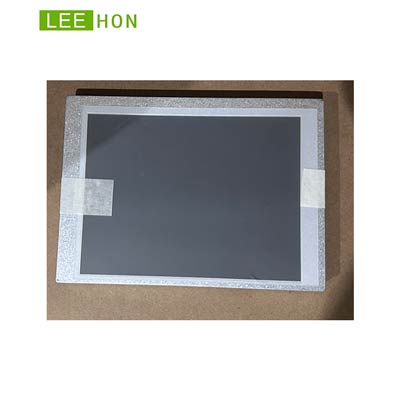

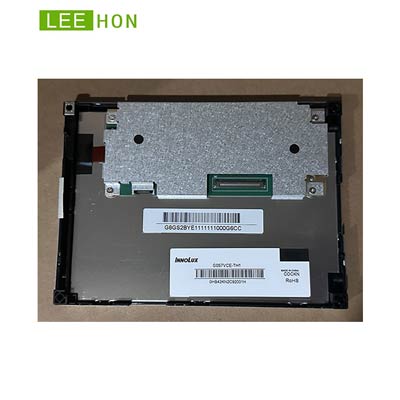

Innolux 5.7 inch tft lcd ips panel G057VGE-TH1 with 640(RGB)x480 VGA resolution, brightness 450 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
Original Innolux 5.7 Inch 640x480 VGA TFT LCD Panel RGB LCD Screen For Industry G057VGE-TH1 with 450nits, Driver board and Touchscreen.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
