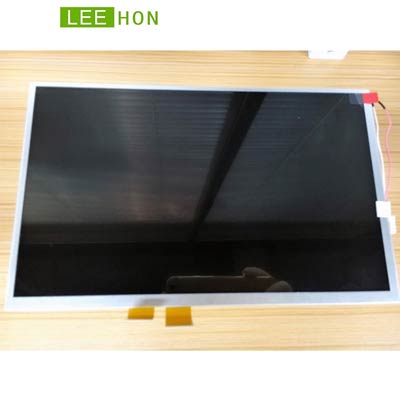

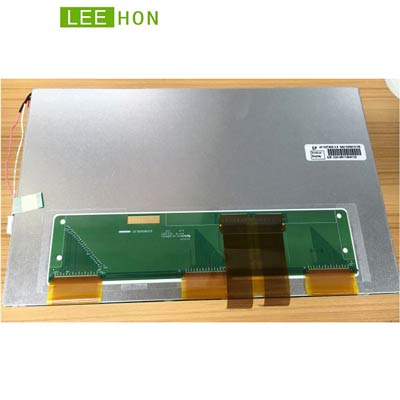

AT102TN03 V.8

Your location: Home > Products > INNOLUX > 10.2" >
  • Module No:AT102TN03 V.8
  • Brand:Innolux
  • Size:10.2 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:350 cd/m²
  • Viewing angle:65/65/45/65 (Typ.)
  • Interface:TTL (1 ch, 6-bit) , 60 pins , FPC
  • CR:300:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  INNOLUX
    Model Name AT102TN03 V.8
    Screen Size 10.2 inch
    Pixel Number 800(RGB)×480, WVGA
    Active Area(mm) 222.00 x 132.48 (W×H)
    Outline(mm) 235.0 x 145.8 x 6.1 (W×H×D)
    Pixel Pitch(mm) 0.0925 x 0.276 (W×H)
    Treatment
    Anti-Glare
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (TM)
    Viewing Angle 65/65/45/65(CR≥10) Left / Right/UP /Down
    Response 15/20 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white, Transmissive
    Color Depth 262K , 50% NTSC
    Backlight WLED , 20K hours, without Driver
    Net Weight 309g
    Touchscreen without
    Signal Type/interface Type TTL (1 ch, 6-bit) , 60 pins , FPC
    Voltage Supply +3.3V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package Innolux original package;
    25 pcs/ctn;
    weight : 10.964Kgs;
    size : 530(L)mm x 355(W)mm x 255(H)mm

  • Innolux 10.2 inch tft lcd panel AT102TN03 V.8 with 800(RGB)x480 WVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is  -30 ~ +85 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
    Original Cheap 10.2 Inch 800x480 WVGA Innolux TFT LCD Panel TTL LCD Screen For car AT102TN03 V.8 with 350nits, touchscreen and controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
