G121I1-L01

Your location: Home > Products > INNOLUX > 12.1" >
  • Module No:G121I1-L01
  • Brand:Innolux
  • Size:12.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:88/88/88/88
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -10 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer Innolux
    Model Name G121I1-L01
    Screen Size 12.1 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm) 261.12 x 163.2 (H x V)
    Outline(mm) 278.0 x 184.0 x 8.16 (H x V x T)
    Treatment
    AG type, 3H hard coating
    Luminance 400 cd/m²
    Contrast Ratio 1000:1
    Viewing Angle 88/88/88/88
    Response 15/10ms
    Work Mode MVA , Transmissive mode / Normally black
    Color Depth 262K/16.2M , 45% NTSC
    Backlight WLED , 50k Hours , with LED Driver
    Net Weight 455g
    Touchscreen without, resistive /capacitive touch for options
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3 V
    Temperature Storage Temp.: -20 ~ 80 (°C)
    Operating Temp.: -10 ~ 70 (°C0
    Package Innolux original package;
    20 pcs/ctn;
    weight : 16.0Kgs;
    size :
    465 (L)mm x 362 (W)mm x 314 (H)mm

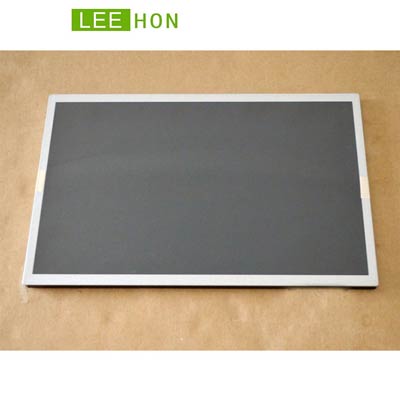

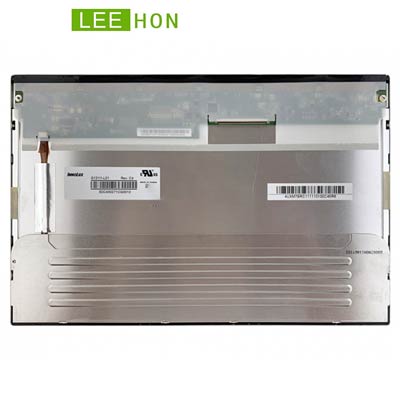

  • Innolux 12.1" TFT LCD G121I1-L01 Replace For G121ICE-L02.
    Innolux 12.1 inch tft lcd panel G121I1-L01 with 1280(RGB)x800 WXGA resolution, brightness 400 cd/m². This lcd display is working temperature is -10 ~ +70 (°C) and its storage temperature is  -20 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original Innolux 12.1 Inch 1280x800 WXGA TFT LCD Panel IPS Display For Industry G121I1-L01 With 400nit, LVDS Cables and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
