| Manufacturer | Innolux |
| Model Name | G121ICE-LH1 |
| Screen Size | 12.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 261.12 x 163.2 (H×V) |
| Outline(mm） | 278 x 184 x 10 (H×V×D) |
| Pixel Pitch(mm) | 0.204 x 0.204 (H×V) |
| Treatment |
AG type, 3H hard coating
|
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88(CR≥10) Left / Right/UP /Down |
| Response time | 12/8 (Typ.)(Tr/Td) ms |
| Display Mode | AAS , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 490g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package | Innolux Original package; 18 pcs/ctn; weight : 10.15Kgs; size : 465 (L) x 362 (W) x 314 (H) mm |

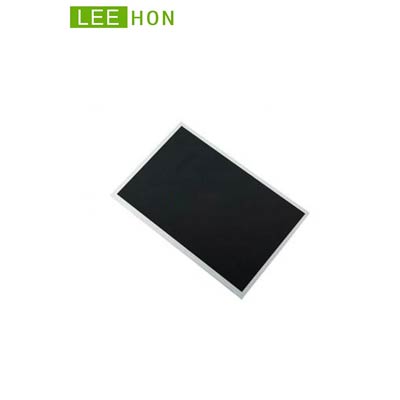

Innolux 12.1 inch tft lcd ips panel G121ICE-LH1 with 1280(RGB)x800 WXGA resolution, brightness 1000 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use And Outdoor Highlight.
Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
High Brightness 12.1 Inch 1280x800 WXGA Original Innolux TFT LCD Panel IPS Display For Outdoor G121ICE-LH1 with 1000nits Sunlight Readable and LVDS 30 pins.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
