| Manufacturer | Innolux |
| Model Name | G121X1-L03 |
| Screen Size | 12.1 Inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 245.76 × 184.32 (H×V) |
| Outline(mm） | 260.5 × 204 × 8.4 (H×V×D) |
| Pixel Pitch(mm) | 0.24 × 0.24 (H×V) |
| Treatment | Hard coating 3H , Glare |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (CR≥10) Left / Right/UP /Down |
| Response time | 5/11 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 262K/16.2M , 63% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 540g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -40 ~ +85 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package | Innolux Original package; 16 pcs/ctn; weight : 15.0Kgs; size : 465(L) x 362(W) x 314(H)mm |

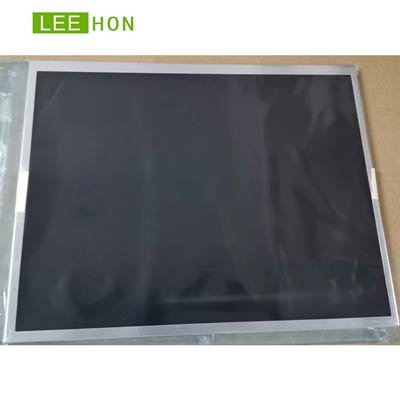

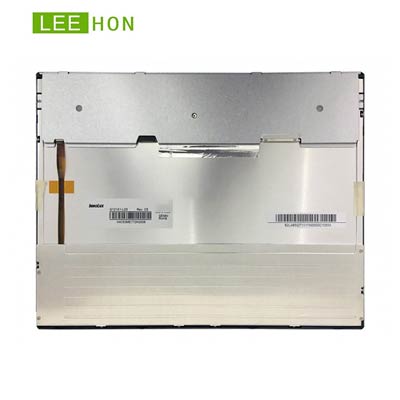

Innolux 12.1 inch tft lcd ips panel G121X1-L03 with 1024(RGB)x768 XGA resolution, brightness 600 cd/m². This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -40 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial, car and gaming use.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
Industrial 12.1" 1024x768 XGA LCD Panel Original Innolux 12 Inch TFT LCD Screen For Gaming and Car G121X1-L03 with 600 nits and 20 pins LVDS.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
