G150XNE-L02

Your location: Home > Products > INNOLUX > 15.0" >
  • Module No:G150XNE-L02
  • Brand:Innolux
  • Size:15 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:350 cd/m²
  • Viewing angle:88/88/88/88 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:2500:1
  • Operating Temp.: -30 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  INNOLUX
    Model Name G150XNE-L02
    Screen Size 15 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 304.1 x 228.1 (H×V)
    Outline(mm) 326.5 x 253.5 x 9.1 (H×V×D)
    Pixel Pitch(mm) 0.297 x 0.297 (H×V)
    Treatment
    Hard Coating (3H), Anti-Glare
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 2500 : 1 (Typ.) (TM)
    Viewing Angle 88/88/88/88(CR≥10) Left / Right/UP /Down
    Response time 13/5 (Typ.)(Tr/Td) ms
    Display Mode NPVA , Normally black, Transmissive
    Color Depth 262K/16.7M , 72% NTSC
    Backlight WLED, 70K hours, with LED Driver
    Net Weight 1.00Kgs
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3V
    Max. Ratings Storage Temp.: -40 ~ +70 (°C)
    Operating Temp.: -30 ~ +70 (°C)
    Package Innolux Original package;
    16 pcs/ctn;
    weight : 18.0Kgs;
    size : 511 (L)mm x 420 (W)mm x 360 (H)mm

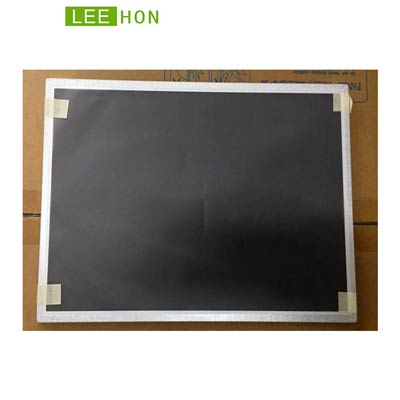

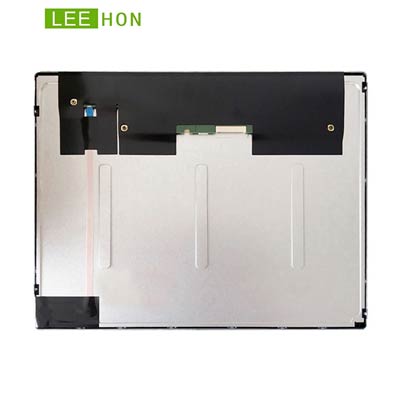

  • Innolux 15 inch tft lcd panel G150XNE-L02 with 1024(RGB)x768 XGA resolution, brightness 350 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and its storage temperature is  -40 ~ +70 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original Innolux 15 Inch 1024x768 XGA TFT LCD Panel IPS LCD Screen For Industry G150XNE-L02 With 350nits, 20pins LVDS Cables And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
