| Manufacturer | Innolux |

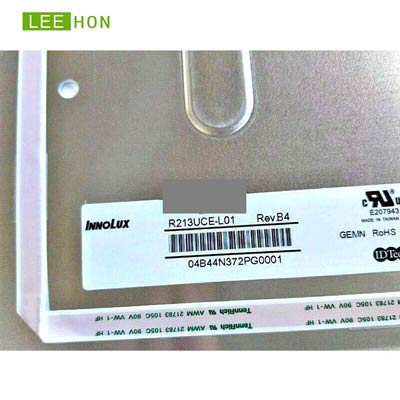

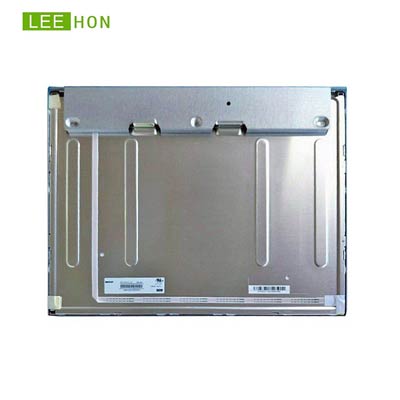

| Model Name | R213UCE-L01 |
| Screen Size | 21.3 Inch |
| Pixel Number | 1600(RGB)×1200 , UXGA |
| Active Area(mm) | 432 × 324 (H×V) |
| Outline(mm） | 457 × 350 × 19.29 (H×V×D) |
| Pixel Pitch(mm) | 0.27 × 0.27 (H×V) |
| Treatment |
Anti-glare , hardness 3H
|
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left / Right/UP /Down |
| Response time | 8/8 (Typ.)(Tr/Td) ms |
| Display Mode | AAS , Normally black , Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 2.17Kgs |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Voltage Supply | +12.0 V |
| Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C) |
| Package |
Innolux Original package; 5 pcs/ctn; size : 532(L) x 283(W) x 488(H) mm; weight : 13.7Kgs |
