AT043TN25 V.2

Your location: Home > Products > INNOLUX > 4.3" >
  • Module No:AT043TN25 V.2
  • Brand:Innolux
  • Size:4.3 inch
  • Resolution:480(RGB)×272 , WQVGA
  • Brightness:500 cd/m²
  • Viewing angle:70/70/50/70 (Typ.)
  • Interface:Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer Innolux
    Model Name AT043TN25 V.2
    Screen Size 4.3 inch
    Pixel Number 480(RGB)×272 , WQVGA
    Active Area(mm) 95.04(W) x 53.856(H)
    Outline(mm) 105.5(W) x 67.2(H) x 2.9(D)
    Treatment Anti-glare
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
    Response 10/15 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white , Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED , 20K hours , whitout driver
    Net Weight 45.0g (Typ.)
    Touchscreen Without
    Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
    Voltage Supply +3.3 V (Typ.)
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Innolux original package;
    160 pcs/carton;
    Carton size:  530(L) x 355(W) x 255(H)mm

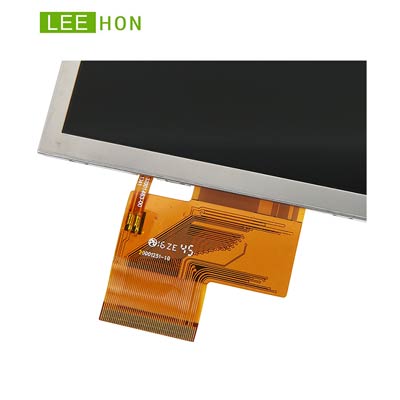

  • Innolux 4.3 inch tft lcd panel AT043TN25 V.2 with 480(RGB)x272 VGA resolution, brightness 500 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Original Innolux 4.3 Inch 480x272 WQVGA TFT LCD Module RGB LCD Screen AT043TN25 V.2 with 500nit, 60Hz And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
