| Manufacturer | INNOLUX |

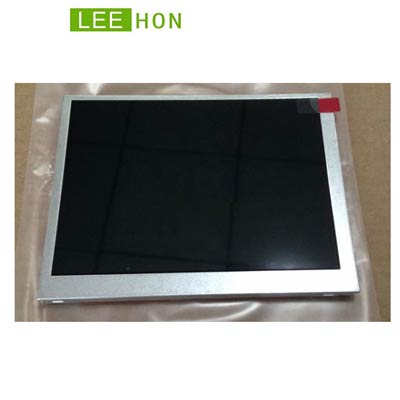

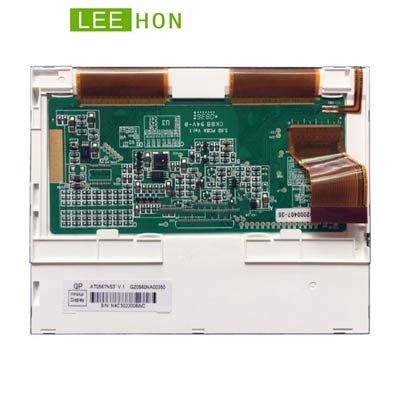

| Model Name | AT056TN53 V.1 |
| Screen Size | 5.6 inch |
| Pixel Number | 640(RGB)×480 , VGA |
| Active Area(mm) | 112.896 x 64.672 (H×V) |
| Outline(mm） | 126.5 x 100 x 5.7 (H×V×D) |
| Pixel Pitch(mm) | 0.0588 x 0.1764 (W×V) |
| Treatment |
Anti-Glare
|
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70(CR≥10) Left / Right/UP /Down |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 262K , 50% NTSC |
| Backlight | WLED , 20K hours, with LED Driver |
| Net Weight | 83.1g |
| Touchscreen | without |
| Signal Type/interface Type | Parallel RGB (1 ch, 6-bit) , FPC , 40 pins |
| Voltage Supply | +3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
Innolux original package; 60 pcs/ctn; weight : 8.178Kgs; size : 530(L) x 355(W) x 255(H)mm |
