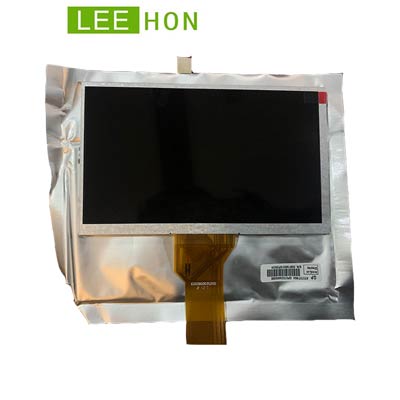

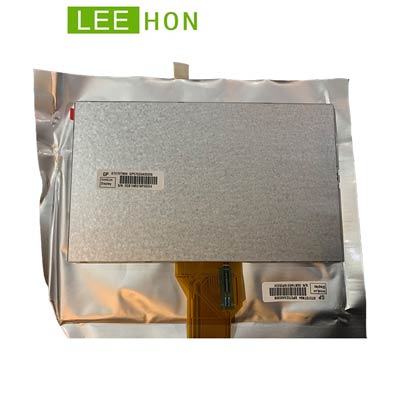

AT070TN92

Your location: Home > Products > INNOLUX > 7.0" >
  • Module No:AT070TN92
  • Brand:INNOLUX
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:250 cd/m²
  • Viewing angle:70/70/50/70
  • Interface:Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer INNOLUX
    Model Name AT070TN92
    Screen Size 7 inch
    Screen Type LCM, a-Si TFT-LCD
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 154.08 x 85.92 (HxV)
    Outline(mm) 164.9 x 100 x 6 (HxVxD)
    Bezel Area(mm) 156.7 x 89.1 (HxV)
    Treatment Anti-glare , Hard coating (2H) , Anti-reflection
    Luminance 250 cd/m²
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/50/70(Typ)(CR≥10) Left / Right / Up / Down
    Response 10/15(Typ.)(Tr/Td) ms
    Good View at 6 O’CLOCK
    Work Mode TN , Normally White,  Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED , 20K Hours ,without driver
    Net Weight 150.0g (Typ.)
    operating frequency 60Hz
    Touchscreen without
    Signal Type Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC
    Voltage Supply +3.3 V (Typ.)
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Innolux original package;
    50 pcs/carton;
    Carton size : 530(L)mm x 355(W)mm x 255(H)mm

  • Innolux 7 inch tft lcd panel AT070TN92 with 800(RGB)x480 WVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -20 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.

    Original Innolux 7 inch 800x480 WVGA TFT LCD Panel RGB LCD Screen For Digital Photo Frame and Visual Doorbell AT070TN92 with 250nit and Controller board.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
