G070ACE-LH2

Your location: Home > Products > INNOLUX > 7.0" >
  • Module No:G070ACE-LH2
  • Brand:Innolux
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:800:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  Innolux
    Model Name G070ACE-LH2
    Screen Size 7 inch
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 152.4 x 91.44 (H×V)
    Outline(mm) 170 x 110 x 6 (H×V×D)
    Pixel Pitch(mm) 0.1905 x 0.1905 (H×V)
    Treatment
    Hard Coating (3H), Anti-Glare
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89(CR≥10) Left / Right/UP /Down
    Response time 13/12 (Typ.)(Tr/Td) ms
    Display Mode AAS , Normally black , Transmissive
    Color Depth 262K/16.7M
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 196.0g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -40 ~ +9(°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package Innolux Original package;
    38 pcs/ctn;
    weight : 8.3Kgs;
    size : 445(L)mm x 370(W)mm x 275(H)mm

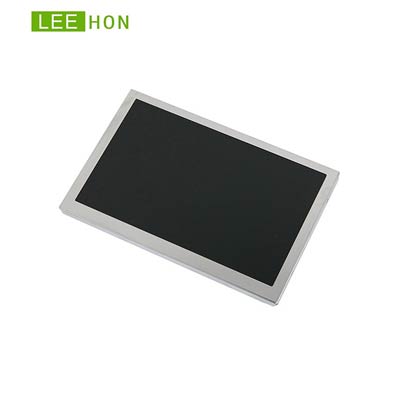

  • Innolux 7 inch tft lcd ips panel G070ACE-LH2 with 800(RGB)x480 WVGA resolution, brightness 500 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and it's storage temperature is  -40 ~ +90 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables
    Industrial 7 inch 800x480 WVGA  Original Innolux TFT LCD Panel IPS Display G070ACE-LH2 with 500nits, LVDS cables And Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
