| Manufacturer | Innolux |
| Model Name | G070Y2-T02 |
| Screen Size | 7 inch |
| Pixel Number | 800(RGB)×480 , WVGA |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm） | 165 × 104 × 6.33 (H×V×D) |
| Pixel Pitch(mm) | 0.1905 × 0.1905 (H×V) |
| Treatment | Anti-glare , Hardness Coating 3H |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 70/7060/60(CR≥10) Left / Right/UP /Down |
| Response time | 5/11 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 262K/16.2M , 72% NTSC |
| Backlight | WLED , 50K hours , without Driver |
| Net Weight | 147g |
| Touchscreen | without |
| Signal Type/interface Type | TTL (1 ch, 6/8-bit) , FPC , 60 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -40 ~ +95 (°C) Operating Temp.: -30 ~ +85 (°C) |

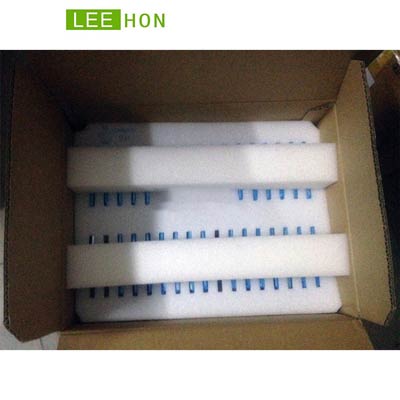

| Package | Innolux Original package; 34 pcs/box; size : 465(L) x 362(W) x 314(H)mm |

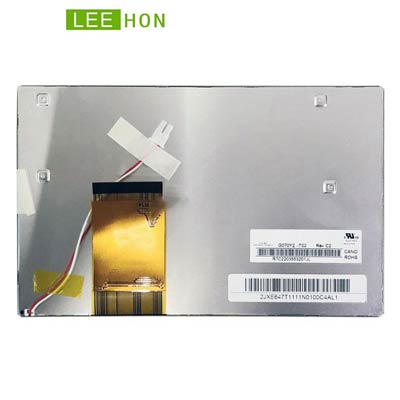

Innolux 7 inch tft lcd panel G070Y2-T02 with 800(RGB)x480 WVGA resolution, brightness 500 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +95 (°C). Based on it's white LED backlight. This model is recommended for industrial and car use.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
Industrial 7 Inch 800x480 WVGA LCD Panel Original Innolux 7" TFT LCD Screen For Car G070Y2-T02 with 500nits, TTL 60pins And Controller board.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
