NJ070NA-23A

Your location: Home > Products > INNOLUX > 7.0" >
  • Module No:NJ070NA-23A
  • Brand:Innolux
  • Size:7 inch
  • Resolution:1024(RGB)×600 , WSVGA
  • Brightness:500 cd/m²
  • Viewing angle:80/80/60/70 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 40 pins , FPC
  • CR:800:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  Innolux
    Model Name NJ070NA-23A
    Screen Size 7 inch
    Pixel Number 1024(RGB)×600 , WSVGA
    Active Area(mm) 154.2144 x 85.92 (W×H)
    Outline(mm) 164.9 x 100 x 4.8 (W×H×D)
    Pixel Pitch(mm) 0.1506 x 0.1432 (W×H)
    Treatment
    Hard Coating
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/60/70(CR≥10) Left / Right/UP /Down
    Response 10/15 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white, Transmissive
    Color Depth 262K/16.7M
    Backlight WLED, 20K hours, without Driver
    Net Weight 135.0g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 40 pins , FPC
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Innolux original package;
    50 pcs/box;
    size : 535(L)mm x 370(W)mm x 265(H)mm

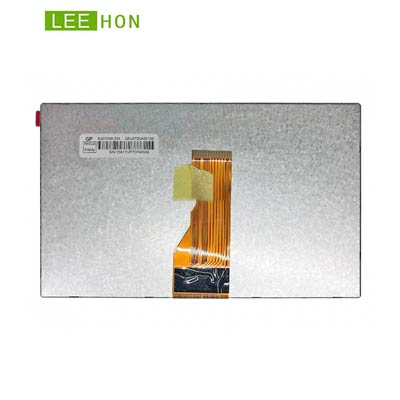

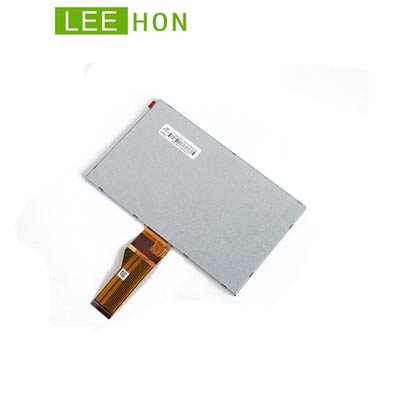

  • Innolux 7 inch tft lcd panel NJ070NA-23A with 1024(RGB)x600 WSVGA resolution, brightness 500 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is  -30 ~ +80 (°C). Based on it's white LED backlight.This model is recommended for Automotive.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Cheap 7 inch 1024*600 WSVGA
    Original Innolux TFT LCD Panel LVDS LCD Display For car NJ070NA-23A with 500nits, touchscreen and controller board.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
