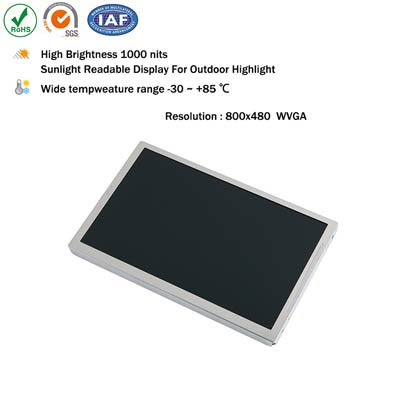

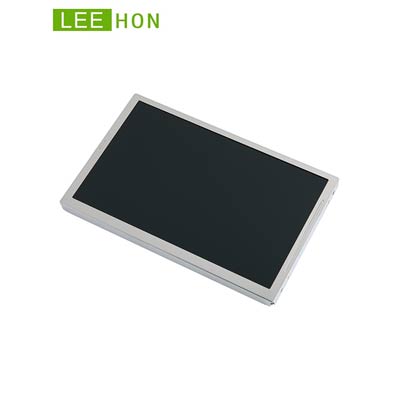

| Manufacturer | IVO |
| Model Name | M080AWP9 R5 |
| Screen Size | 8 inch |
| Pixel Number | 800(RGB)×480 , WVGA |
| Active Area(mm) | 175.20 × 105.12 (H×V) |
| Outline(mm） | 187.40 × 118.05 × 6.98 (H×V×D) |
| Pixel Pitch(mm) | 0.2190 × 0.2190 (H×V) |
| Treatment | Anti-glare+3H |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (CR≥10) Left / Right/UP /Down |
| Response time | 13 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 70% NTSC |
| Backlight | WLED, 30K hours, without Driver |
| Net Weight | 200g |
| Touchscreen | without |
| Signal Type/interface Type | Parallel RGB (1 ch, 8-bit) , 60 pins , FPC |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -40 ~ +95 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
IVO Original package; 40 pcs/ctn |
