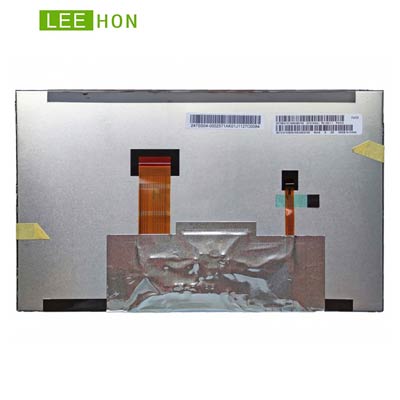

| Manufacturer | IVO |
| Model Name | M101AWAJ R0 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280(RGB)×720 , WXGA |
| Active Area(mm) | 223.68 x 125.82 (H×V) |
| Outline(mm） | 236.08 x 140.25 x 7.45 (H×V×D) |
| Pixel Pitch(mm) | 0.17475 x 0.17475 (H×V) |
| Treatment |
Anti-glare,3H
|
| Luminance | 950 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response time | 25 (Typ.)(Tr/Td) ms |
| Display Mode | IPS , Normally black , Transmissive |
| Color Depth | 16.7M , 75% NTSC |
| Backlight | WLED, 30K hours, without Driver |
| Net Weight | 380g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 40 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -40 ~ +95 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
IVO Original package; 30 pcs/ctn |
