M104GNX1 R1

Your location: Home > Products > IVO > 10.4 >
  • Module No:M104GNX1 R1
  • Brand:IVO
  • Size:10.4 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:350 cd/m²
  • Viewing angle:75/75/75/75 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:900:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  IVO
    Model Name M104GNX1 R1
    Screen Size 10.4 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 211.2 x 158.4 (H×V)
    Outline(mm) 236.0 x 176.9 x 5.7 (H×V×D)
    Pixel Pitch(mm) 0.2063 x 0.2063 (H×V)
    Treatment
    Anti-Glare
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 900 : 1 (Typ.) (TM)
    Viewing Angle 75/75/75/75(CR≥10) Left / Right/UP /Down
    Response time 16 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED , 30K hours , with LED Driver
    Net Weight 290g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package IVO Original package;
    30 pcs/ctn

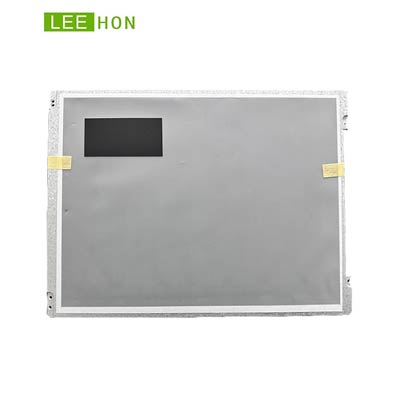

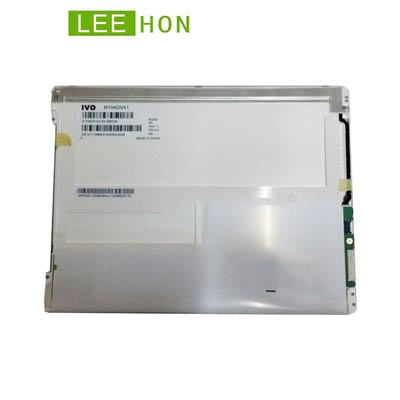

  • IVO 10.4 inch TFT LCD Pane M104GNX1 R1 with1024(RGB)×768 XGA resolution, brightness 350 cd/m². This lcd display is wide working temperature is -20 ~ +70 (°C) and it's wide storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial IVO 10.4 Inch 1024x768 XGA TFT LCD Panel XGA Screen M104GNX1 R1 with 350nit, LVDS 20 pins and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
