M150GNN2 R1

Your location: Home > Products > IVO > 15.0 >
  • Module No:M150GNN2 R1
  • Brand:IVO
  • Size:15 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:420 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 20 pins
  • CR:800:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer  IVO
    Model Name M150GNN2 R1
    Screen Size 15 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 304.13 x 228.10 (H×V)
    Outline(mm) 326.5 x 253.5x 12.5 (H×V×D)
    Pixel Pitch(mm) 0.297x 0.297 (H×V)
    Treatment
    Anti-glare, Hard-Coating (3H)
    Luminance 420 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (CR≥10) Left / Right/UP /Down
    Response time 16 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 16.7M , 70% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 960g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 20 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package IVO Original package;
    14 pcs/ctn;
    weight : 18Kgs;
    size : 406(L) x 331(W) x 343(H) mm

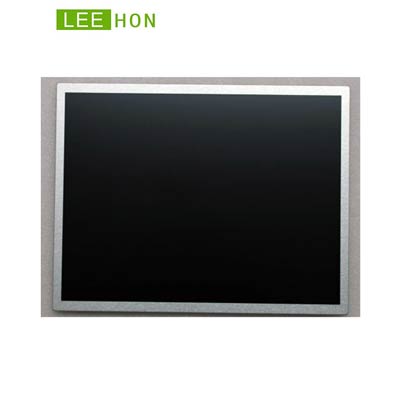

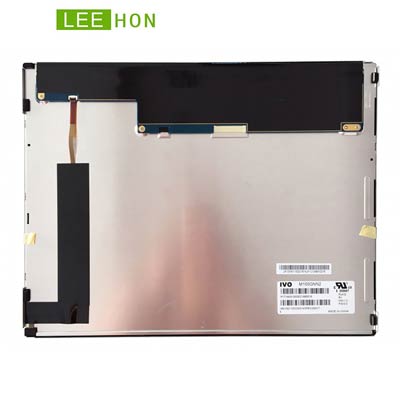

  • IVO 15 inch tft lcd panel M150GNN2 R1 with 1024(RGB)x768 XGA resolution, brightness 420 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 15 inch 1024x768 XGA LCD Panel Original IVO TFT LCD Screen M150GNN2 R1 With 420nits, LVDS cables and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
