TCG058WXLPAPNN-AN30-S

Your location: Home > Products > Kyocera > 5.8" >
  • TCG058WXLPAPNN-AN30-S
  • Module No:TCG058WXLPAPNN-AN30-S
  • Brand:Kyocera
  • Size:5.8"
  • Resolution:1280*768
  • Brightness:800 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:1000:1
  • Operating Temp.: -20 ~70 °C
  • Parameters
  • Description
  • Manufacturer KYOCERA
    Model Name TCG058WXLPAPNN-AN30-S
    Screen Size 5.8”
    Pixel Number 1280(RGB)×768

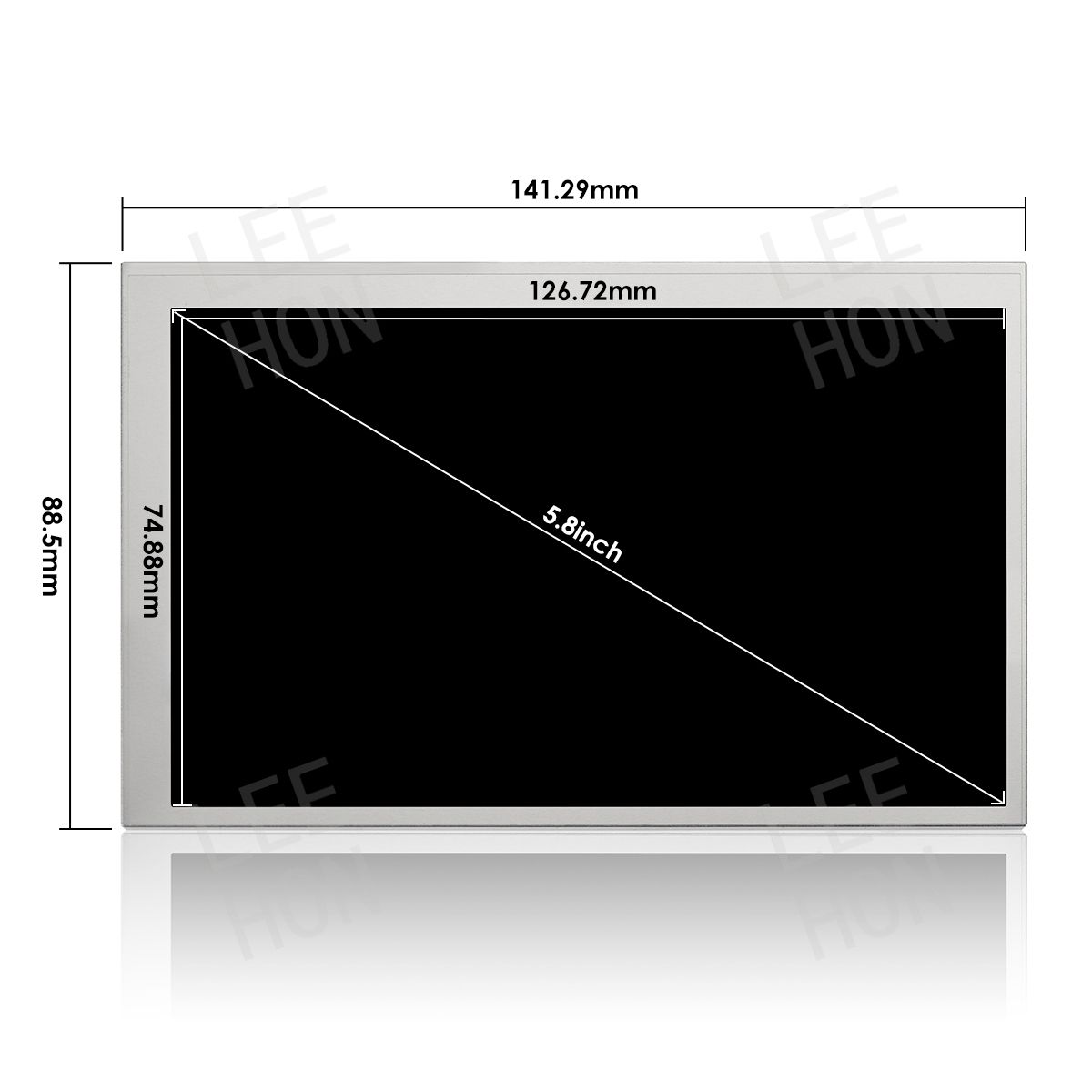

    Active Area(mm) 126.72X74.88mm (H×V)
    Outline(mm) 141.29*88.5*7.49 mm (H×V×D)
    Treatment Anti-glare, Hard coating (3H)
    Luminance 800 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
    Response 18/12 (Typ.)(Tr/Td) ms
    Work Mode IPS, Normal black, transmissive
    Backlight WLED, 50K, Including LED Driver
    Net Weight TBD
    operating frequency 60Hz
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6 /8 -bit), 20 pins
    Voltage Supply 3.3V (Typ.)
    Temperature Storage Temp.: -30 ~80 °C
    Operating Temp.: -20 ~ 70 °C
    Package As request

  • Kyocera LCD TCG058WXLPAPNN-AN30-S is a special application 5.8inch 1280*768 resolution panel.
    It is IPS viewing angle, and sunlight readable for outdoor 800nits brightness. It is also LVDS interface,

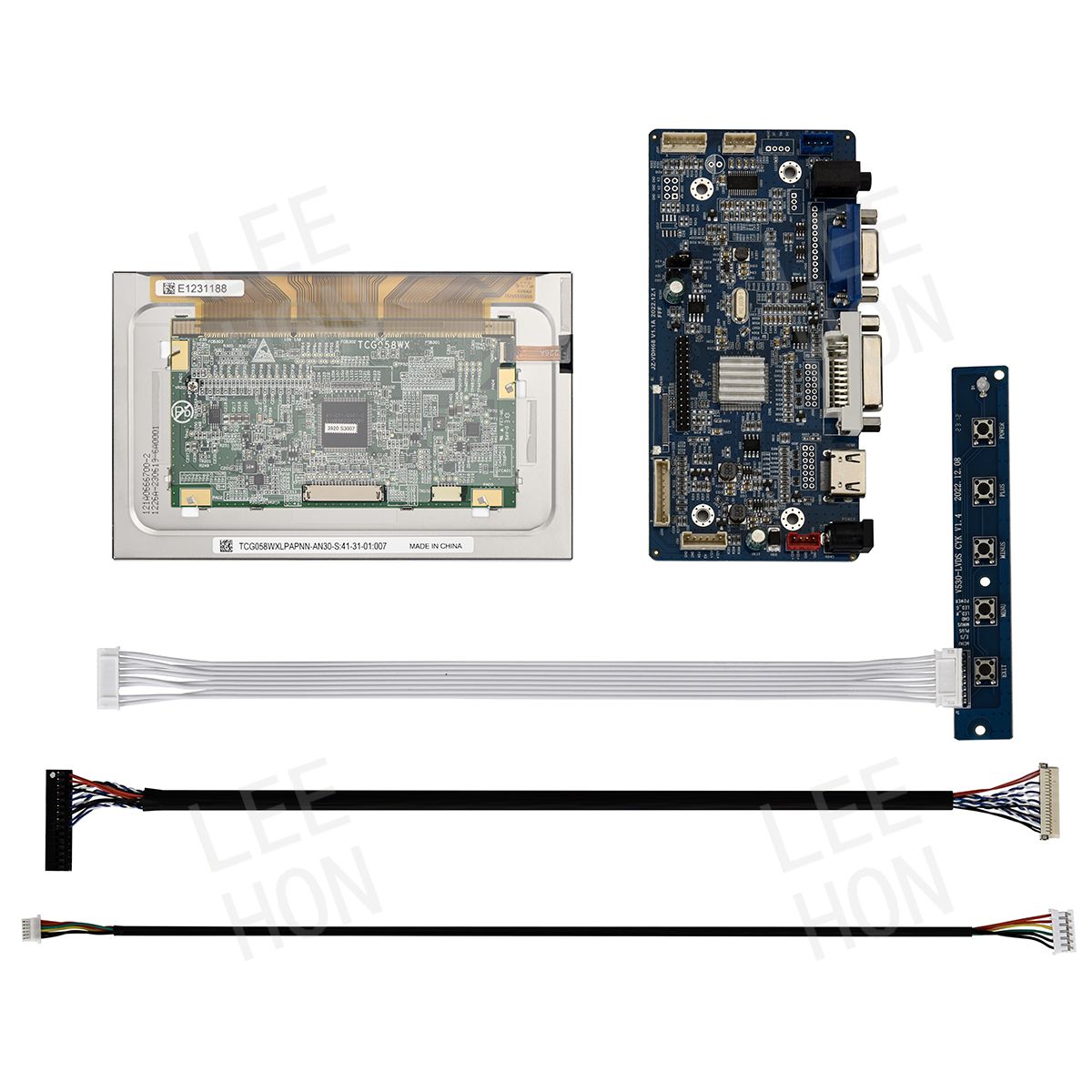

    and 3.3V LVDS power and 12V backlight power input. There is VGA/HDMI/AV/DP/USB controller board for this LCD,
    this 5.8inch is mainly focused on some high-end applications such as driving recorder,airplane etc.
