TCG062HVLDA-G20

Your location: Home > Products > Kyocera > 6.2" >
  • TCG062HVLDA-G20
  • Module No:TCG062HVLDA-G20
  • Brand:Kyocera
  • Size:6.2"
  • Resolution:640*240
  • Brightness:300nits
  • Viewing angle:80/80/80/80
  • Interface:TTL/RGB
  • CR:500:1
  • Operating Temp.: -20 ~70 °C
  • Parameters
  • Description
  • Manufacturer KYOCERA
    Model Name TCG062HVLDA-G20
    Screen Size 6.2”
    Pixel Number 640*240

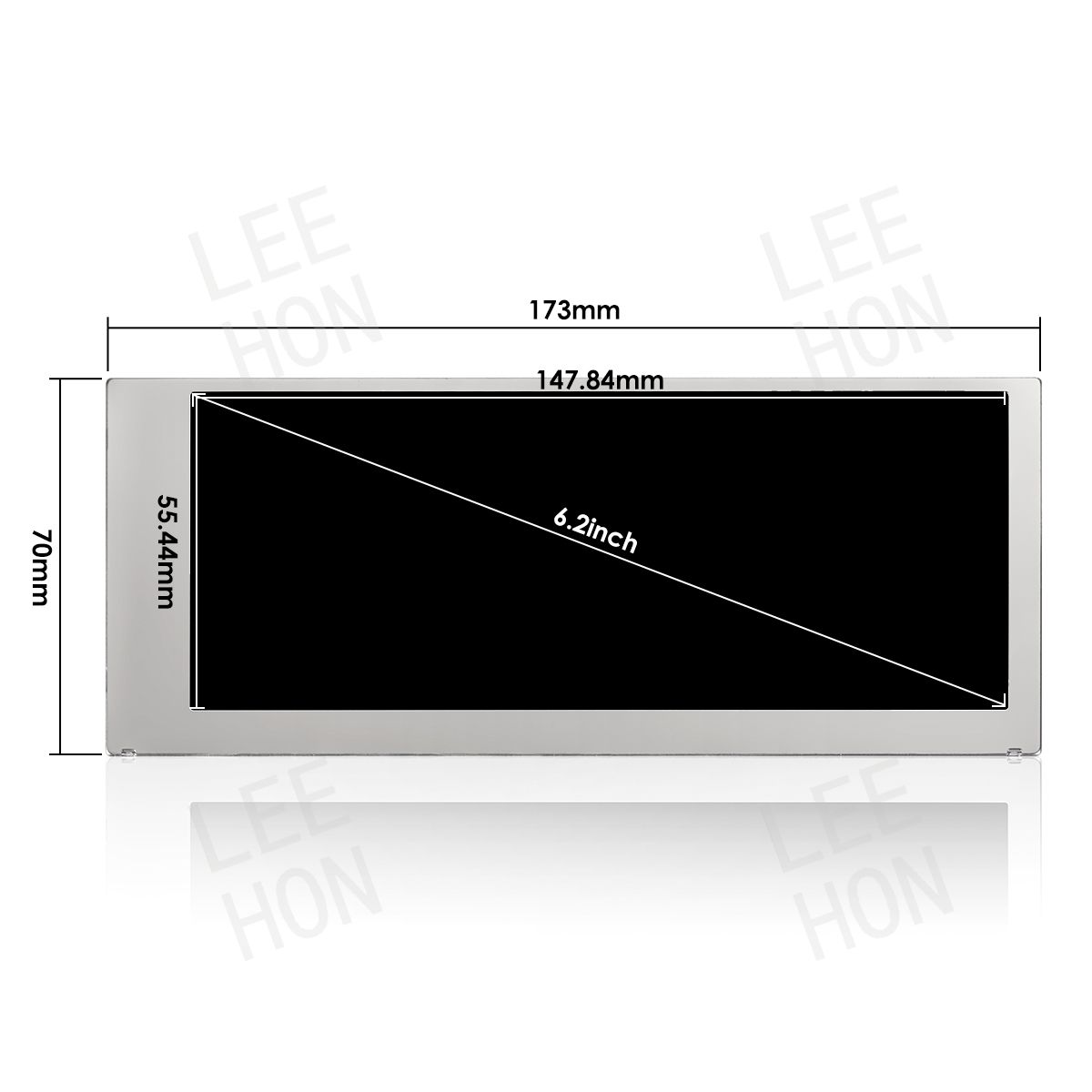

    Active Area(mm) 147.84x55.44mm (H×V)
    Outline(mm) 173*70mm (H×V×D)
    Treatment Anti-glare, Hard coating (3H)
    Luminance 300 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (CR≥10) Left / Right / Up / Down
    Response 15/20 (Typ.)(Tr/Td) ms
    Work Mode TN, Normal white, transmissive
    Backlight WLED, 40K, Including LED Driver
    Net Weight 105g
    operating frequency 60Hz
    Touchscreen without
    Signal Type/interface Type TTL/RGB, 40 pins
    Voltage Supply 3.3V (Typ.)
    Temperature Storage Temp.: -30 ~80 °C
    Operating Temp.: -20 ~ 70 °C
    Package As request

  • Kyocera LCD 6.2inch is a special stretched bar type model, with 640*240 resolution,
    it is 300nits for inside room, and with super long lifftime LED,
    so it is for industrial applications as well,
