TCG084SVLQEPNN-AN40

Your location: Home > Products > Kyocera > 8.4" >
  • TCG084SVLQEPNN-AN40
  • Module No:TCG084SVLQEPNN-AN40
  • Brand:Kyocera
  • Size:8.4 inch
  • Resolution:800*600
  • Brightness:1200nits
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:750 : 1
  • Operating Temp.: -30 ~80 °C
  • Parameters
  • Description
  • Manufacturer KYOCERA
    Model Name TCG084SVLQEPNN-AN40
    Screen Size 8.4”
    Pixel Number 800(RGB)×600

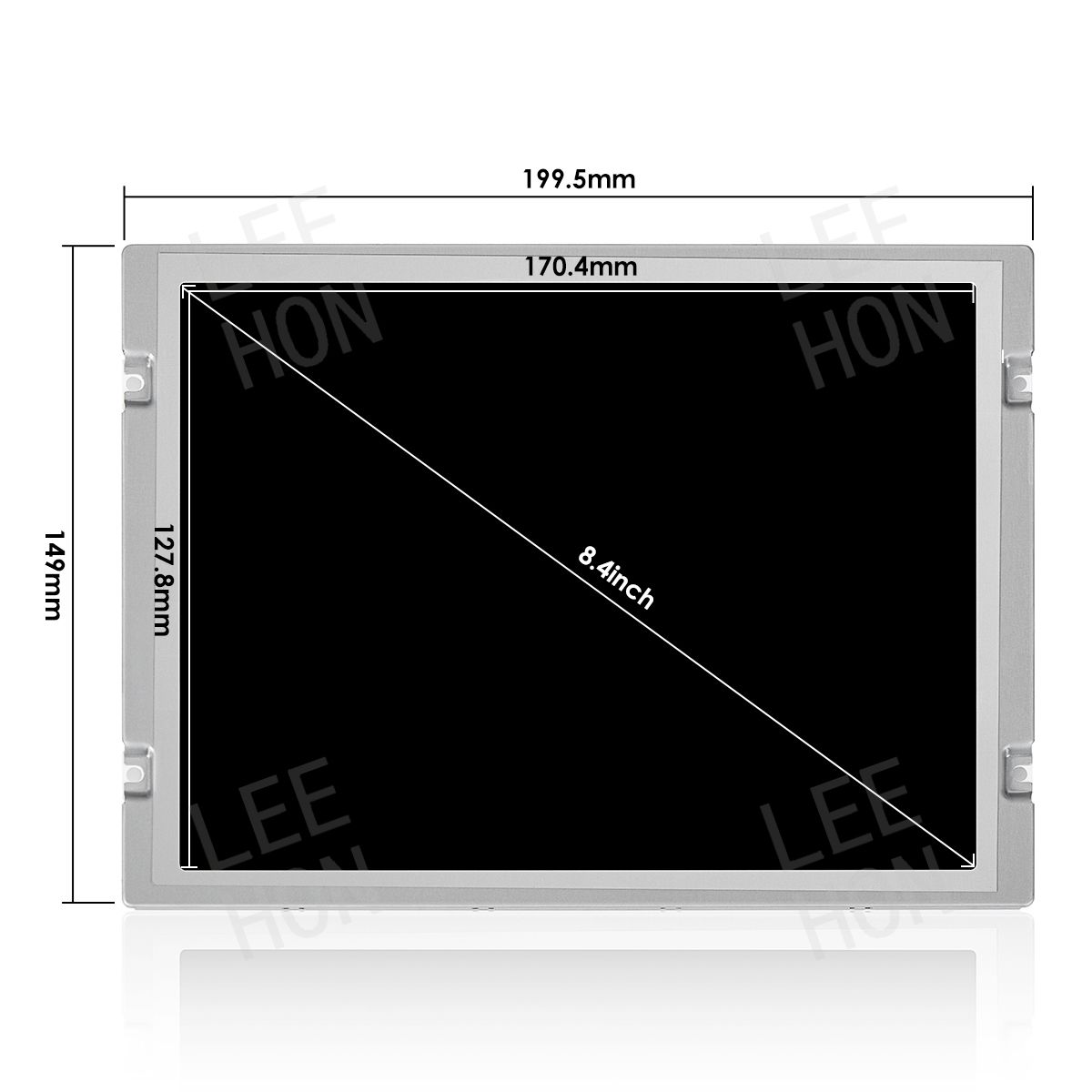

    Active Area(mm) 170.4×127.8 mm (H×V)
    Outline(mm) 199.5×147.4 ×12 mm(H×V×D)
    Bezel Area(mm) 174.4×131.8mm(H×V)
    Treatment Anti-glare, Hard coating (3H)
    Luminance 1200 cd/m² (Typ.)
    Contrast Ratio 750 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
    Response 18/12 (Typ.)(Tr/Td) ms
    Work Mode AMV, Normal black,  transmissive
    Color Depth 16.2M , 51% NTSC
    Backlight WLED ,70K Hours
    Net Weight 365g (Typ.)
    operating frequency 60Hz
    Touchscreen With CTP/RTP
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 30 pins ,terminal
    Voltage Supply 3.3V (Typ.)
    Temperature Storage Temp.: -30 ~80 °C
    Operating Temp.: -30 ~ 80 °C
    Package As request

  • Kyocera 8.4inch LCD is a high-end area used screen, IPS panel, with super wide temperature, and also high brightness of 1200nits,
    which can be used under sunshine. can be seen clearly. There is touch screen for this LCD, both capacitive touch, and resistive touch,

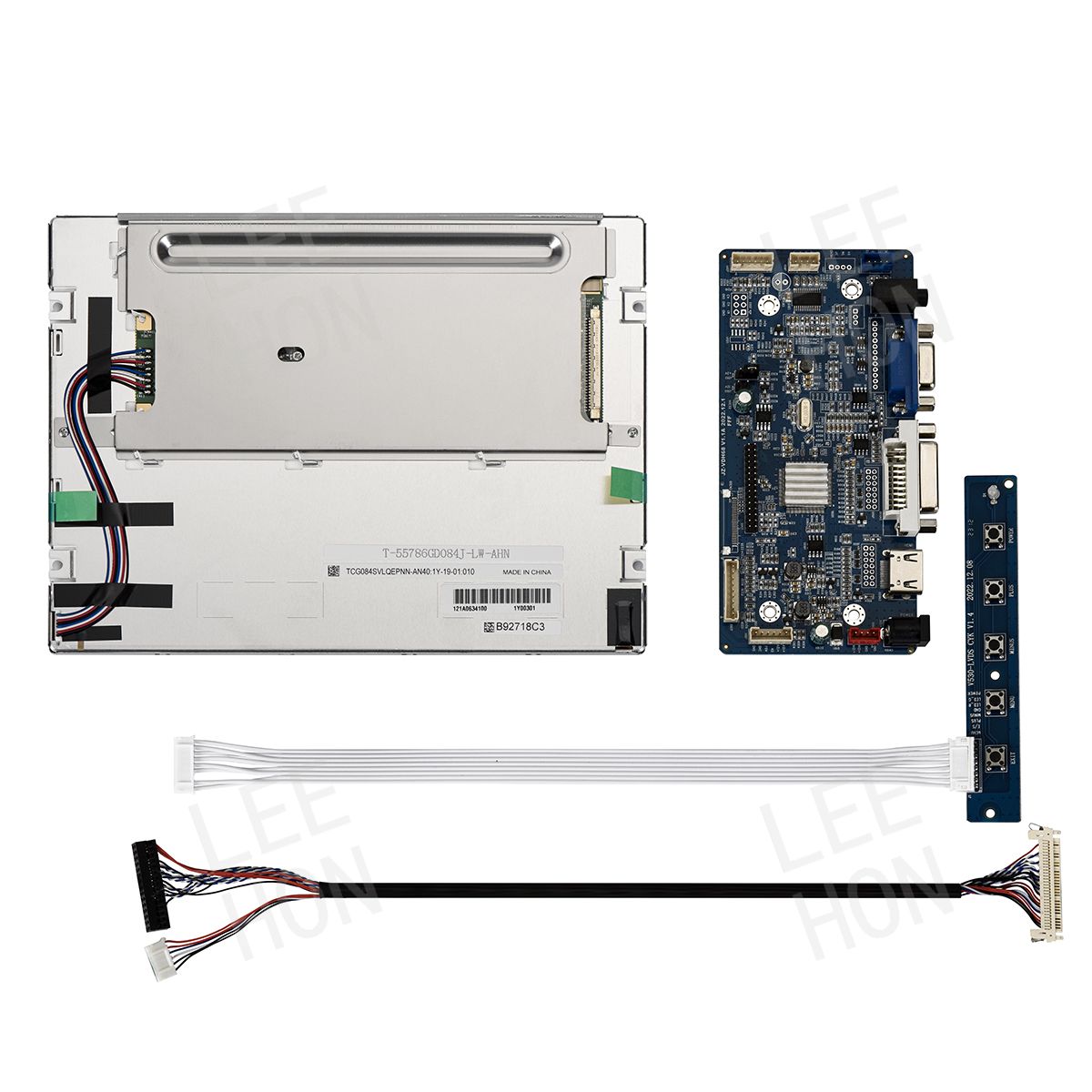

    and also controller board, can be VGA/HDMI/DVI/USB/AV/BNC. With fast delivery, and competitive price.
