| Manufacturer | Kyocera |

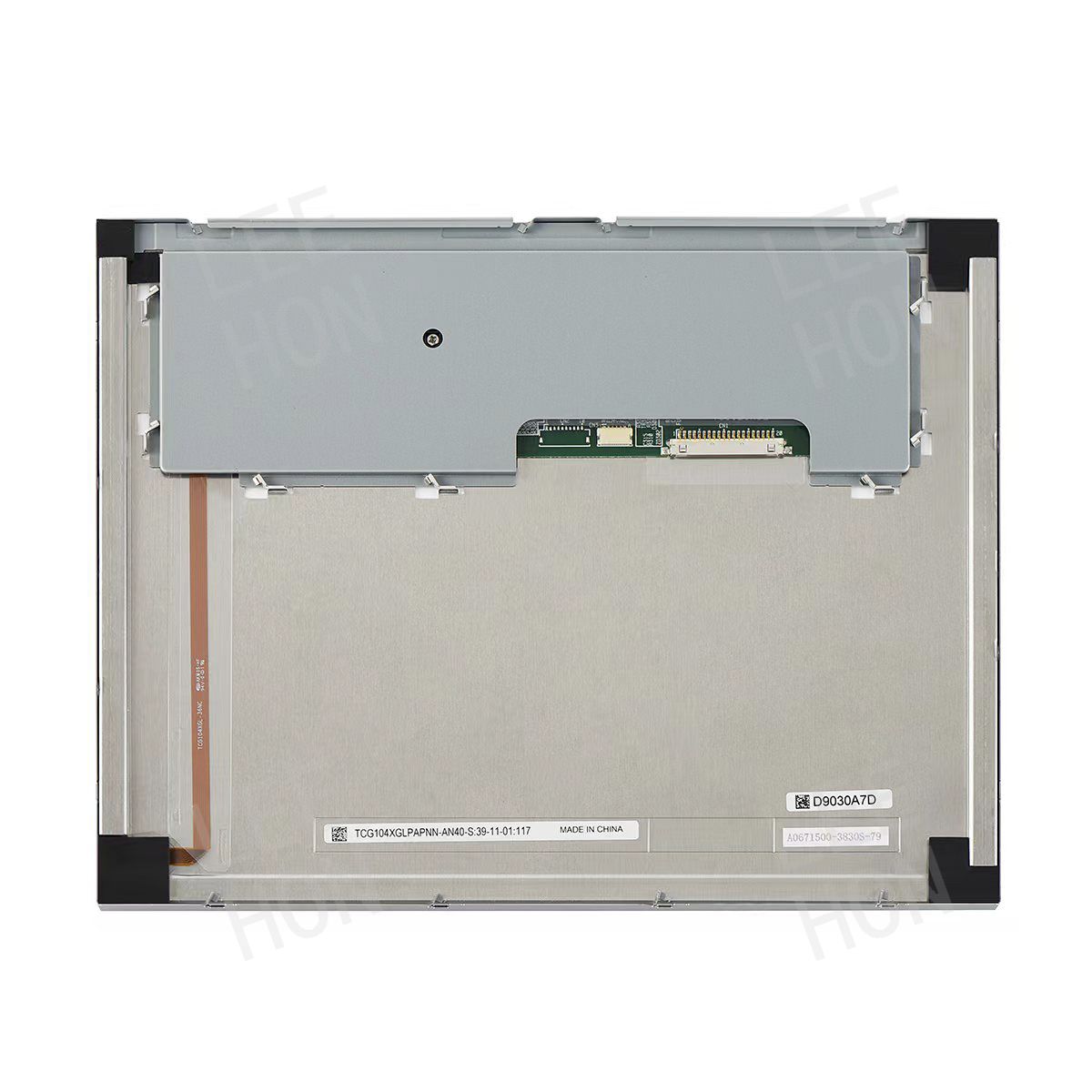

| Model Name | TCG104XGLPAPNN-AN40 |
| Screen Size | 10.4 inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 210.432 × 157.824 (H×V) |
| Outline(mm） | 230 × 180.2 × 10.5 (H×V×D) |
| Bezel Area(mm) | 0.0685 × 0.2055 (H×V) |
| Treatment | Anti-glare |
| Luminance | 1300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (CR≥10) Left / Right / Up / Down |
| Response | 18/12 (Typ.)(Tr/Td) ms |
| Work Mode | AWV , Normally black , transmissive |
| Color Depth | 262K/16.7M , 51% NTSC |
| Backlight | WLED , 70K hours , with LED Driver |
| Net Weight | 480g (Typ.) |
| operating frequency | 60Hz |
| Touchscreen | without |

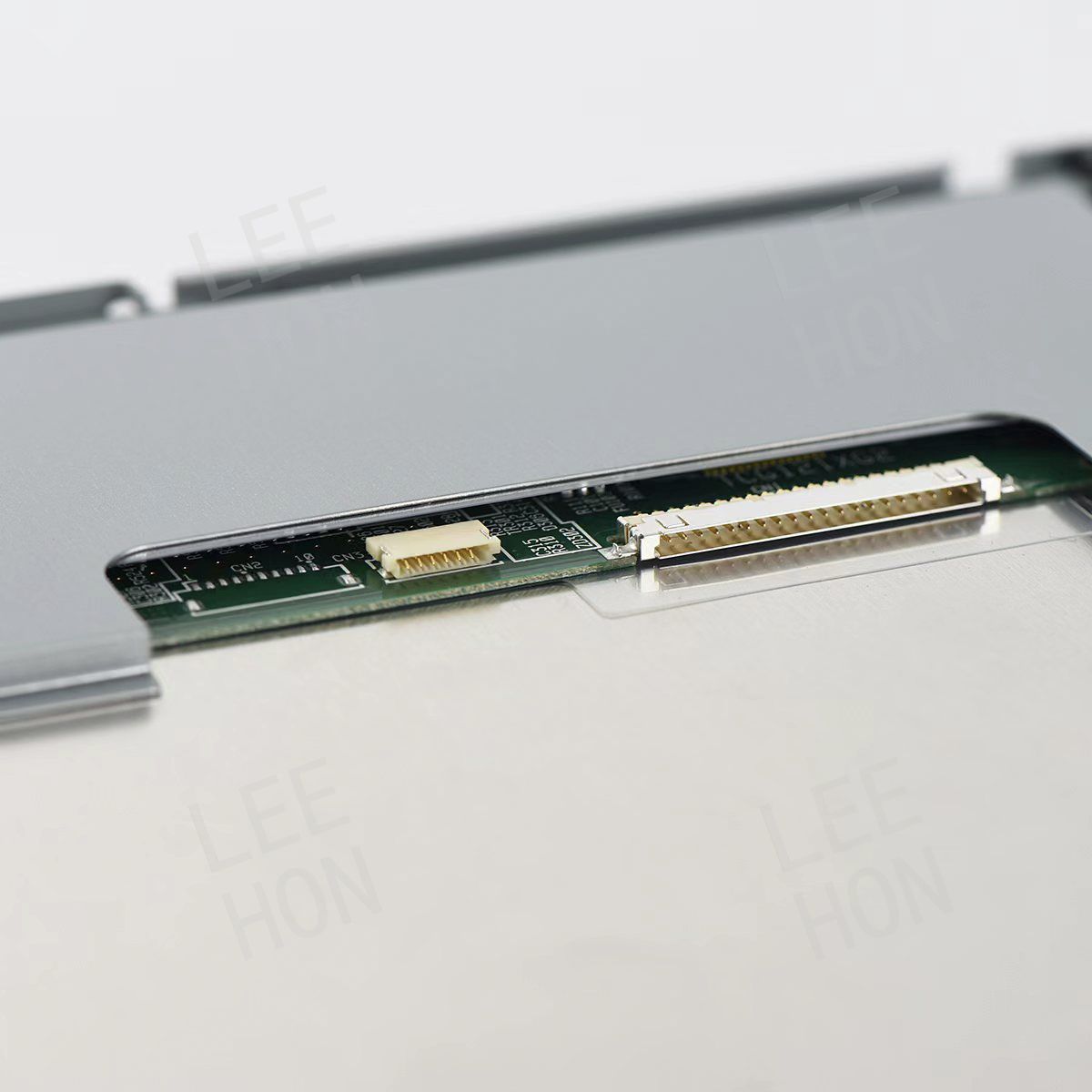

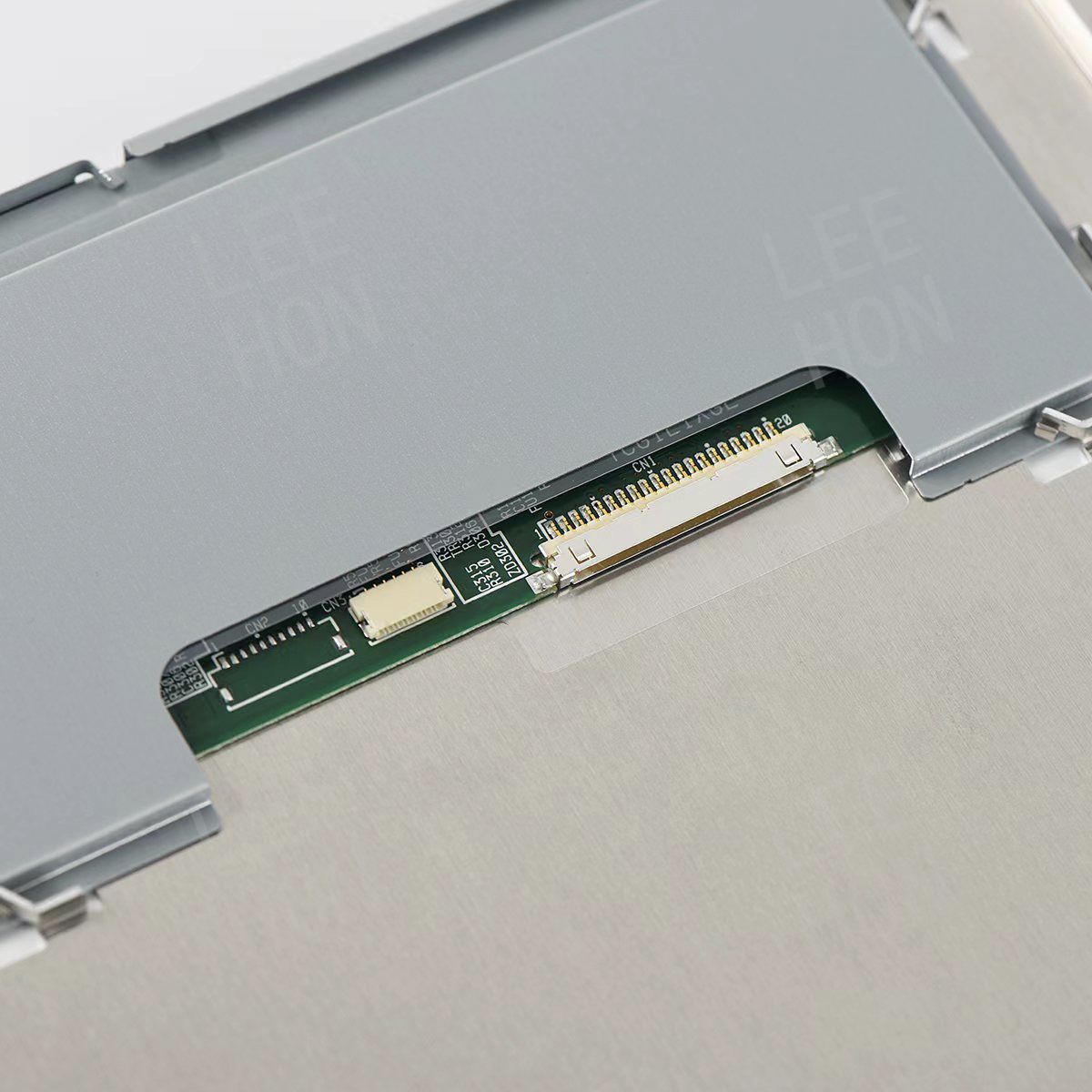

| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | +3.3 V (Typ.) |
| Temperature |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package | Kyocera original package |
