TCG121XGLPBPNN-AN40

Your location: Home > Products > Kyocera > 12.1" >
  • Module No:TCG121XGLPBPNN-AN40
  • Brand:Kyocera
  • Size:12.1 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:1200 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:750:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer  Kyocera
    Model Name TCG121XGLPBPNN-AN40
    Screen Size 12.1 Inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 245.76 × 184.32 (H×V)
    Outline(mm) 260.5 × 203 × 10.4 (H×V×D)
    Pixel Pitch(mm) 0.08 × 0.24 (H×V)
    Treatment Anti-Glare
    Luminance 1200 cd/m² (Typ.)
    Contrast Ratio 750 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (CR≥10) Left / Right/UP /Down
    Response time 18/12 (Typ.)(Tr/Td) ms
    Display Mode AWV , Normally black , Transmissive
    Color Depth 262K/16.2M , 51% NTSC
    Backlight WLED , 70K hours , with LED Driver
    Net Weight 555g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -30 ~ +8(°C)
    Package Kyocera Original package

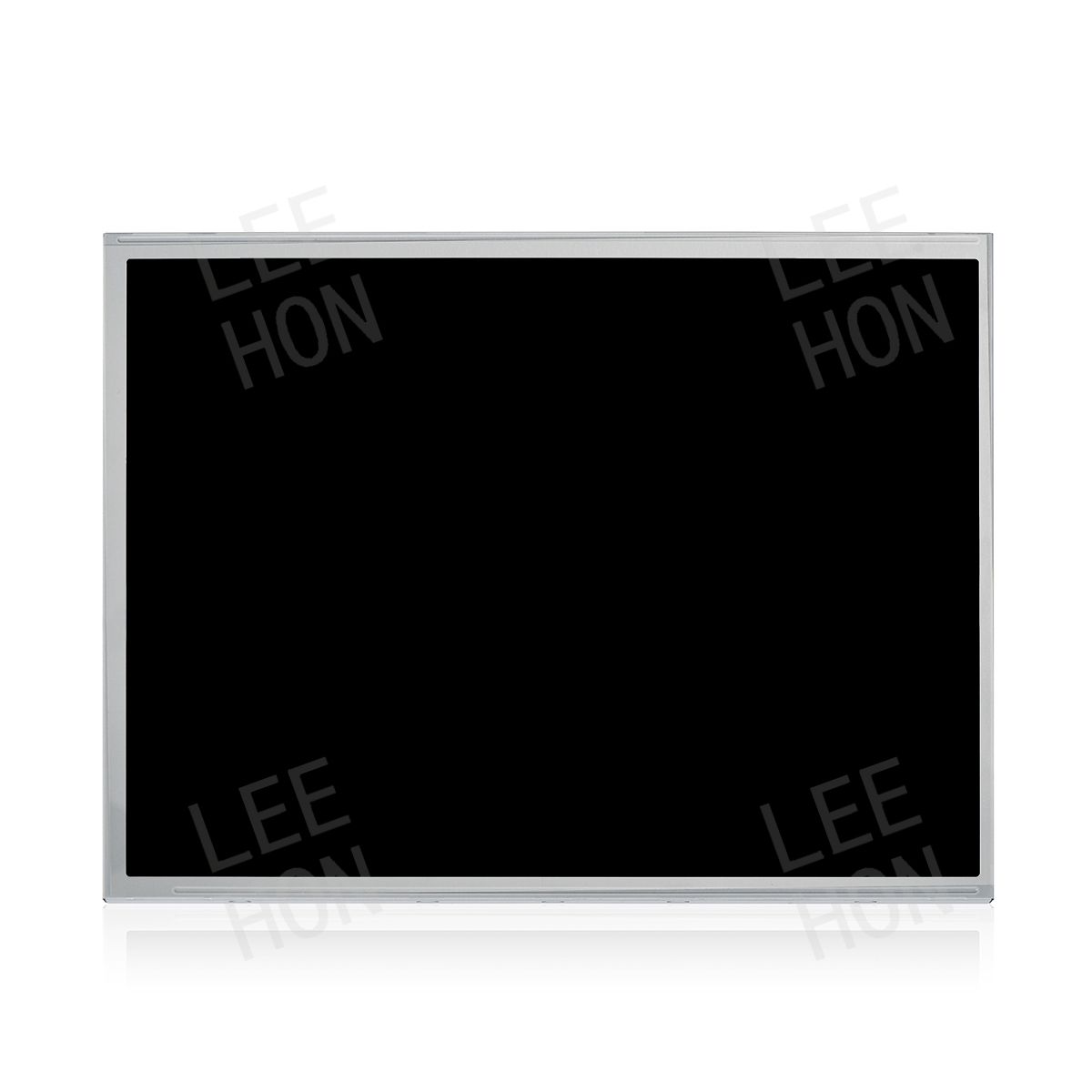

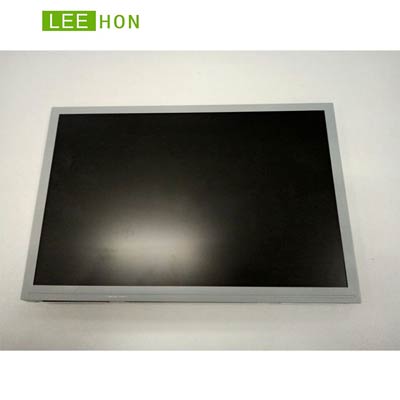

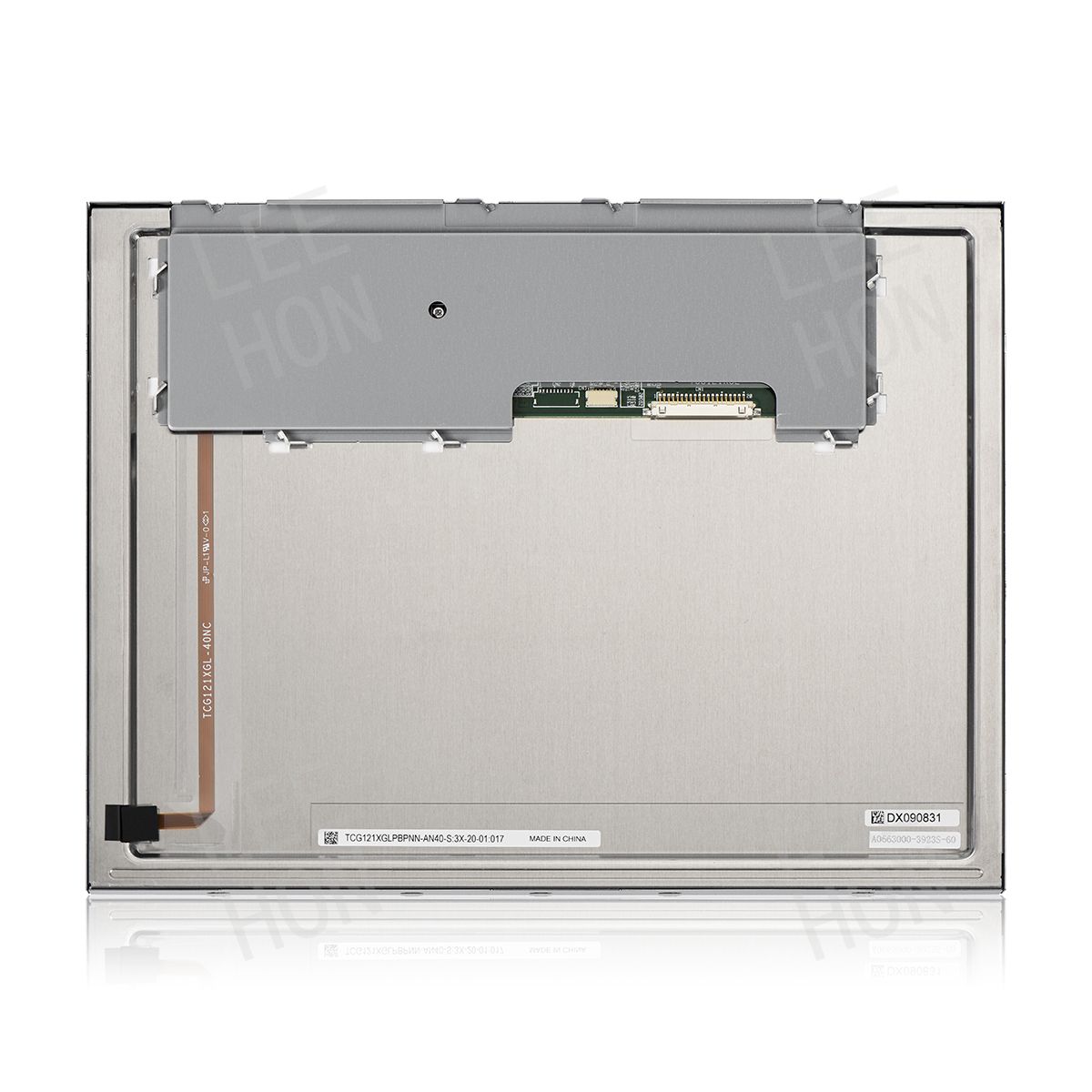

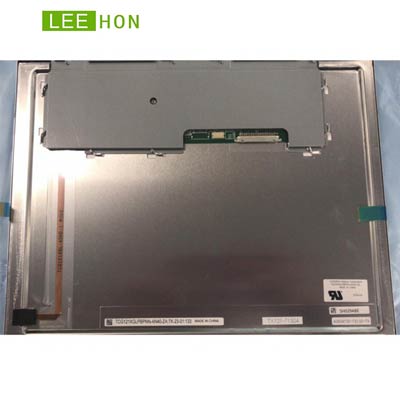

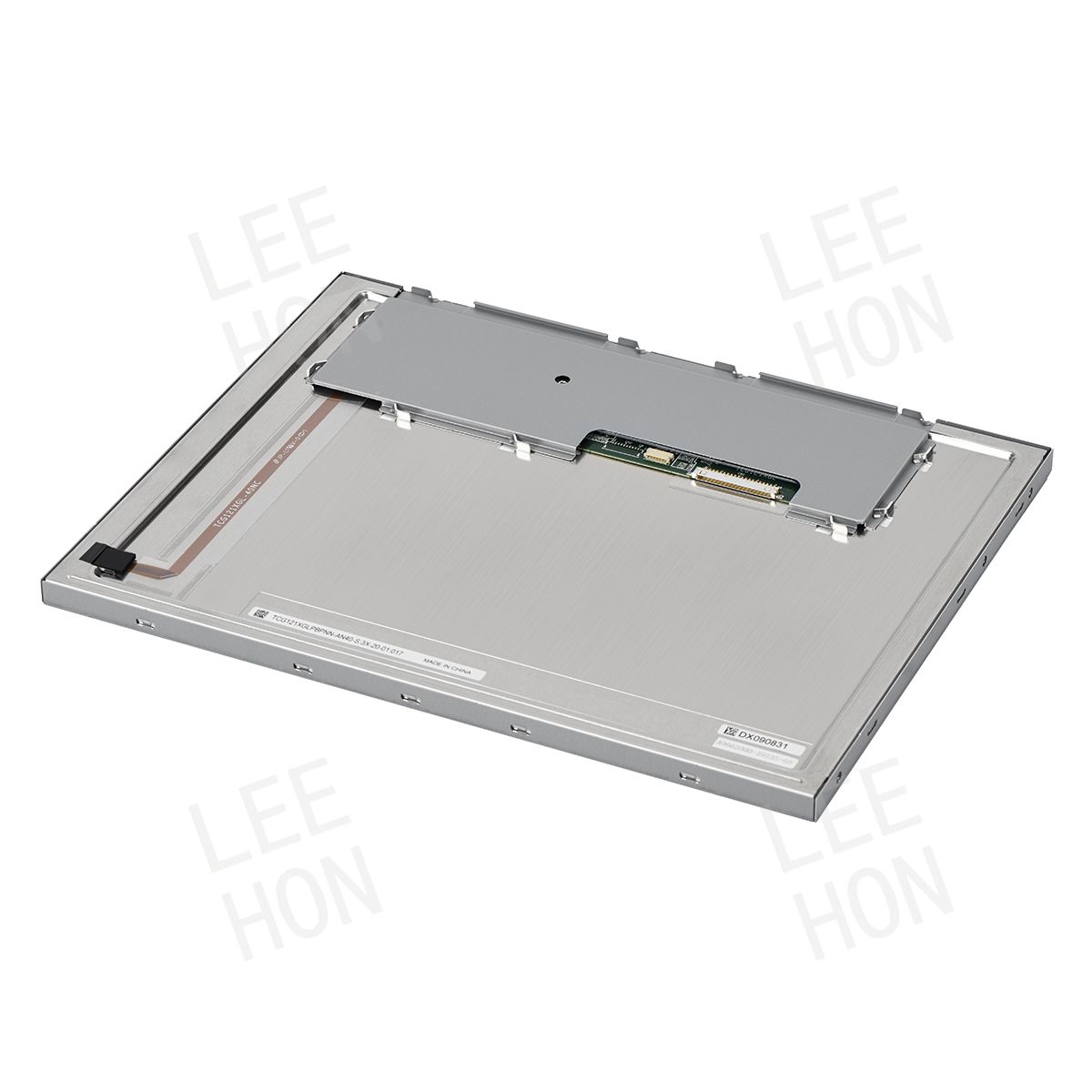

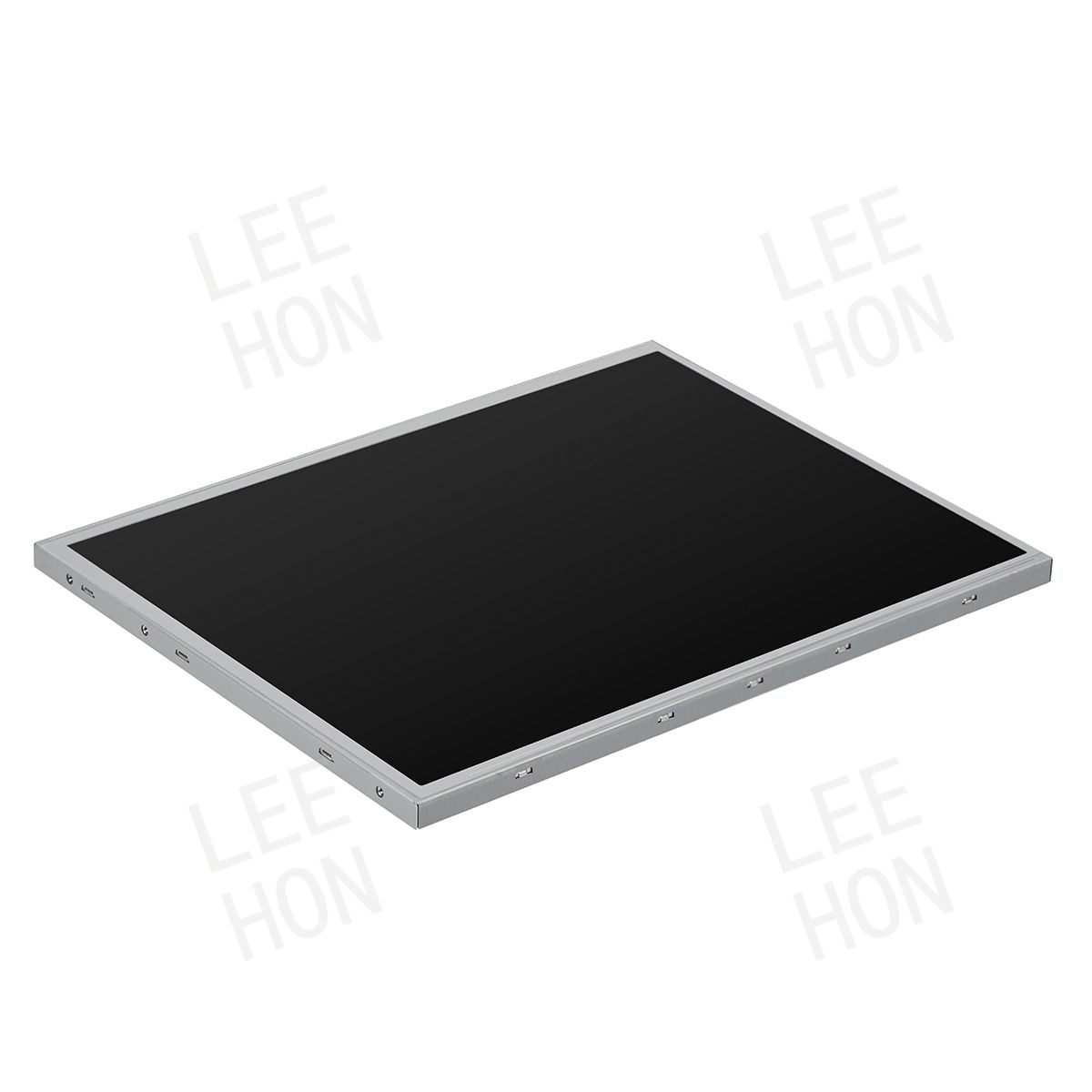

    TCG121XGLPBPNN-AN40
    TCG121XGLPBPNN-AN40
    TCG121XGLPBPNN-AN40
    TCG121XGLPBPNN-AN40
    TCG121XGLPBPNN-AN40
    TCG121XGLPBPNN-AN40


  • Kyocera 12.1 inch tft lcd ips panel TCG121XGLPBPNN-AN40 with 1024(RGB)x7680 XGA resolution, brightness 1200 cd/m²(High Brightness). This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial and Outdoor Highlight use.

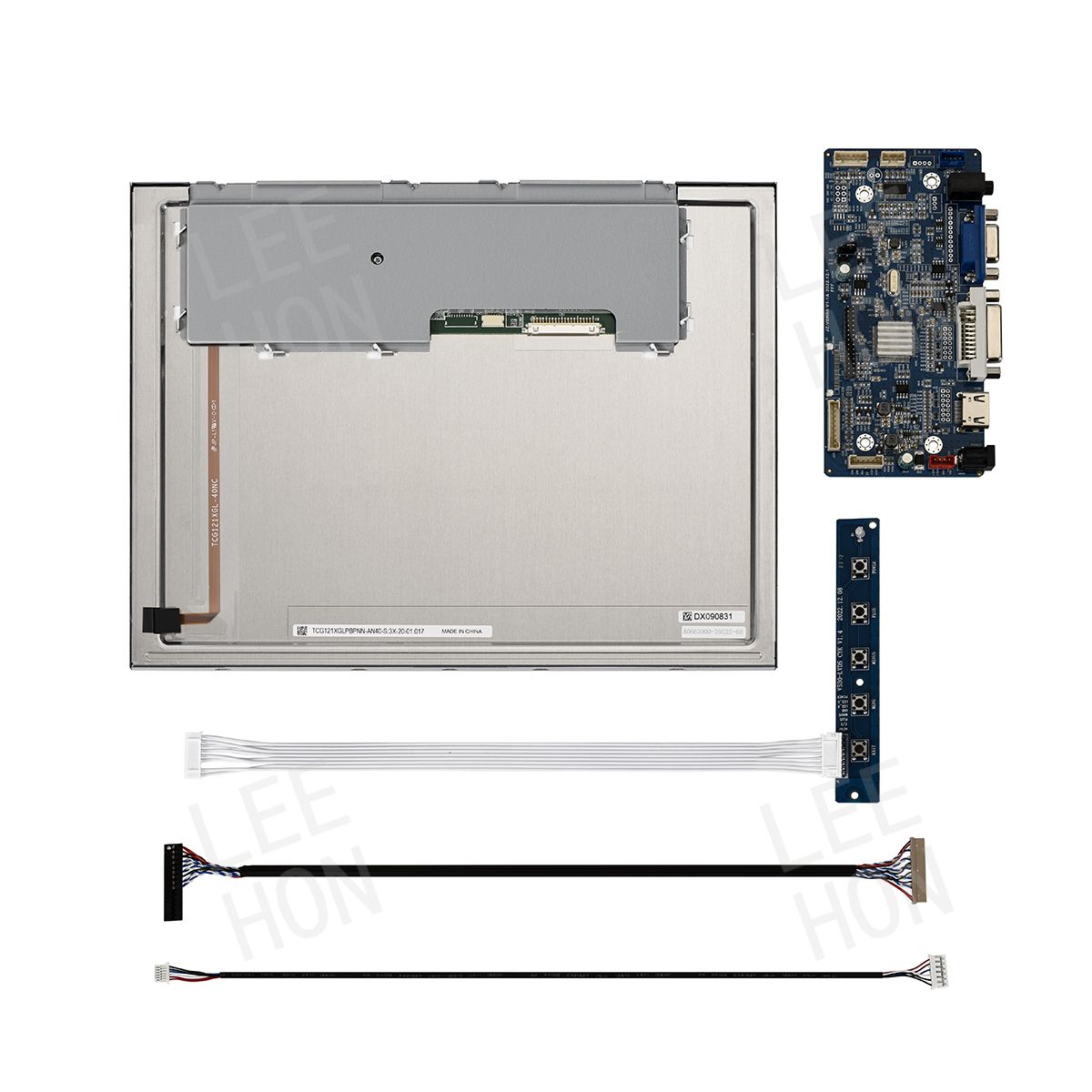

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 12.1 Inch 1024*768 XGA LCD Panel Original Kyocera 12.1" TFT IPS Display For Outdoor TCG121XGLPBPNN-AN40 with 1200nits, Full view angle and 20 pins LVDS.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
