TCG070WVLQGPNN-AN40

Your location: Home > Products > Kyocera > 7" >
  • Module No:TCG070WVLQGPNN-AN40
  • Brand:Kyocera
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:1000 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:750 : 1
  • Operating Temp.: -30 ~ +80(°C)
  • Parameters
  • Description
  • Manufacturer Kyocera
    Model Name TCG070WVLQGPNN-AN40
    Screen Size 7 inch
    Pixel Number 800(RGB)×480 , WVGA

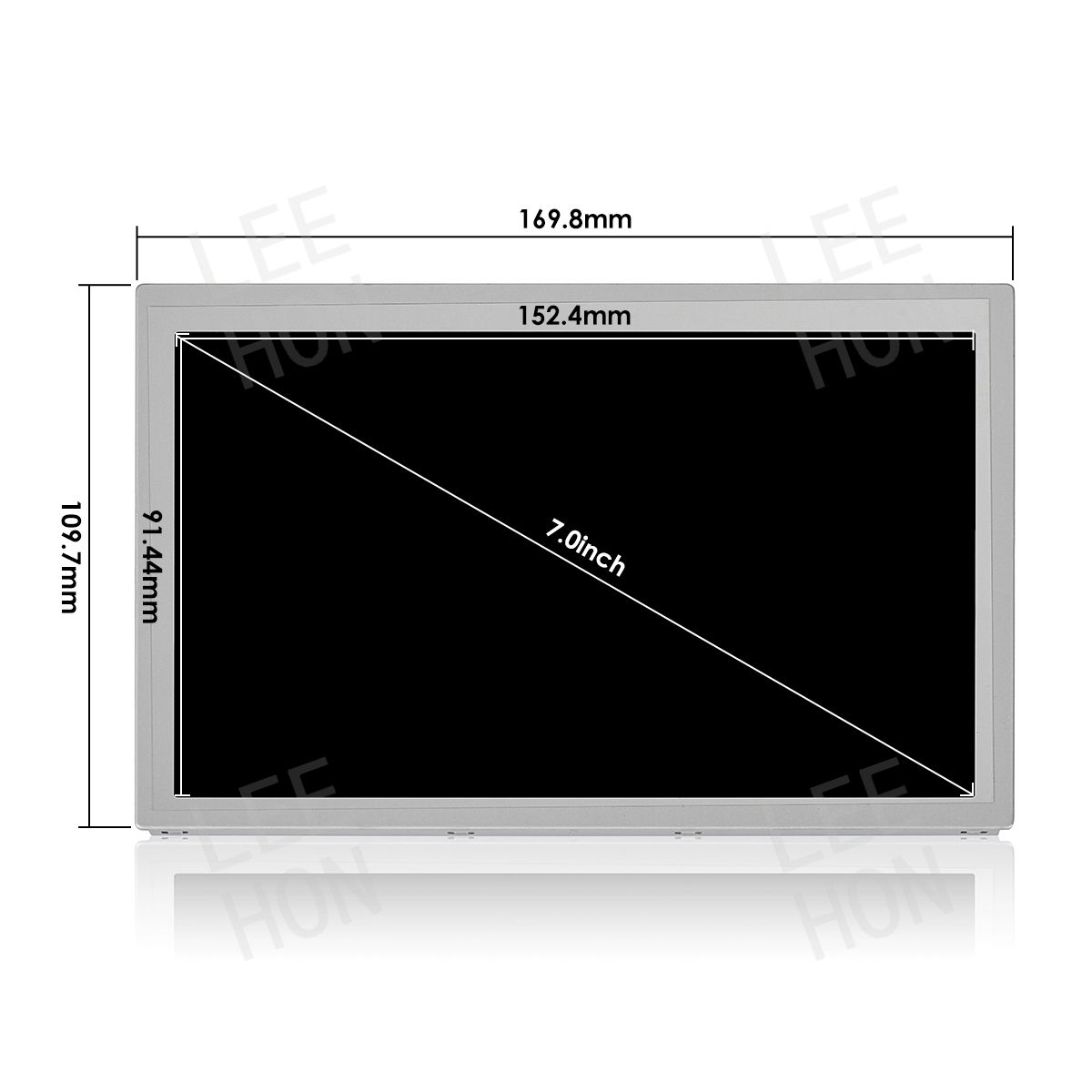

    Active Area(mm) 152.4 × 91.44 (H×V)
    Outline(mm) 169.8 × 109.7 × 9.7 (H×V×D)
    Bezel Area(mm) 154.4 × 93.4 (H×V)
    Treatment Anti-glare , Hard coating (3H)
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 750 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (CR≥10) Left / Right / Up / Down
    Response 18/12 (Typ.)(Tr/Td) ms
    Work Mode AWV,often black display, transmissive
    Color Depth 262K/16.2M , 50% NTSC
    Backlight WLED , 70K hours , with LED Driver
    Net Weight 230g (Typ.)
    operating frequency 60Hz
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3V  (Typ.)
    Temperature Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -30 ~ +80 (°C)
    Package Kyocera Original package

  • Kyocera 7 inch tft lcd ips panel TCG070WVLQGPNN-AN40 with 800(RGB)x480 WVGA resolution, brightness 1000 cd/m²(High Brightness). This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor highlight use.

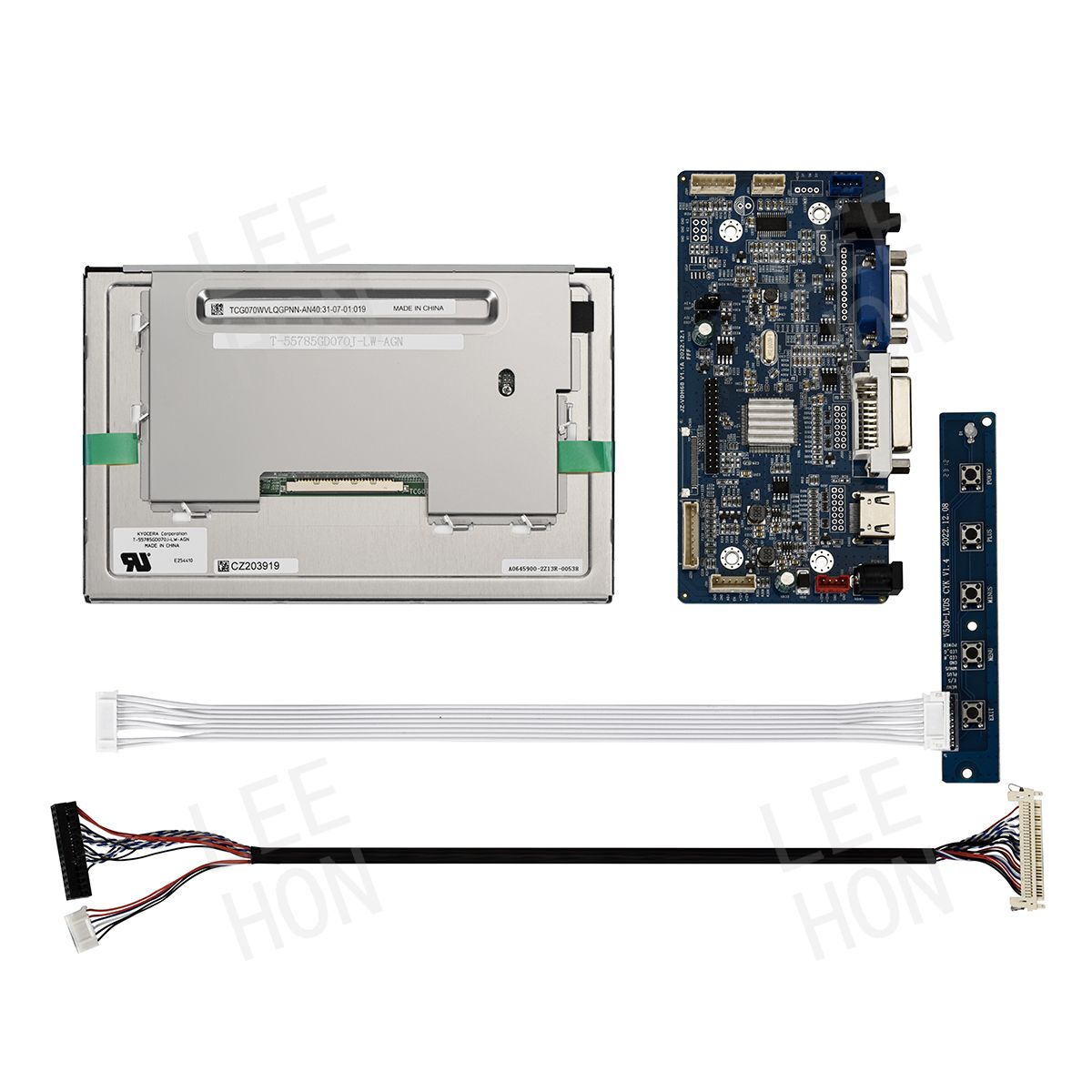

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 7 Inch 800*480 WXGA LCD Panel Original Kyocera 7" TFT LCD IPS Display For Outdoor TCG070WVLQGPNN-AN40 with 1000nits Sunlight Readable and 30pins LVDS.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
