| Manufacturer | TIANMA |
| Model Name | TM035KDH03-79 |
| Screen Size | 3.5 inch |
| Pixel Number | 320(RGB)×240 , QVGA |
| Active Area(mm) | 70.08 x 52.58 (H×V) |
| Outline(mm） | 76.9 x 63.9 x 3.15 (H×V×D) |
| Pixel pitch(mm) | 0.219 x 0.219 (H×V) |
| Treatment | Anti--Glare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
| Response | 20 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED, 20K hours, without LED Driver |
| Net Weight | 30.0g |
| Touchscreen | without |
| Signal Type/interface Type | Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC, 54 pins |
| Voltage Supply | 3.3V |
| Max. Ratings | Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package | TIANMA original package; 252 pcs/ctn; weight : 13.24Kgs; size : 544(L)mm x 365(W)mm x 250(H)mm. |

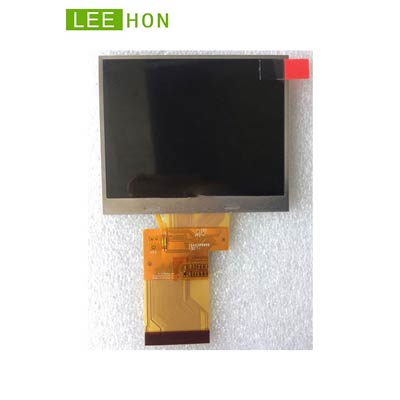

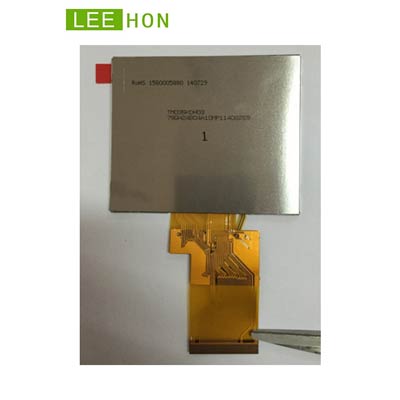

TIANMA 3.5 inch tft lcd panel TM035KDH03-79 with 320x240 QVGA resolution , brightness 300 cd/m².This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C).Based on its white LED backlight.This model is recommended for industrial use.
Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
Original 3.5 inch 320x240 QVGA TIANMA TFT LCD Screen TM035KDH03-79 with 300 nits, FPC 54 pin and Customizable touch screen and controller board.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
