TM050RDH03-41

Your location: Home > Products > TIANMA > 5.0 >
  • Module No:TM050RDH03-41
  • Brand:TIANMA
  • Size:5 inch
  • Resolution:800(RGB)×480 WVGA
  • Brightness:250 cd/m²
  • Viewing angle:70/70/50/70 (Typ.)
  • Interface:Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
  • CR:600:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM050RDH03-41
    Screen Size 5 inch
    Pixel Number 800(RGB)×480, WVGA
    Active Area(mm) 108.00 x 64.80 (H×V)
    Outline(mm) 120.80 x 75.80 x 3.10 (H×V×D)
    Pixel Pitch(mm) 0.135 x 0.135 (H×V)
    Treatment
    Anti-Glare(3H)
    Luminance 250 cd/m² (Typ.)
    Contrast Ratio 600 : 1 (Typ.) (TM)
    Viewing Angle 70/70/50/70(CR≥10) Left / Right/UP /Down
    Response 20 (Typ.)(Tr/Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED, 20K hours,without Driver
    Net Weight 57.0g
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package TIANMA Original Package;
    112 pcs/ctn;
    weight : 9.45Kgs;
    size : 530(L)mm x 350(W)mm x 250(H)mm

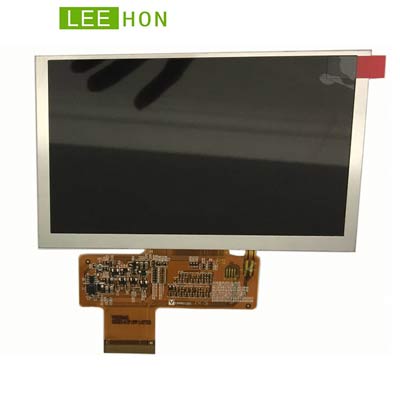

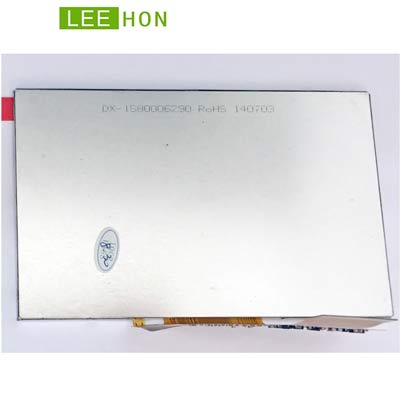

  • TIANMA 5 inch tft lcd panel TM050EDH03-41 with 800x480 WVGA resolution , brightness 250 cd/m².This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
    Original 5 inch TIANMA TFT LCD Screen For Industry, GPS and MP3 TM050EDH03-41 with 250 nits, FPC 40 pins And driver board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
