TM050RDZG03-00

Your location: Home > Products > TIANMA > 5.0 >
  • Module No:TM050RDZG03-00
  • Brand:TIANMA
  • Size:5 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:1000 cd/m²
  • Viewing angle:80/80/70/80 (Typ.)
  • Interface:Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
  • CR:750:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM050RDZG03-00
    Screen Size 5 inch
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 108.00 × 64.80 (H×V)
    Outline(mm) 120.70 × 77.80 × 5.7 (H×V×D)
    Pixel Pitch(mm) 0.135 × 0.135 (H×V)
    Treatment AG
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 750 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/80 (CR≥10) Left / Right/UP /Down
    Response time 20/30 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED , 50K hours
    Net Weight TBD
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -40 ~ +9(°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package Kyocera Original package

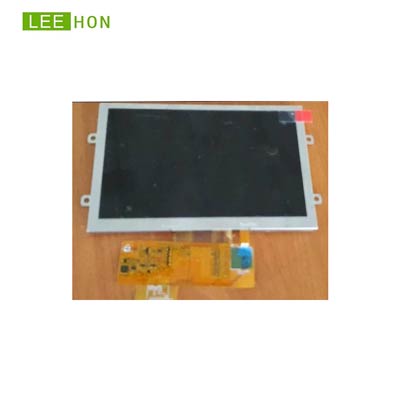

  • TIANMA 5 inch tft lcd panel TM050RDZG03-00 with 800x480 WVGA resolution , brightness 1000 cd/m²(High brightness). This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +90 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor sunlight readable use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    High brightness 1000 nits display 5 inch 800*480 WVGA LCD Screen Original TIANMA TFT Display TM050RDZG03-00 support RGB interface.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
