P0650VGF1MA10

Your location： Home
  • Products
  • TIANMA
  • 6.5
    • Module No：P0650VGF1MA10
    • Brand：TIANMA
    • Size：6.5 inch
    • Resolution：640(RGB)×480 , VGA
    • Brightness：800 cd/m²
    • Viewing angle：85/85/85/85 (Typ.)
    • Interface：LVDS (1 ch, 6/8-bit) , 20 pins
    • CR：900:1
    • Operating Temp.: -30 ~ +80 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name P0650VGF1MA10
      Screen Size 6.5 inch
      Pixel Number 640(RGB)×480 , VGA
      Active Area(mm) 132.48 x 99.36 (H×V)
      Outline(mm） 153.0 x 118.0 x 10.9 (H×V×D)
      Pixel Pitch(mm)
      		 0.207 x 0.207 (H×V)
      Treatment AG
      Luminance 800 cd/m² (Typ.)
      Contrast Ratio 900 : 1 (Typ.) (TM)
      Viewing Angle 85/85/85/85 (Typ.)
      Response 25 (Typ.)(Tr/Td) ms
      Work Mode SFT, Normally black, Transmissive
      Color Depth 262K/16.7M , 99% sRGB
      Backlight WLED, 70K hours,with LED Driver
      Net Weight 161g
      Touchscreen without
      Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
      Voltage Supply 3.3V
      Max. Ratings Storage Temp.: -40 ~ +90 (°C)
      Operating Temp.: -30 ~ +80 (°C)
      Package TIANMA Original Package;
      40 pcs/ctn;
      weight : 11.364Kgs;
      size : 544(L)mm x 365(W)mm x 250(H)mm

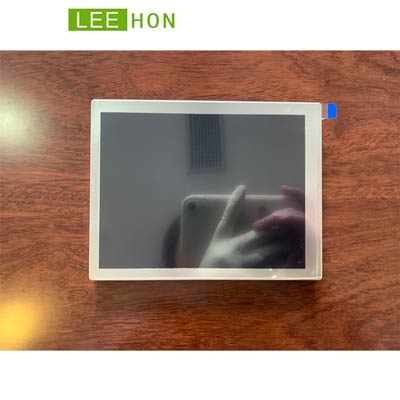

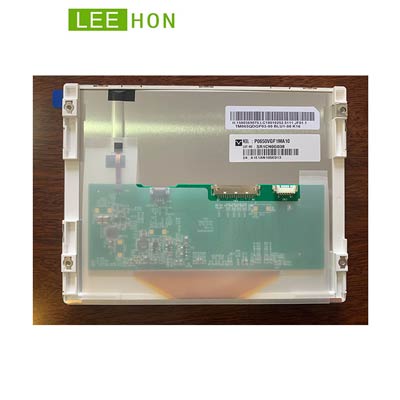

    • TIANMA 6.5 inch tft lcd panel P065VGF1MA10 with 640(RGB)x 480 VGA resolution , brightness 800 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
      Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
      High Brightness 6.5 inch 640x480 VGA TIANMA IPS TFT LCD Screen P065VGF1MA10 with 800 nit Sunlight Readable, Touchscreen And Controller board.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
    Customization solutions
