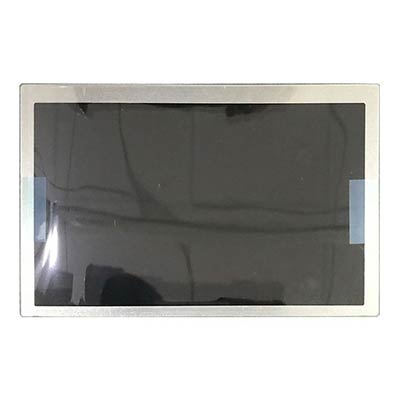

| Manufacturer | TIANMA |
| Model Name | P0700WVF1MA00 |
| Screen Size | 7 inch |
| Pixel Number | 800(RGB)×480, WVGA |
| Active Area(mm) | 154.40 x 91.44 (H×V) |
| Outline(mm） | 169.8 x 109.7 x 10.87 (H×V×D) |
| Pixel pitch(mm) | 0.1905 x 0.1905 (H×V) |
| Treatment |
AG
|
| Luminance | 1500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response | 25/35 (Typ.)(Tr/Td) ms |
| Work Mode | SFT , Normally black, Transmissive |
| Color Depth | 262K/16.7M , 70% NTSC |
| Backlight | WLED , 100K hours,without driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -40 ~ +90 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package | TIANMA Original Package |
