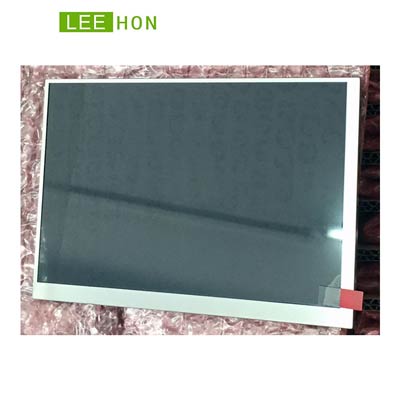

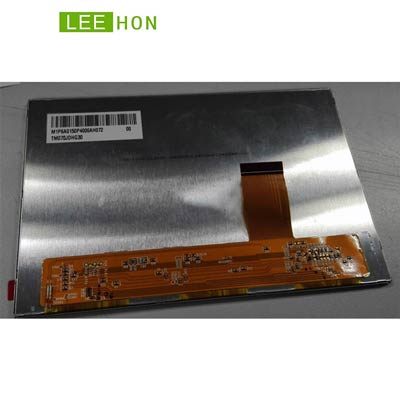

| Manufacturer | TIANMA |
| Model Name | TM070JDHG30 |
| Screen Size | 7 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 152.76 x 96.6 (H×V) |
| Outline(mm） |
161.0×107.0×3.35 (H×V×D)
|
|
Pixel Pitch(mm)
|
0.117 x 0.117 (H×V)
|
| Treatment |
HC
|
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (CR≥10) Left / Right/UP /Down |
| Response | 35 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED , 30K hours, without driver |
| Net Weight | 120g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 40 pins , FPC |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package | TIANMA original package |
