TM070RDH10-42

Your location: Home > Products > TIANMA > 7.0 >
  • Module No:TM070RDH10-42
  • Brand:TIANMA
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:400 cd/m²
  • Viewing angle:70/70/50/70 (Typ.)
  • Interface:Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM070RDH10-42
    Screen Size 7 inch
    Pixel Number 800(RGB)×480, WVGA
    Active Area(mm) 154.08 × 85.92mm (H×V)
    Outline(mm) 164.9 × 100 × 5.7 (H×V×D)
    Pixel pitch(mm)
    0.1926 × 0.179 mm (H×V)
    Treatment
    Anti Glare
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/50/70(CR≥10) Left / Right/UP /Down
    Response 25 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white, Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED , 20K hours, without driver
    Net Weight 160g
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package TIANMA original package;
    50 pcs/ctn;
    weight : 7.96Kgs;
    size : 530(L)mm x 350(W) x 250(H)mm

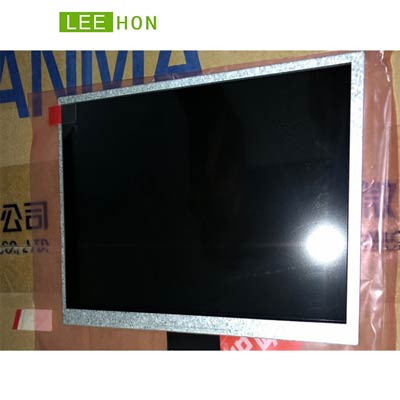

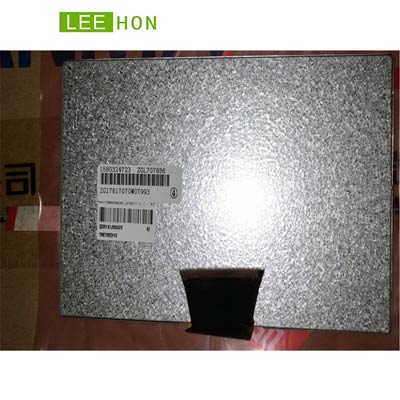

  • TIANMA 7 inch tft lcd panel TM070RDHG10-42 with 800(RGB)x480 WVGA resolution , brightness 400 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
    Original 7 inch 800x480 WVGA TIANMA TFT LCD Module For Industry, Digital photo frame TM070RDHG10-42 with 400 nit, Touchscreen and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
