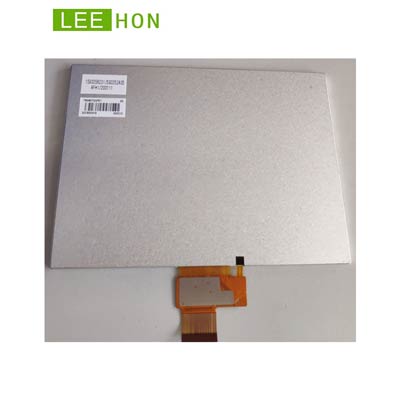

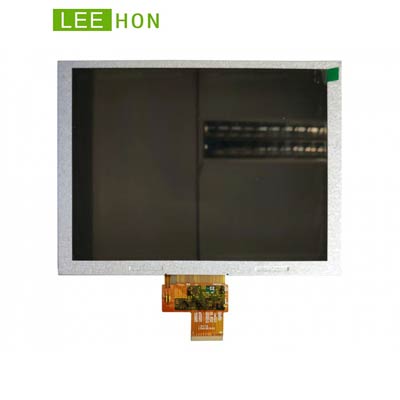

TM080TDGP01

Your location: Home > Products > TIANMA > 8.0 >
  • Module No:TM080TDGP01
  • Brand:TIANMA
  • Size:8 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:580 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 40 pins , FPC
  • CR:1200:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM080TDGP01
    Screen Size 8 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 162.05 x 121.54 (H×V)
    Outline(mm) 183.43 x 138.35 x 3.75 (H×V×D)
    Pixel pitch(mm) 0.158 x 0.158 (H×V)
    Treatment HC
    Luminance 580 cd/m² (Typ.)
    Contrast Ratio 1200 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
    Response 35 (Typ.)(Tr/Td) ms
    Work Mode SFT , Normally black, Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED , 30K hours,without driver
    Net Weight TBD
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins , FPC
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package TIANMA Original Package;
    48 pcs/ctn;
    weight : TBD;
    size : 544(L)mm x 365(W)mm x 250(H)mm

  • TIANMA 8 inch tft lcd panel TM080TDGP01 with 1024(RGB)x768 XGA resolution , brightness 580 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -20 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
    Original 8 inch 1024x768 XGA TIANMA TFT LCD IPS Panel TM080TDGP01 with 580 nit, LVDS FPC 40 pin, Touchscreen And Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
