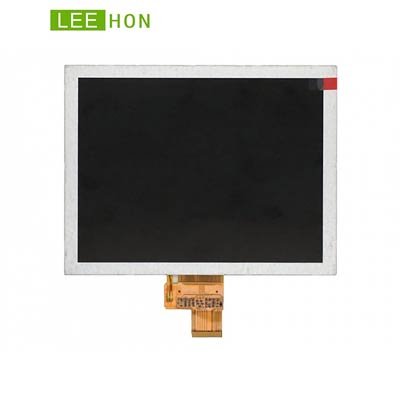

TM080TDHG01-42

Your location: Home > Products > TIANMA > 8.0 >
  • Module No:TM080TDHG01-42
  • Brand:TIANMA
  • Size:8 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:400 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 40 pins , FPC
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM080TDHG01-42
    Screen Size 8 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 162.05 x 121.54 (H×V)
    Outline(mm) 183.0 x 141.0 x 3.4 (H×V×D)
    Pixel pitch(mm) 0.158 x 0.158 (H×V)
    Treatment Clear
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
    Response 20 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white, Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED , 30K hours,without driver
    Net Weight 189g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 40 pins , FPC
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package TIANMA Original Package;
    48 pcs/carton;
    size : 544(L)mm x 365(W)mm x 250(H)mm

  • TIANMA 8 inch tft lcd panel TM080TDHGP01-42 with 1024(RGB)x768 XGA resolution , brightness 400 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -20 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
    Original 8 inch 1024x768 XGA TIANMA TFT LCD Panel For Industry TM080TDHGP01-42 with 400 nit, Touchscreen and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
