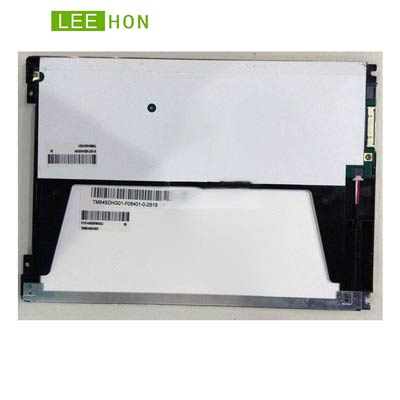

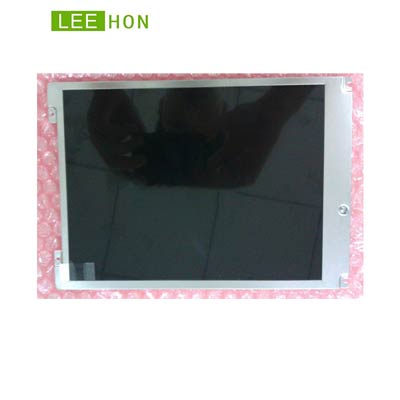

| Manufacturer | TIANMA |
| Model Name | TM084SDHG01-00 |
| Screen Size | 8.4 inch |
| Pixel Number | 800(RGB)×600 , SVGA |
| Active Area(mm) |
170.4 x 127.8 (H×V)
|
| Outline(mm） | 203.0 x 142.5 x 5.7 (H×V×D) |
|
Pixel Pitch(mm)
|
0.213 x 0.213 (H×V)
|
| Treatment |
Anti Glare
|
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 50K hours,with LED Driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA Original Package; 36 pcs/ctn; weight : TBD; size : 544(L)mm x 365(W)mm x 250(H)mm |
