| Manufacturer | TIANMA |

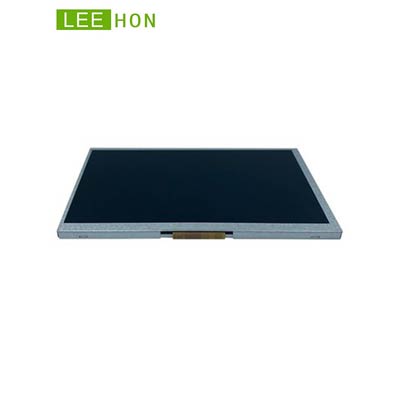

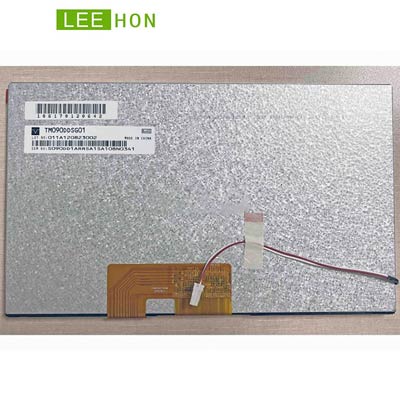

| Model Name | TM090DDSG01 |
| Screen Size | 9 inch |
| Pixel Number | 1024(RGB)×600 , WSVGA |
| Active Area(mm) |
196.608 x 114.15 (H×V)
|
| Outline(mm） | 211.1 x 126.5 x 5.7 (H×V×D) |
| Pixel Pitch(mm) | 0.192 x 0.19025 (H×V) |
| Treatment | Anti-Glare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70(CR≥10) Left / Right/UP /Down |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED, 10K hours,without driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , FPC , 40 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA original package; 50 pcs/ctn; size : 530(L)mm x 350(W)mm x 288(H)mm |
